KARL-STORZ 11278VSK/VSUK Flexible Video-Uretero-Renoscope set

Location：Home > Our Product > Endoscopysystem > Uro-Endoscope > KARL-STORZ 11278VSK/VSUK Flexible Video-Uretero-Renoscope set

KARL-STORZ 11278VSK/VSUK Flexible Video-Uretero-Renoscope set

Flexible Video-Uretero-Renoscope set

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

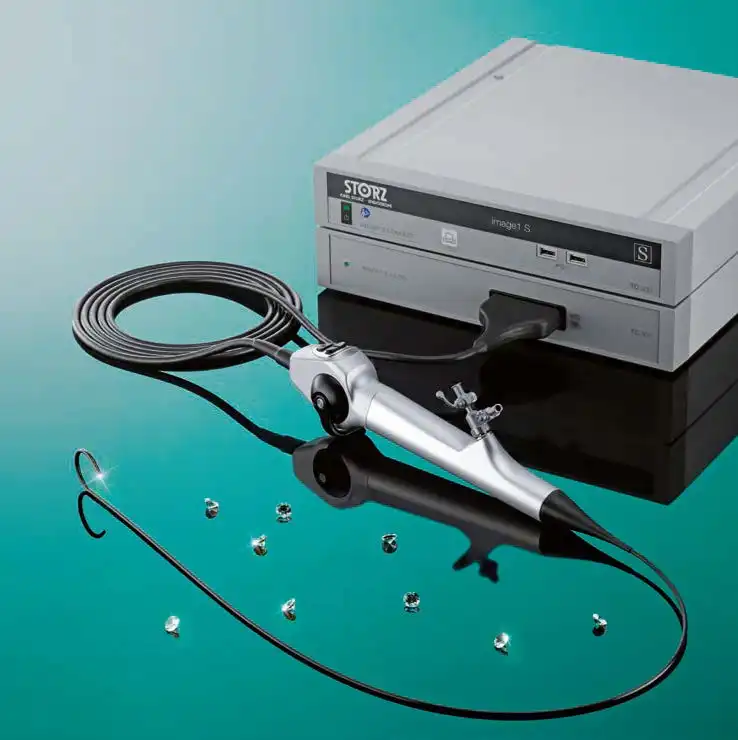

FLEX-XC–The New Dimension in Imaging

When imaging meets the greatest challenges KARL STORZ, as a pioneer of endoscopy, once again revolutionizes diagnostic and treatment options for the upper urinary tract. The new FLEX-XC allows the optimal display and successful treatment of both kidney stones and urothelial carcinoma.

Excellent image quality thanks to new camera chip technology
2.6x higher resolution
LED technology ensures homogenous illumination
Ergonomic handle due to integrated light technology
Minimal sheath circumference of 8.5 Fr.
Maximal deflection of 270° in either direction
Direct transmission of hand movements through to the distal end thanks to high torque stability
LASERITE ceramic insert prevents thermal damage

FLEX-XC

“The number of indications for uretero-renoscopy have significantly increased in recent years. This trend will become more prevalent in the future due to the distinct tendency towards minimally invasive treatments.
The key points for a successful treatment are:

Miniaturization of flexible video-uretero-renoscopes(chip-on-the-tip technology)
High maneuverability
High image quality
Efficient Holmium Laser (20 W) combined with a 230 μm laser fiber

Retrograde IntraRenal Surgery (RIRS) represents an achievement for endo-urologists and continues to evolve year after year into better management of patients with upper urinary tract diseases.”

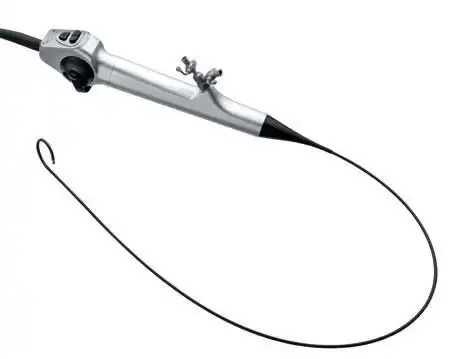

11278VS

Easier access to the kidney

High torque stability
1:1 implementation of hand movements through to the distal end
Extremely smooth control
Infinitely variable 270° deflection (up/down) for intuitive orientation and visualization of the entire renal collecting system
Integrated shock absorber system offers additional passive deflection components and enables easier access to all areas of the kidney

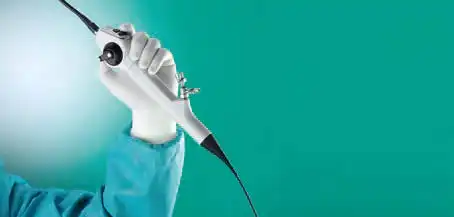

hand movements

Ergonomic use

Integrated LED light source for ease of use without an additional light cable
Lightweight
Extremely thin and steerable sheath
Use of instruments or laser fibers with little or no loss of angulation properties possible
Automatic focus

Ergonomic

Extremely slender and steerable

Minimal sheath circumference of only 8.4 Fr.
Atraumatic tip of 8.5 Fr.
Large working channel of 3.6 Fr.
LASERITE ceramic insert prevents thermal damage and extends service life

Large working channel

IMAGE1 S

Innovative Visualization Tools for Surgery and Diagnosis via Homogeneous Illumination and Contrast Enhancement

CLARA

A good endoscopic image features a clear display of details in both light and dark areas.
CLARA supports proper illumination in each part of the endoscopic image.

白光图像 CLARA

White light image CLARA

CHROMA

Surgical interventions are more efficient if clear differentiation of tissue is possible. CHROMA intensifies the color contrast in the image. Clearly visible structure surfaces are given added emphasis while retaining the natural color perception in the image.

CHROMA

White light image CHROMA

IMAGE1 S

Innovative Visualization Tools for Surgery and Diagnosis by Shifting the Color Spectrum

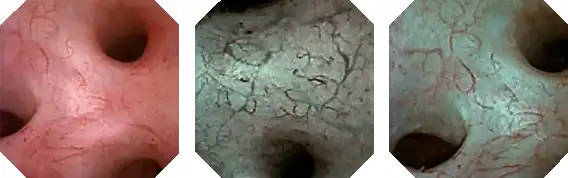

SPECTRA* allows recognition of the finest tissue structures. The bright red portions of the visible spectrum are filtered out and the remaining color portions are expanded. This makes it easier to differentiate between tissue types.
SPECTRA* offers two different modes so that the user can select the display that suits best.

SPECTRA

White light image SPECTRA A** SPECTRA B***

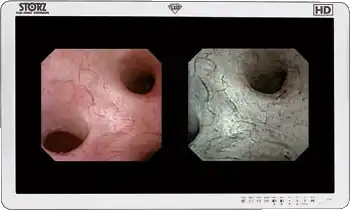

Side-by-side view
Simultaneous display of white light and IMAGE1 S™ images

The simultaneous display of a white light image and an image in the visualization mode enables a direct comparison of tissue structures on the monitor during surgery. Side-by-side view thus facilitates diagnosis.

Side-by-side view

* SPECTRA : Not for Sale in the U.S.
** SPECTRA A: Not for Sale in the U.S.
*** SPECTRA B: Not for Sale in the U.S.

Endoscopic images courtesy of: Professor Knoll, Clinic for Urology, Sindelfingen Clinics,Klinikverbund-Südwest, Sindelfingen, Germany

Flexible Video-Uretero-Renoscope
for access to the entire intrarenal collecting system

Intuitive Deflection Mechanism
You wouldn’t force someone who is left-handed to write with their right hand. Yet many flexible endoscopes impose exactly this type of limitation by forcing their operators to use counter-intuitive deflection mechanisms.
KARL STORZ answers this challenge by offering a choice of deflection mechanisms: either positive or contrapositive. With positive (or “logical”) deflection, a downward movement of the lever mechanism causes an upward movement of the endoscope tip, and vice versa. Reverse this orientation by choosing the contrapositive mechanism:a downward movement of the lever mechanism now causes a downward movement of the endoscope tip.

Either way, a simple flexion of the thumb on the deflection lever sweeps the endoscope tip into some of the most challenging areas of the anatomy,such as the lower pole calyces of thekidney.
Additionally, the intuitive design means you will never have to struggle to distinguish up from down – or down from up.

Choose the active tip deflection mechanism you are most comfortable with

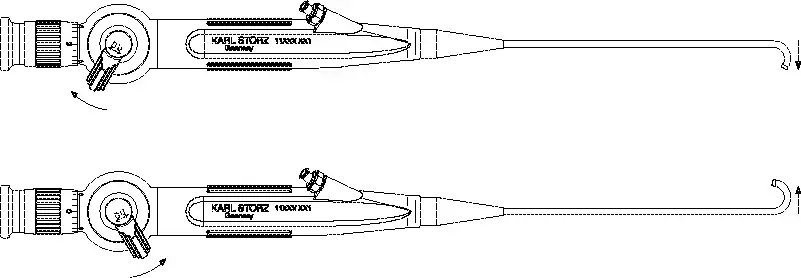

Positive deflection mechanism

正旋转机制

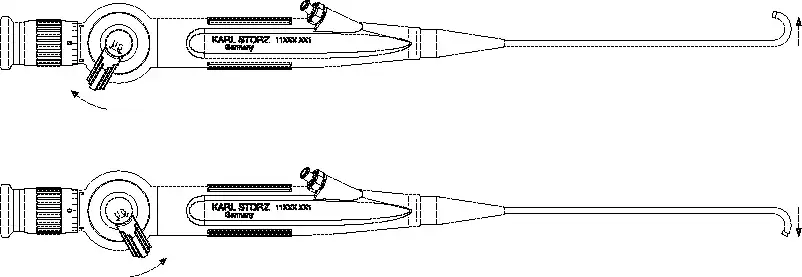

Contrapositive deflection mechanism

相对旋转机制

11278VSK Video Uretero-Renoscope FLEX-XC, Set, steerable,compatible with IMAGE1 S™, with positive deflection mechanism,defl ection of distal tip 270°/270°, direction of view 0°, angle of view 105°, working channel inner diameter 3.6 Fr., sheath size 8.5 Fr., working length 70 cm

11278VSUK Video Uretero-Renoscope FLEX-XC, Set, steerable,compatible with IMAGE1 S™, with contrapositive deflection mechanism, defl ection of distal tip 270°/270°, direction of view 0°,angle of view 105°, working channel inner diameter 3.6 Fr., sheath size 8.5 Fr., working length 70 cm

The following accessories are included in delivery:
13242XL Leakage Tester, with bulb and manometer

110931-50 Cleaning Brush, length 125 cm, brush diameter 1.7 mm, unsterile, for single use, package of 50
27677X Case
27014Y LUER-Adaptor, with seal
11025E Pressure Compensation Cap, for ventilation during gas and plasma sterilization

Part No.	Deflection of distal tip	Direction of view	Angle of view	Working length	Working channel inner diameter	Sheath size
11278 VS	Up/Dwon 270°	0°	90°	70 cm	3.6 Fr.	8.4 Fr.
11278 VSU	Up/Dwon 270°	0°	90°	70 cm	3.6 Fr.	8.4 Fr.
