Olympus CYF-V2/VA2/V2R Flexible Cysto-Nephro Videoscope

The CYF-V2 cystoscope is not only compatible with the EVIS EXERA II but also with the promising Narrow Band Imaging light-filtering technology. The large 2.2 mm working channel permits the use of all common EndoTherapy instruments.

Phone：+86-21-54286005

Resources

CYF-V2/VA2/V2R_Brochure_EN

Overview Specifications Dimensions

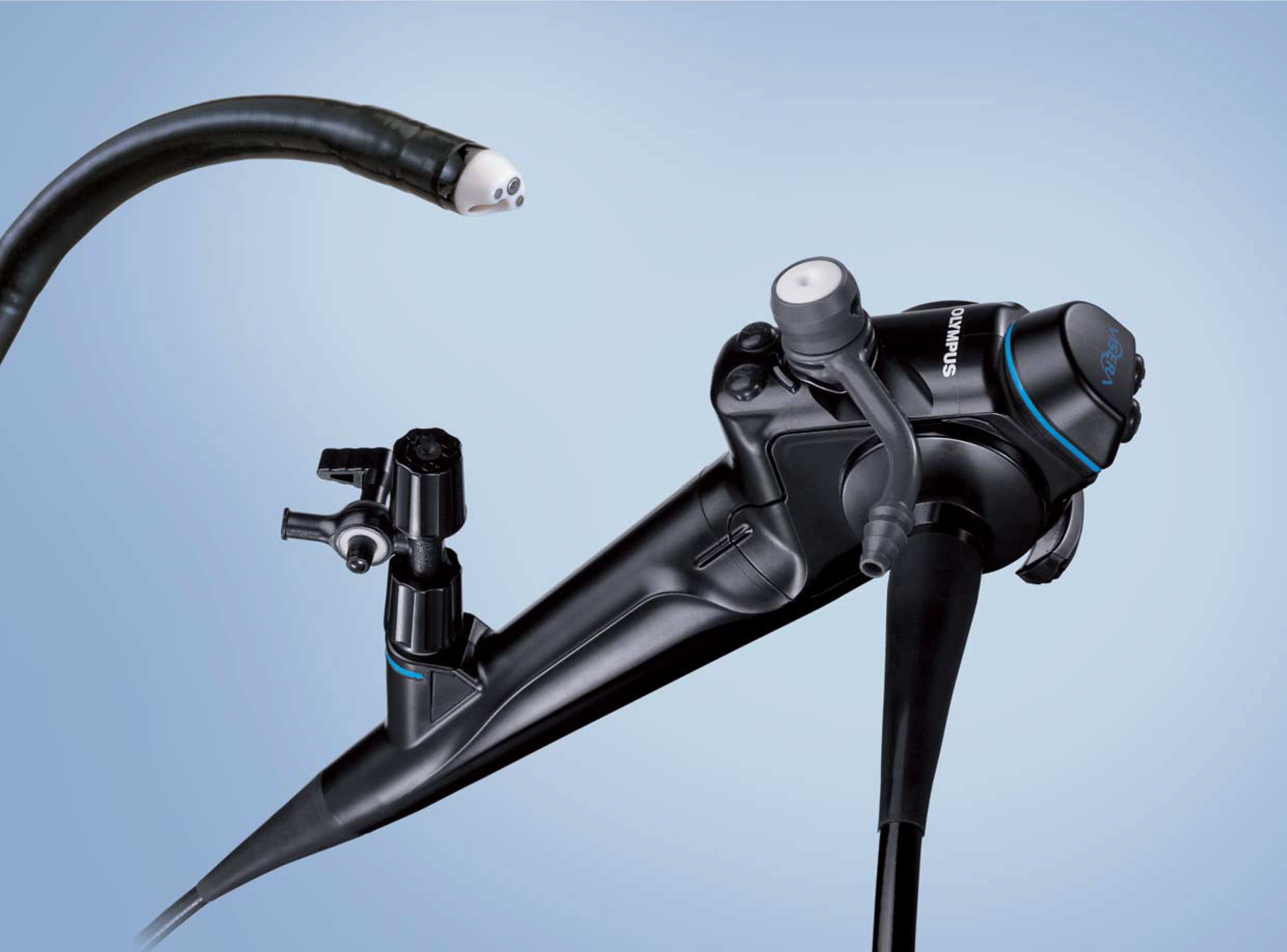

Cysto-Nephro Videoscope CYF-V2/VA2/V2R

Exceptionally Smooth Insertion with New Tip Design and Brilliant Videoscope Imaging

CYF-V2

Smooth Insertion with Streamlined Tip Design.
High-quality Videoscope Imaging.

To satisfy demand for less invasive and more efficient urologic endoscopes, the new Cysto-Nephro CYF-V2/VA2/V2R Videoscope from Olympus features an exclusive streamlined tip that we call the Evolutiontip. The streamlined, bullet-shaped design provides for ease of insertion with improved patient comfort. Advanced video imaging capability ensures outstanding observation capability with clear, vivid reproduction of internal tissues structures. The CYF-V2/VA2/V2R is ideal for all your needs——from simple office examinations to complex surgical procedures.

New Evolutiontip design achieves smooth insertion

The unique Evolutiontip design features a streamlined, tapered scope tip that significantly enhances insertability without compromising image quality and treatment capabilities. By aligning the angulation direction with the scope tip, this new design makes insertion smoother and helps keep patient discomfort to a minimum.

Frontal View

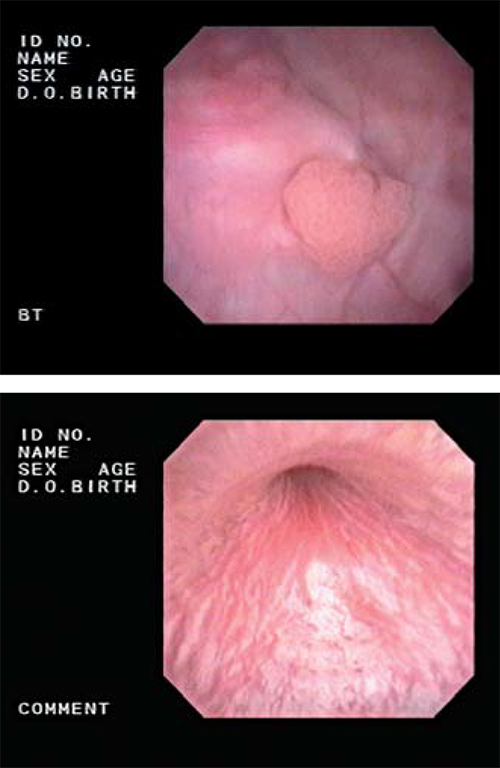

Clear color-consistent imaging with simultaneous multicolor CCD

Our powerful new Simultaneous Multicolor CCD captures stunning moiré-free video images with consistent, stable color reproduction, enabling you to clearly observe minute details of pathological changes.

simultaneous multicolor CCD

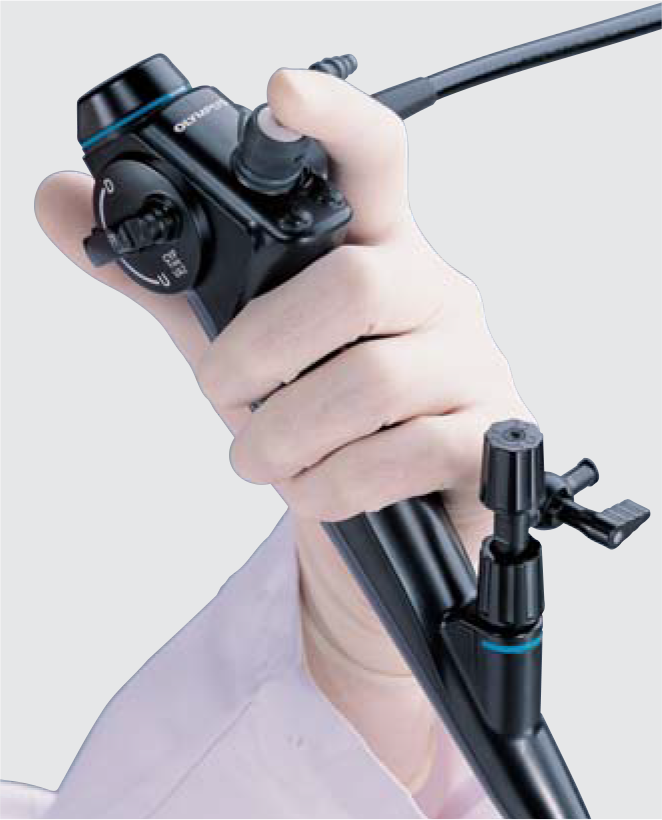

Enhanced operability with ergonomic grip and convenient remote control switches

Ergonomically designed and featuring four convenient remote control switches, the control section is comfortable to hold and has a natural grip, and thereby reduces operator fatigue during lengthy procedures.An innovative perfusion system in combination with the one-handed control suction function helps keep the field of view clear throughout the procedure.

ergonomic grip

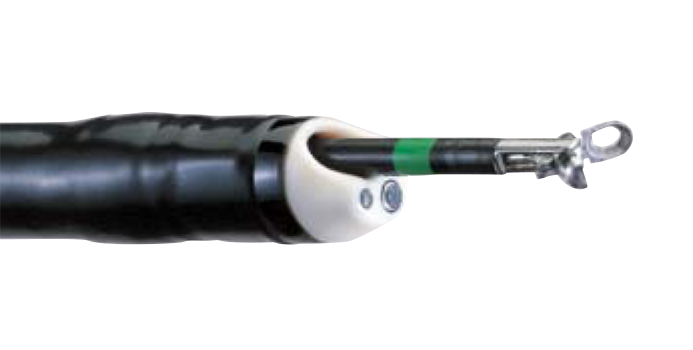

Compatible with a wide range of surgical procedures

The large ø2.2 mm channel allows you to use a wide range of highly versatile instruments.Electrosurgical treatments such as hemostasis and hot biopsies can also be performed.

ø2.2 mm channel

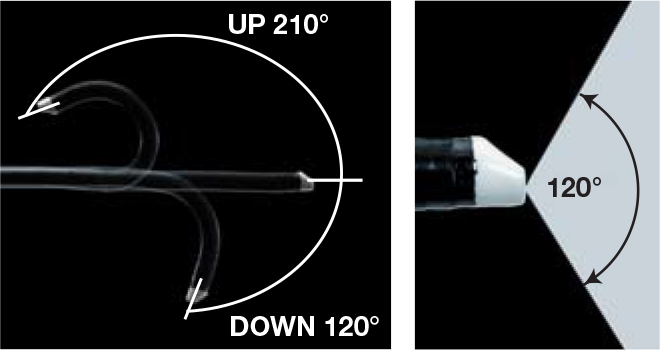

120° field of view, 210° up and 120° down angulation

A wide 120° field of view captures both ureteral openings, while flexible angulation (210° up and 120° down) facilitates smooth orientation in the urinary bladder and easier observation of the bladder neck.

field of view

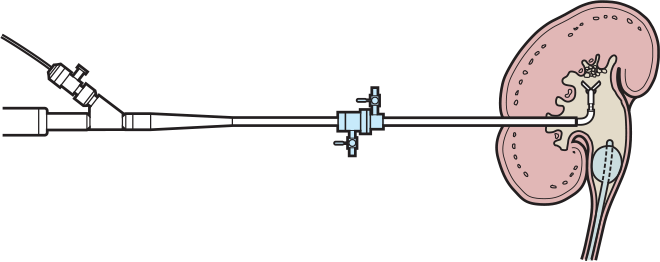

Can be used for examination/procedure in the kidney

As a Cysto-Nephro Videoscope, this scope can be used not only for bladder examinations, but also for kidney examinations and procedures.

bladder examinations

Optical System	Field of View	120˚
	Direction of View	Forward viewing
	Depth of Field	3 - 50 mm
Insertion Tube	Distal End Outer Diameter	12.9 Fr (4.8 mm)
	Insertion Tube Outer Diameter	16.2 Fr (5.4 mm)
	Working Length	380 mm
Instrument Channel	Inner Channel Diameter	6.6 Fr (2.2 mm)
Bending Section	Angulation Range	Up 210˚/Down 120˚
Total Length		650 mm
