Olympus URF-P7 Flexible Fiber Ureteroscope

Location：Home > Our Product > Endoscopysystem > Uro-Endoscope > Olympus URF-P7 Flexible Fiber Ureteroscope

Olympus URF-P7 Flexible Fiber Ureteroscope

The URF-P7 combines high image quality, a slim design, as well as high durability thanks to the newly developed Olympus’ DuraBend design. Together with the 4.9 Fr Evolution Tip and 7.95 Fr superslim insertion section, the URF-P7 supports smoother maneuverability in lithotripsy procedures.

Phone：+86-21-54286005

Resources

URF-P7_Brochure_EN

Overview Specifications Dimensions

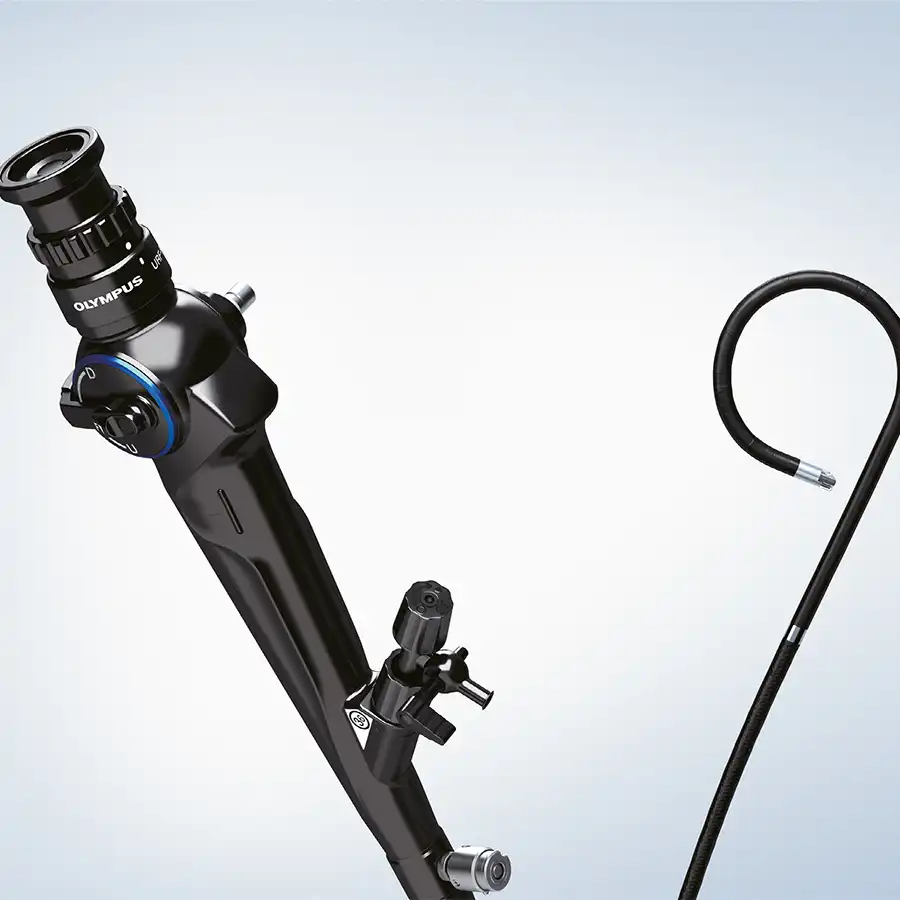

Flexible Fiber Ureterorenoscope URF-P7

High Durability in Superslim 7.95 Fr.

Easy access – the URF-P7 combines high image quality, a slim design, and high durability thanks to the newly developed DuraBend design from Olympus. Together with the 4.9 Fr. EvolutionTip and 7.95 Fr. superslim insertion section, the URF-P7 supports smoother maneuverability during lithotripsy procedures.

High Durability
Olympus’s unique insertion-tube design DuraBend uses materials in four different stiffness degrees (from extra stiff to soft) within the insertion section to reduce stress during insertion in the narrow renal pelvis by passive bending, which increases the durability of the URF-P7.

Superslim Shaft (7.95 Fr.)

Outer diameter of the insertion section is as thin as 7.95 Fr.
Ensures easy insertion and low invasive treatment in the upper ureter.
High transmission characteristics, supporting higher operability of the distal end with a light twist of the surgeon’s wrist.

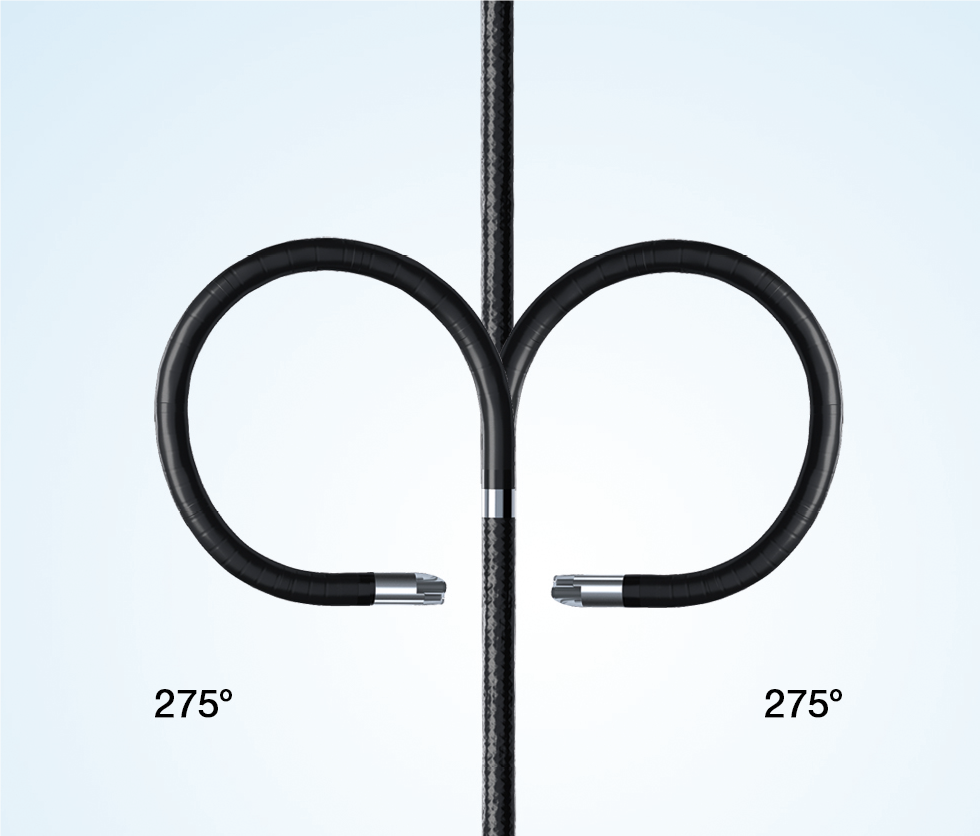

Wide Angulation Range

Angulation range of 275° up and down for orientation inside the renal pelvis
Smooth access, observation, and treatment in the upper, mid, and lower calyxes

弯曲角度

EvolutionTip
4.9 Fr EvolutionTip in a bullet-shaped design for atraumatic insertion.

Clear Visualization

High Image Quality
The moiré reduction filter provides a clear image without color blurring or moiré effect, thus allowing clear visualization of lesions, tissues, and stones. The URF-P7 provides high image quality in a slim 7.95 Fr. design.

Irrigation Flow
Even when a small access sheath with a small inner diameter is used, a sufficient irrigation flow is ensured,which enables a high-quality observation even in cases of stone dusting or bleeding.

Optical System	Field of view	90°
	Direction of view	Forward viewing
	Depth of field	2–50 mm
Insertion Tube	Distal end outer diameter	4.9 Fr. EvolutionTip
	Insertion tube outer diameter	7.95 Fr. (2.65 mm)
	Working length	670 mm
Instrument Channel	Inner channel diameter	3.6 Fr. (1.2 mm)
Bending Section	Angulation range	Up 275° Down 275°
Total Length		1050 mm
