Olympus HYF-XP Flexible Hysteroscope

The 3.1 mm diameter HYF-XP is a hysteroscope which enables easy, safe insertion without cervical dilation or anesthesia, and provides a 100° wide field of view, to ease intra-uterine pathology diagnosis.

Phone：+86-21-54286005

Resources

HYF-XP_Brochure_EN

Overview Specifications Dimensions

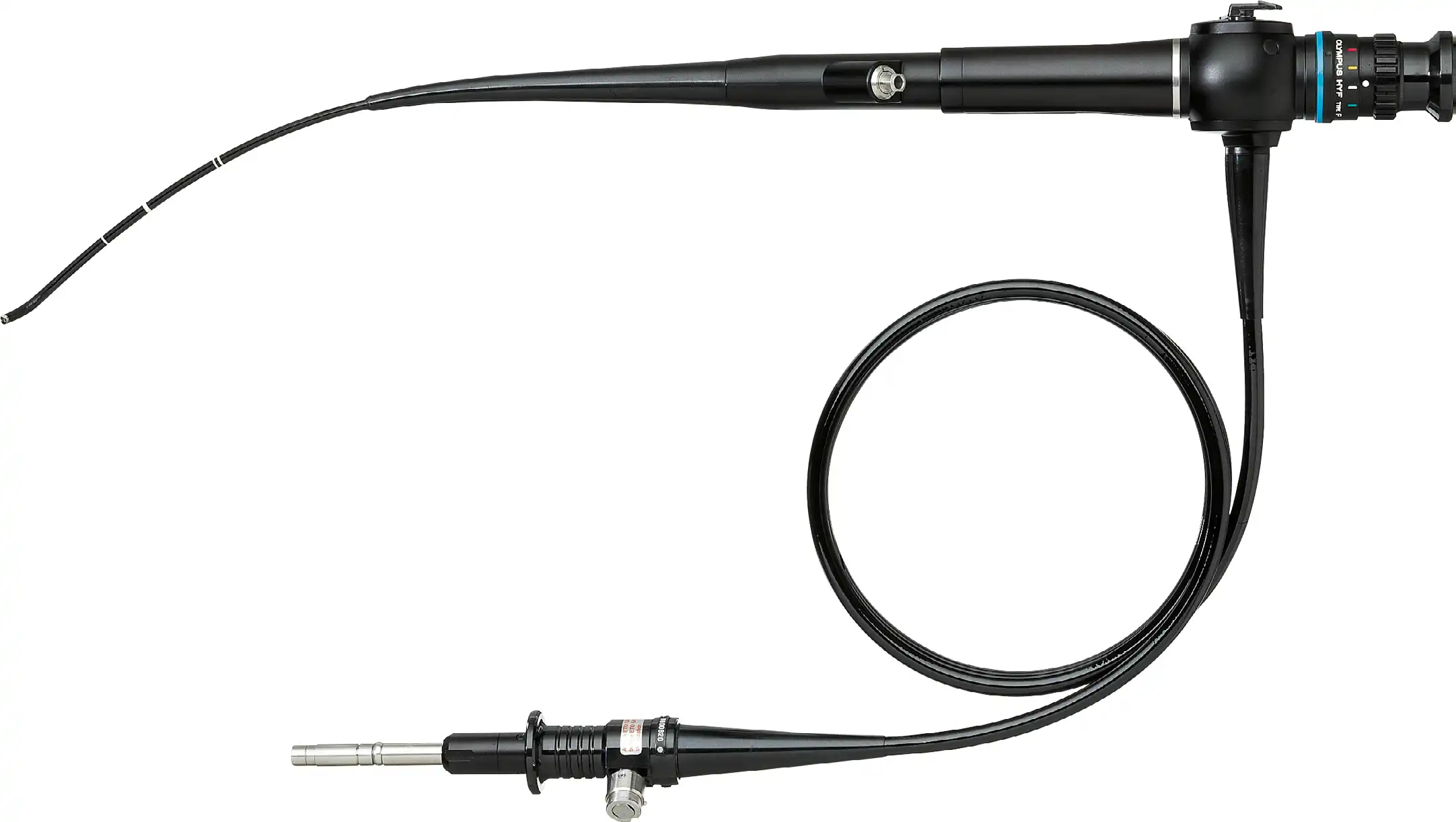

OES Flexible Hysteroscope HYF-XP

Ultra-Slim 3.1 mm Insertion Tube Enables Intra-Uterine Observation on an Outpatient Basis

HYF-XP

Office Diagnostic Hysteroscopy is Easy and Convenient.

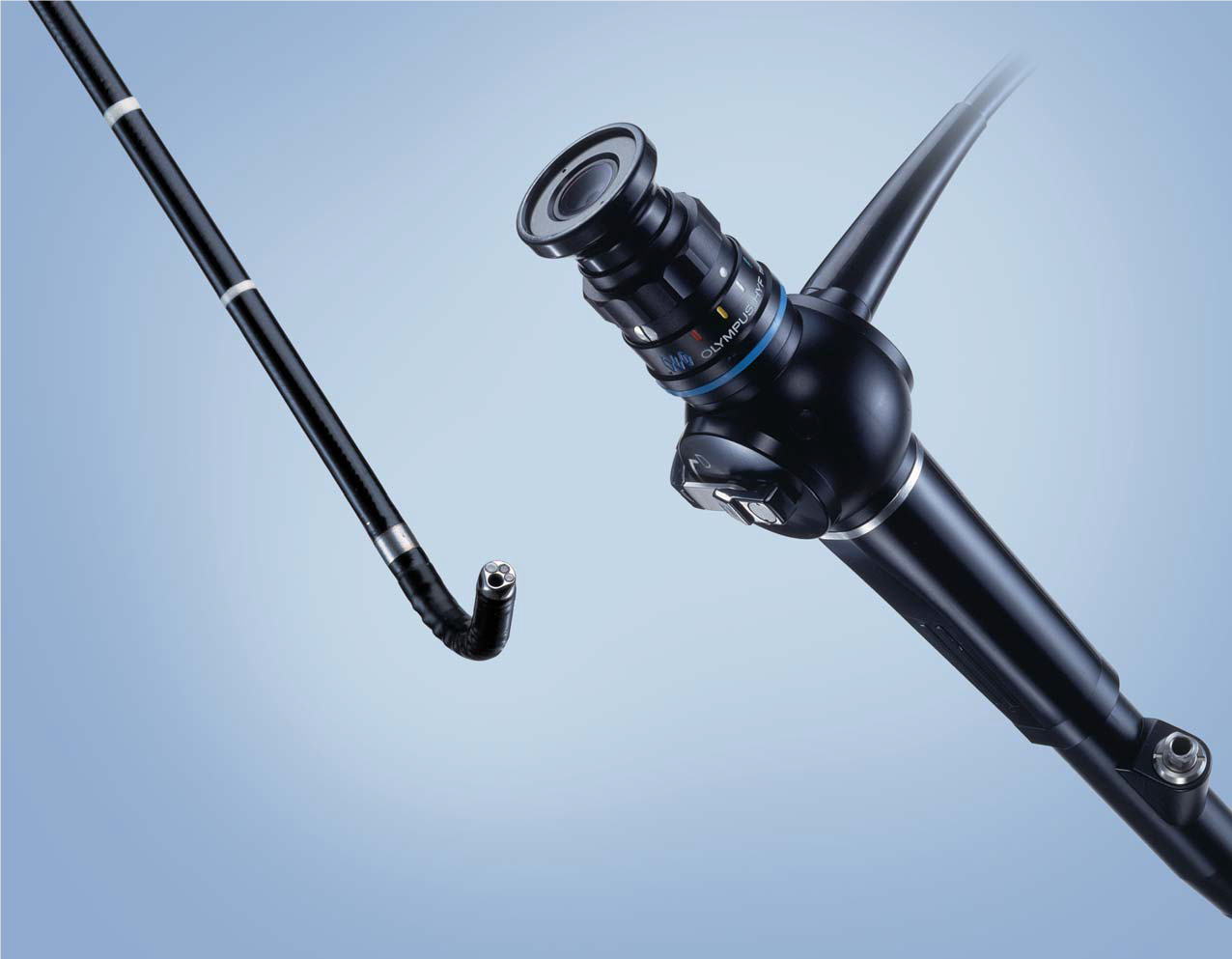

Introducing the OES Hysterofiberscope Olympus HYF-XP With Ultra-Slim 3.1 mm Insertion Tube and Wider, Brighter, Clearer Imaging.
The HYF-XP 3.1 mm minimally invasive flexible hysterofiberscope from Olympus offers exceptional imaging capability, flexibility, and enhanced patient comfort. With an insertion tube diameter of only 3.1 mm, the flexible HYF-XP is the slimmest hysteroscope in its class, enabling easy, safe insertion without cervical dilation or anesthesia. More importantly, the advanced lens and fiber technologies incorporated in the HYF-XP have made possible a larger field of view and exceptional image resolution for easier,observation of intrauterine pathology. When it comes to safe examinations, the choice has never been clearer:
The OES Hysterofiberscope HYF-XP from Olympus.

HYF-XP

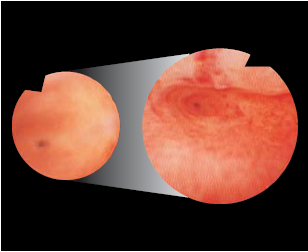

Bigger, Clearer Imaging
With a diameter 1.3 times larger than our previous models and a clearer, more detailed picture, the HYF-XP's lens not only provides doctors with an unobstructed view for observing intrauterine pathology, it may reduce eye fatigue.

Bigger, Clearer Imaging

Newly Developed Optical Diagnostic System

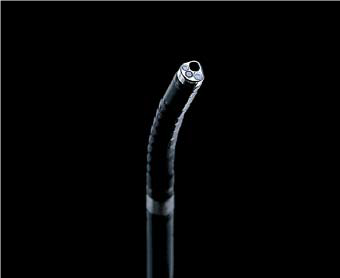

Ultra-Slim 3.1 mm Insertion Tube
With an insertion tube diameter of only 3.1 mm, the HYF-XP can be inserted safely into the endocervical canal without anesthesia or cervical dilation, which may minimize patient discomfort and trauma, and allowing efficient, immediate examinations on an outpatient basis.

Ultra-Slim 3.1 mm Insertion Tube

Exceptional Resolution and Brightness
The proprietary design of the optical system provides exceptional image resolution and brightness. Tissue pathology details become more identifiable and natural looking.

Exceptional Resolution and Brightness

Wider Field of View for Observation of Both Tubal Ostia
With its 100° wide field of view, the HYF-XP lets one easily view both tubal ostia simultaneously, which may enable one to perform procedures more efficiently.

Wider Field of View

Optimized Design for Greater Flexibility and Smoother Insertion

Optimized Flexibility for Smoother Insertion and Maneuvering
This scope inserts smoothly and easily.Even when the uterus is swollen by disease, the scope can be passed easily through the cervical canal without traumatizing the tissue.

Easy One-Handed Operation
The exclusive, Olympus-developed solid rubber pad on the grip responds instantly to tactile pressure, moving the insertion tube in response to your every move - back and forth, up and down,or twisting.

Wide Short-Scale Angulation Range of 100° Up and Down
With its wide, short-scale angulation range, the HYF - XP can be maneuvered within the narrow confines of the uterus.

Wide Short-Scale Angulation Range of 100° Up and Down

Standard Eyepiece
Designed for easy integration into existing video systems, the HYF-XP features a standard eyepiece that
allows it to be combined with a wide range of ancillary equipment. There's no need to replace or upgrade the equipment you already have.

Standard Eyepiece

Optical System	Field of View	100°
	Direction of View	Forward viewing
	Depth of Field	2 - 50 mm
Insertion Portion	Distal End Outer Diameter	3 mm
	Insertion Tube Outer Diameter	3.1 mm
	Working Length	240 mm
Instrument Channel	Channel Inner Diameter	1.2 mm
Bending Section	Angulation Range	Up 100° / Down 100°
Total Length		540 mm
