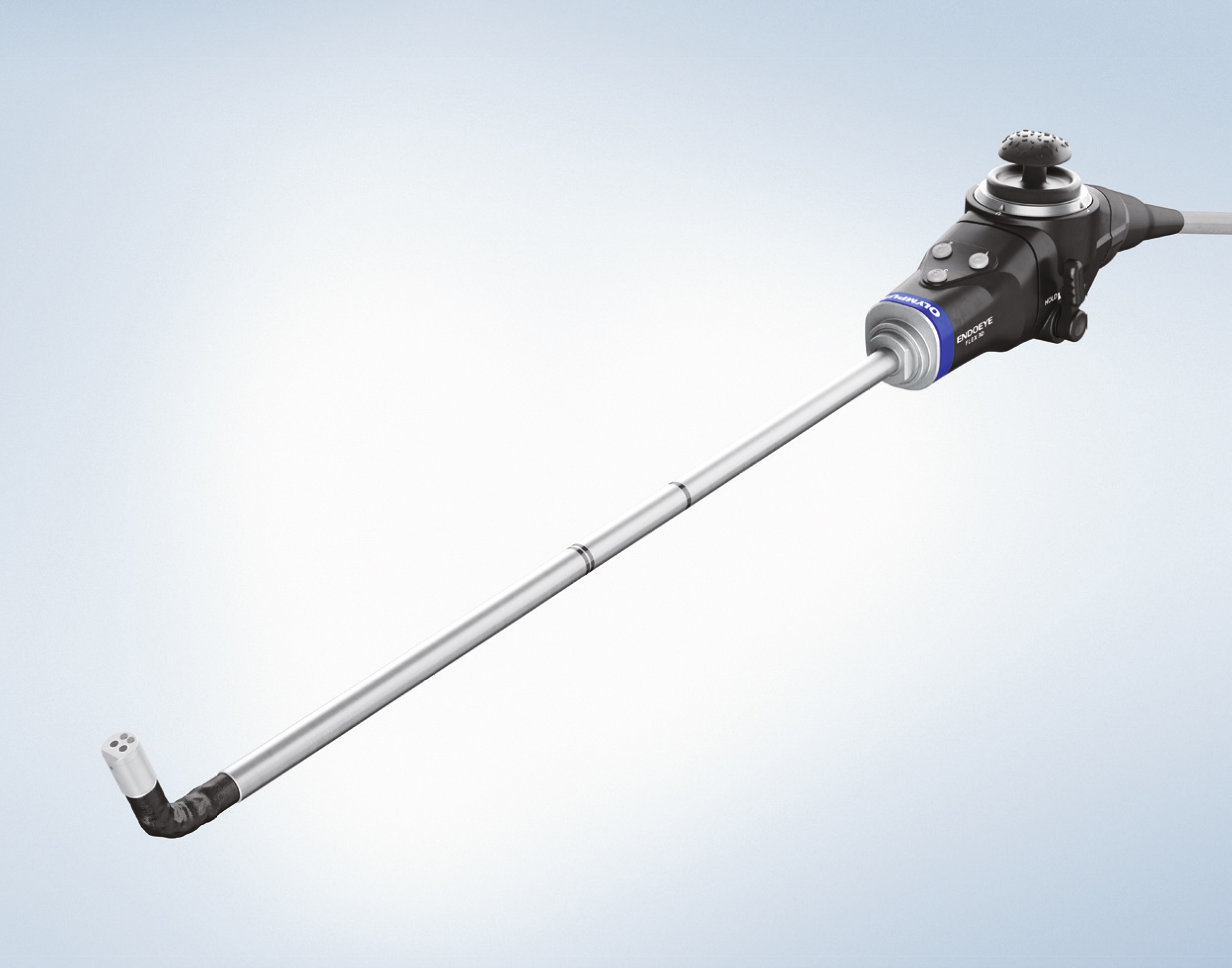

This surgical 3D videoscope contributes to safer and more efficient surgery with its tip curvature function and high-precision 3D images, contributing to the improvement of patients' quality of life (QOL) by enhancing the quality of laparoscopic surgery.
Phone：+86-21-54286005
LTF-S300-10-3D_Brochure_EN
Joystick Handle
· Intuitive and smooth angulation.
· Ergonomic design enables stable and customized handling with both hands or one hand.
Shortened Tip Length
· Better approachability inside narrow cavities.
New Hold-Lever Design
· Comfortable and smooth handling.
Focus-Free
· Greater depth of field.
· The need for manual focusing is eliminated.
| Optical System | Lens system | Dual-lens 3D optical structure |
| Field of View |
80° |
|
| Direction of View | 0° Forward viewing | |
| Depth of field |
18–100 mm |
|
| Insertion Tube | Outer Diameter |
10 mm |
| Working Length |
370 mm |
|
| Bending Section | Angulation range | Up/down 80°, right/left 60° |
| Weight | Actual Weight When in Use |
520 g |
| Sterilization | STERRAD, ETO, V-Pro | |
Accessories
MAJ-2266 3D adjustment cap
MAJ-1538 Sterilization cap
MH-507 Opening cleaning brush
