Olympus 3D Video Laparoscope WA50080A/WA50082A

The ENDOEYE 3D enables 3D procedures without compromises. The autoclavable, rigid videolaparoscopes provide comfortable, natural 3D perception with a wide field of view and realistic colors. It is the only 3D laparoscope with 30° image rotation while maintaining the horizon.

Phone：+86-21-54286005

Resources

ENDOEYE 3D 10 mm_Brochure_EN

Overview Specifications Dimensions

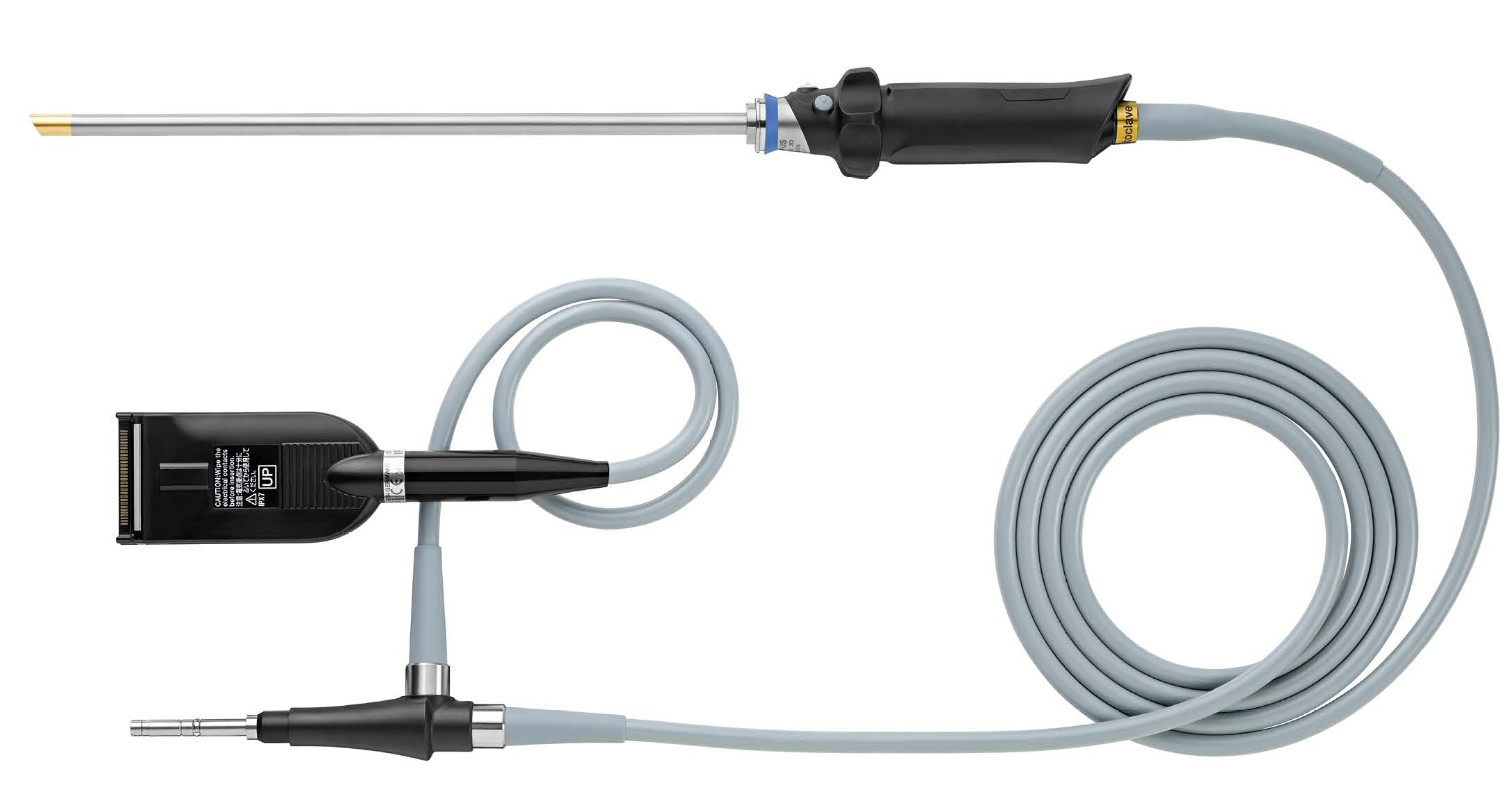

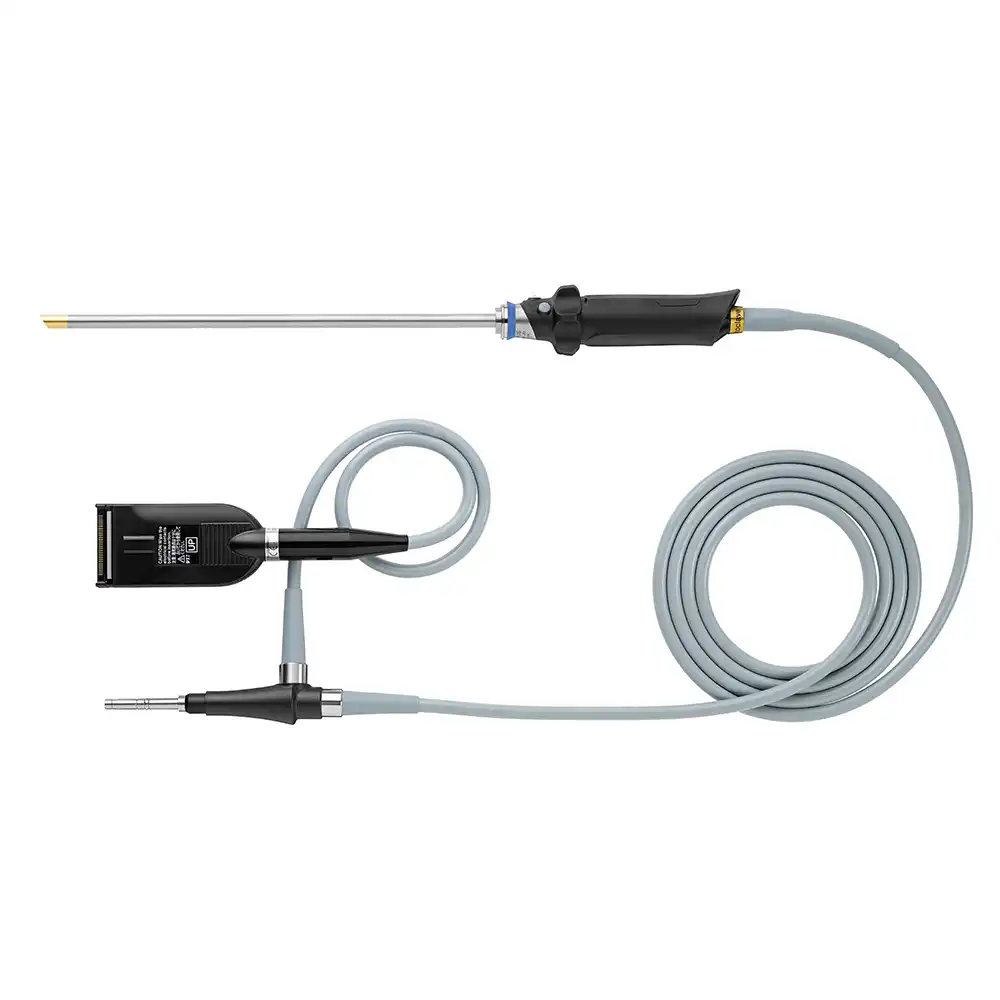

ENDOEYE 3D 10 mm Video Laparoscope

WA50080A WA50082A

3D-Image Rotation without Loss of Horizon
∙ Change the view direction while maintaining horizontal orientation of images, enabling a continuous critical view in 3D

Chip-on-the-Tip Technology
· Bright, clear, and natural 3D depth perception
· Focus-free handling; no manual focusing required

Autoclave Compatibility
· Reduced costs compared with other sterilization methods

Full Control During Surgery
· Three programmable remote control buttons

Plug and Play
· Simple to set up and easy to use

Ordering Information

Order Number	Outer Diameter	Direction of View	Field of View	Working Length	Max. Insertion Portion Width	Cable Length	Weight
WA50080A	10 mm	0°	67°	330 mm	10.07 mm	2780 mm	290g
WA50082A	10 mm	30°	67°	335 mm	10.20 mm	2780 mm	290g

Specifications

Reprocessing Methods	Autoclavable, ETO, STERRAD, washer-disinfector
Ambient Conditions	Operating conditions	Ambient temperature	10 - 35°C(50 - 95°F)
		Relative humidity	30 - 85%
	Storage conditions	Temperature	10 - 40°C(50 - 104°F)
		Relative humidity	30 - 75%
	Transport conditions	Temperature	−47 - 70°C(−53 - 158°F)
		Relative humidity	10 - 95%
Classification of ME Equipment and ME Systems	Protection against electric shock: Classification of applied parts		Type BF
	Protection against harmful ingress of water or particulate matter		IPX7
