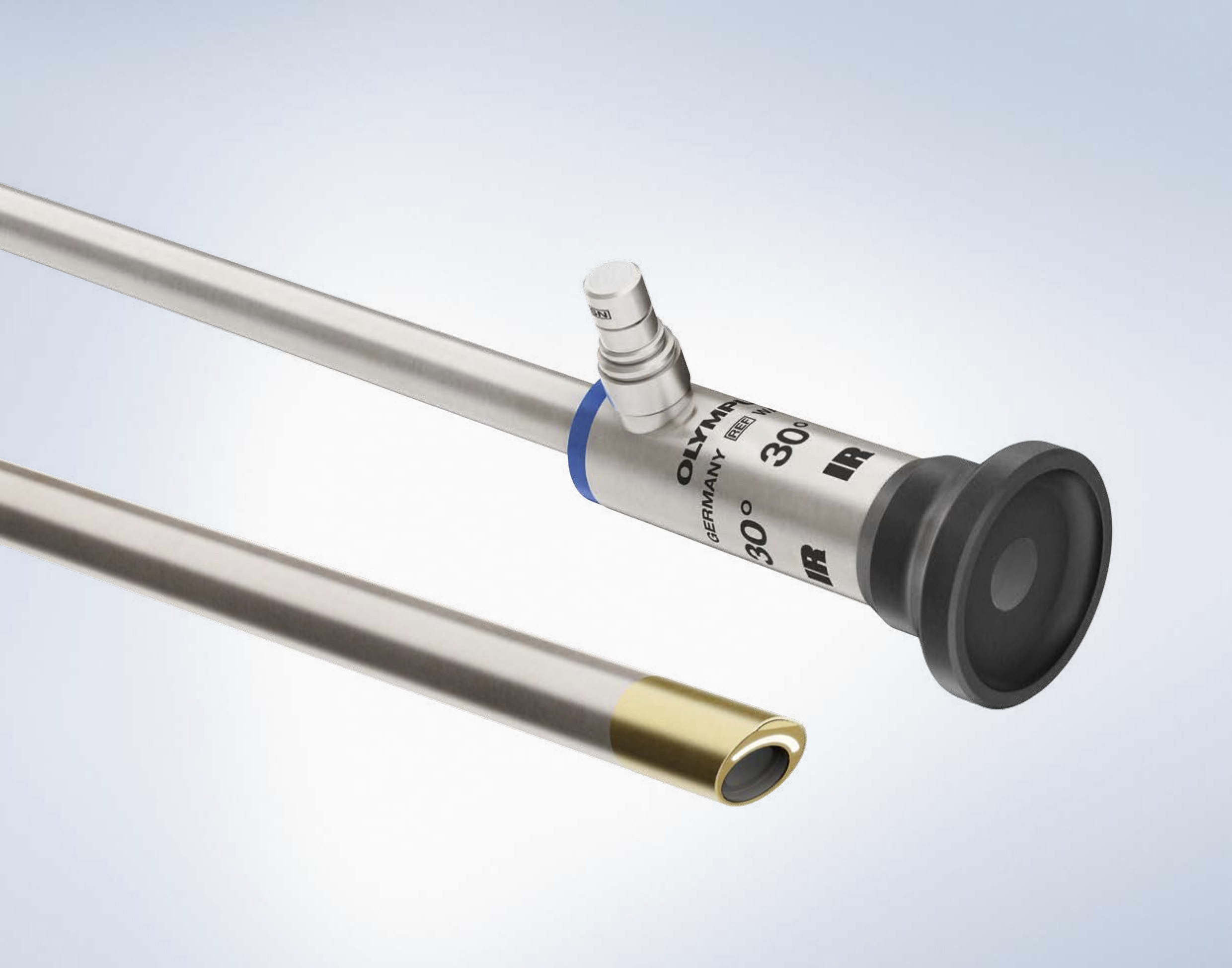

The new IR telescopes are optimally designed for the VISERA ELITE II – IR system. It provides clear images in IR modes and white light. In the IR overlay mode, the ED glass provides exceptional, clear backlight illumination.
Phone：+86-21-54286005
Olympus 10 mm IR Telescopes_Brochure_EN
ED Glass Lens
Incorporates design elements for IR imaging (e.g. lens coating)
Wide Field of View
Autoclavable
* Compared to 10 mm endoscope with 75° field of view
|
Order Number |
Outer Diameter |
Direction of View |
Field of View |
Working Length |
Max. Insertion Portion Width |
|
WAIR100A |
10 mm |
0° |
88° |
316.4 mm |
10.2 mm |
|
WAIR130A |
10 mm |
30° |
88° |
318.6 mm |
10.2 mm |
