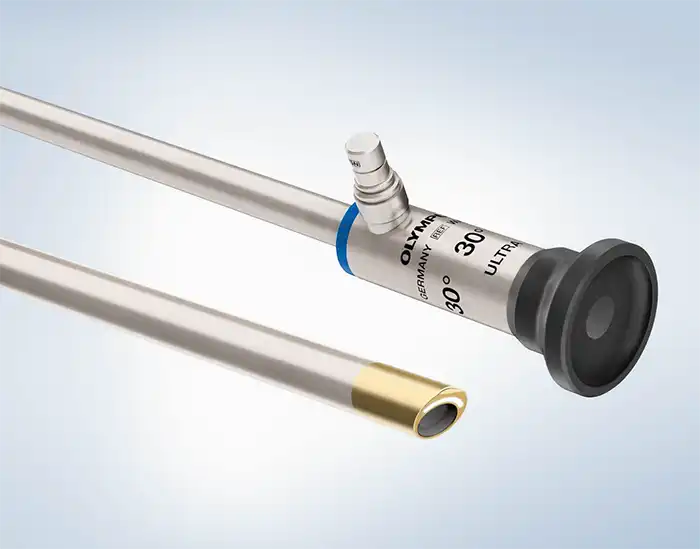

Olympus 4K ULTRA Telescopes WA4KL130/100/145/530/500/545

The ULTRA Telescopes with the 4K technology allow for improved laparoscopic visibility with optimized high-resolution imaging through ED glass lenses and distortion-free images.

Phone：+86-21-54286005

Resources

5.4 and 10 mm 4K ULTRA Telescopes_Brochure_EN

Overview Specifications Dimensions

5.4 and 10 mm 4K ULTRA Telescopes

Optimized for a High Resolution Image.

ULTRA_4K_5.4mm-10mm

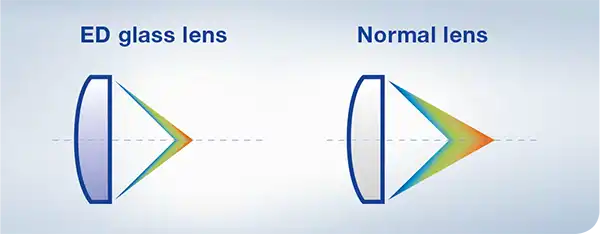

ED Glass Lenses – Razor-Sharp Images

Optimized for high-resolution imaging
∙ High contrast at high spatial frequencies
∙ Comparable working length for 5.4 mm and 10 mm

ED Glass Lenses

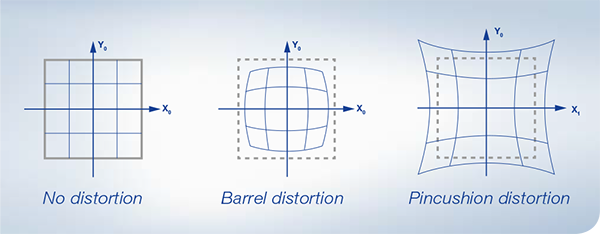

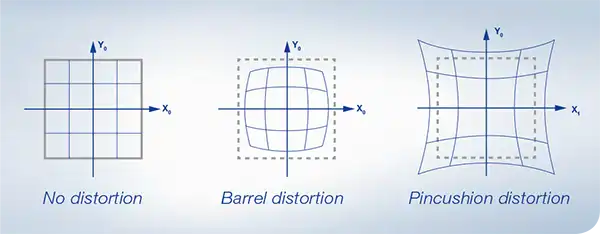

Distortion-Free Images (5.4 mm telescope)

Clear images even at the edges
No barrel or pincushion distortion (using 5.4 mm telescope)

Distortion-Free Images

Wide Field of View

Visual field increased by 20% compared to conventional HD endoscopes*

Compatibility

Mechanical compatibility to current generations of camera heads and light guide cables by Olympus and other manufacturers that comply with DIN58105.

Good Illumination Even at the Edges

The ULTRA telescopes have a homogeneous light distribution in the peripheral region (both 5.4 mm and 10 mm)

Full Autoclavability

Reduced waste due to full reusability of the telescopes

* 5.4mm ULTRA telescope compared to endoscope with 70° field of view and 10mm ULTRA telescope compared to endoscope with 75° field of view.

Ordering Information

Order Number	Outer Diameter	Direction of View (DOV)	Working Length	Max. Insertion Portion Width
WA4KL500	5.4 mm	0°	315.3 ± 0.5 mm	5.45 mm
WA4KL530	5.4 mm	30°	315.5 ± 1.5 mm	5.45 mm
WA4KL545	5.4 mm	45°	315.5 ± 1.5 mm	5.45 mm
WA4KL100	10 mm	0°	315.9 ± 0.5 mm	10.2 mm
WA4KL130	10 mm	30°	317.1 ± 1.5 mm	10.2 mm
WA4KL145	10 mm	45°	317.7 ± 1.5 mm	10.2 mm

Specifications

Operating Conditions	Ambient temperature	10 - 35°C(50 - 95°F)
	Relative humidity	30 - 85%
	Atmospheric pressure	700 - 1060 hPa
Storage Conditions	Temperature	10 - 40°C(50 - 104°F)
Storage Conditions	Relative humidity	30 - 85%
Transport Conditions	Temperature	-40 - 70°C(-40 - 158°F)
Transport Conditions	Relative humidity	10 - 95%
