Olympus OEV321UH 32-inch 4K UHD LCD monitor

Location：Home > Our Product > Endoscopysystem > Monitor > Olympus OEV321UH 32-inch 4K UHD LCD monitor

Olympus OEV321UH 32-inch 4K UHD LCD monitor

This 32-inch LCD monitor with Ultra High Definition picture quality brings out the full potential of Olympus endoscopy systems. The 4K upscaling function accommodates existing HD imaging systems.

Phone：+86-21-54286005

Resources

OEV321UH_Brochure_EN

Overview Specifications Dimensions

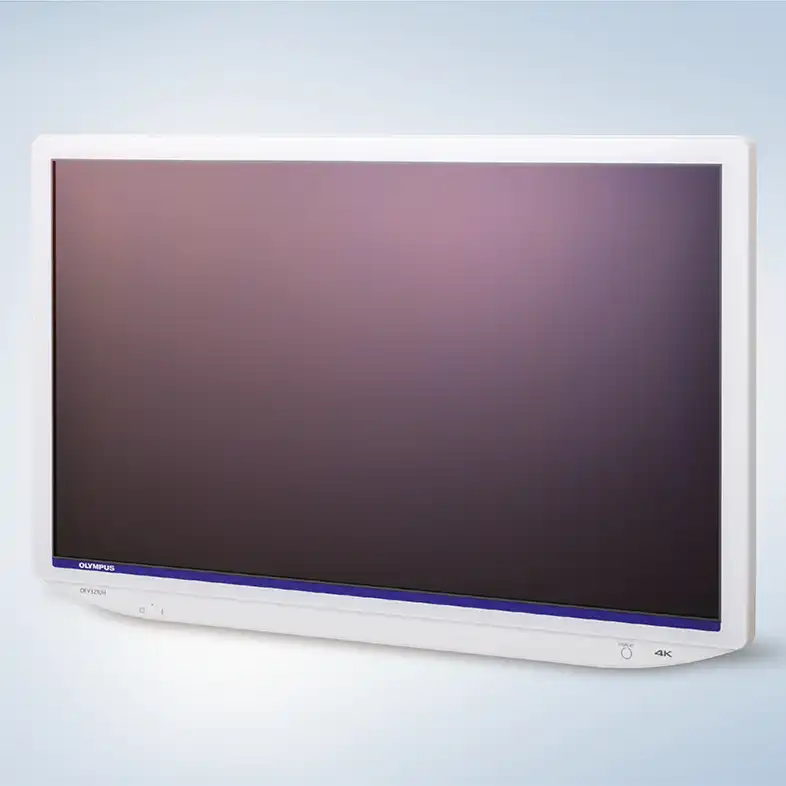

Olympus OEV321UH

32" 4K UHD LCD monitor for endoscopy system

High-Performance Display
This 32-inch LCD monitor with Ultra High Definition picture quality brings out the full potential of Olympus endoscopy systems. The 4K upscaling function accommodates existing HD imaging systems.

A.I.M.E.™ Technology
The Advanced Image Multiple Enhancer (A.I.M.E.™)produces sharp, vivid images by enhancing both structure and color to support a more detailed observation.

Versatile Signal Routing
The OEV321UH allows 4K/HD video signals to be routed via a single 12G-SDI output. Various input and output terminals offer impressive connectivity suited to user requirements.

Multiple Display Modes
Picture-in-Picture (PIP) and Picture-out-Picture (POP) display modes offer optimal support during procedures.

Convenient CLONE OUT Functionality
Users are able to duplicate the 4K/HD video signals as displayed on the screen, including PIP/POP to a second monitor or recording device.

User-Friendly Design
The front panel is easy to clean thanks to its flat surface including the control buttons. Due to downward-facing connectors, a detachable cable cover and a quick access window, cabling of this monitor is simplified.

Display	Display Size		31.5 in (800.8 mm)
	Panel Technology		TFT Active Matrix LCD
	Resolution / Aspect Ratio		3840 × 2160 / 16:9
	Luminance		450 cd/m²
	Contrast		1000:1
	Color Space		BT.2020 / BT.709
	Viewing Angle		178°/178°
	Colors		1.07 billion
	Backlight		LED
Functions	Image Enhancement		A.I.M.E.™
	Multiple Image Display		PIP/POP
	Flip Pattern		Rotation
Input Output	4K	in	12G-SDI ×2*, Display Port ×1, HDMI ×1
		out	12G-SDI ×2*
	2K	in	3G-SDI ×1, DVI-D x 1
		out	3G-SDI ×1
	CLONE OUT / AUX IN		12G-SDI ×1* / Any port
General	Power Supply		AC 100V-240V, 50/60Hz, 1.7A-0.8A DC supplied by the optional AC adaptor AC-300MD
	Size		753.9 × 476.3 × 79.2 mm
	Weight		11.8 kg
	Remote		RS-232C connector D-sub 9 pin
