R. Wolf 8650.414/8650.415 Cysto-Urethroscope 4 mm

Cysto-Urethroscope 8650,for telescope 4 mm, 0°, 12°, 30°, 70° and adaptors

Phone：+86-21-54286005

Resources

8650.414_8650.415_Brochure_EN

Richard-Wolf_Cysto-Urethroscope_Catalog_EN

Overview Specifications Dimensions

Cysto-Urethroscope 8650 E-line
for telescope 4 mm, 0°, 12°, 30°, 70° and adaptors

Sheaths and obturators						Adaptors

Sheath incl. obturator	Sheath single	Obturator single	Fr.	Colour code	Capacity(Fr.)	only for examination	1 Instrument port	2 Instrument ports

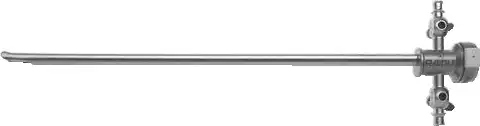

8650.0141	8650.0145	8650.0147	16	yellow	1x5*	8650.254	8650.264	8650.284
8650.0241	8650.0245	8650.0247	17.5	green	1x5/2x4
8650.0341	8650.0345	8650.0347	19.5	red	1x7/2x5
8650.0441	8650.0445	8650.0447	21	blue	1x10/2x6
8650.0541	8650.0545	8650.0547	23	white	1x12/2x7
8650.0641	8650.0645	8650.0647	25	black	1x15

*for urethroscopy (cystoscopy for diagnosis only with adaptor 8650.254)

Ø	Viewing direction	Types	PANOVIEW telescopes
4 mm	0°	8650.414 / PDD blue 8650.514
	12°	8654.431 / PDD blue 8650.531
	30°	8654.422 / PDD blue 8654.522
	70°	8650.415 / PDD blue 8650.515

Accessories:
Fiber light cable set, Ø 2.5 mm, 2.3 m long consisting of:
Fiber light cable (80662523), adapter projector side (8095.07) and
adapter endoscope side (809509) ............................... 806625231

For sterilising: Telescope reprocessing basket, capacity
1 telescope.................................................................. 38021.111
