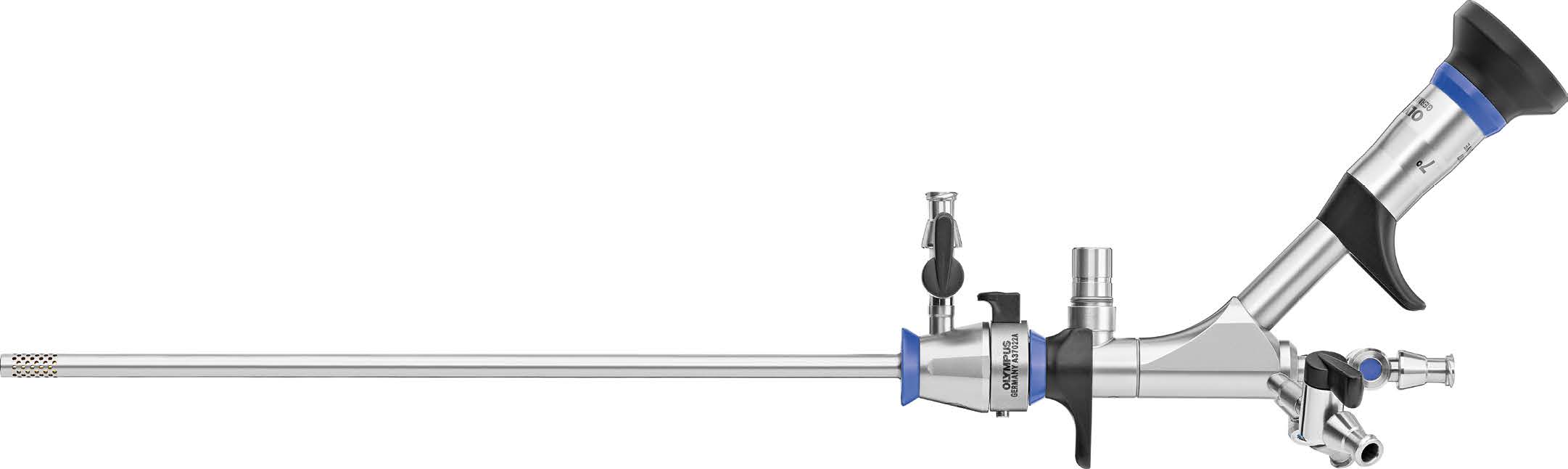

Olympus Mini Nephroscope A37025A

The Mini Nephroscope 15 Fr is the versatile choice for percutaneous nephroscopy (PCN) in both pediatric and adult patients. It can be used as a single- or continuous-flow system and has a 7.5 Fr oval working channel to accommodate instruments up to 6 Fr.

Phone：+86-21-54286005

Resources

A37025A_Brochure_EN

Overview Specifications Dimensions

Olympus Mini-Nephroscope

Single, continuous and open flow configurations available
18 Fr. and 20 Fr. sheath that enables a suction effect
Large 7.5 Fr. oval channel, straight
Up to 6 Fr. passage
Pediatric and adult mini-nephroscope
Stainless steel

Mini-Nephroscope

OP Telescope

A37025A	OP telescope, 7°, 11 Fr. x 220 mm, 7.5 Fr. channel, angled ocular OP telescopes are delivered with instrument tray A05961A. Up to 6 Fr. passage
A0460	Light-guide adapter, for OES 4000 light-guide cables
O0332	Light-guide adapter, for Wolf light-guide cables
WA37025B	Adapter, meatus stopper, for A37025A
WA03300A	Light-guide cable, 2.8 mm, 3 m, CF type
A0387	Sealing cap, 0.7 mm, black, 10 pcs. Reusable/ non-sterile

Nephroscope Sheath

A37022A	Outer sheath, 15.9 Fr., fixed, includes guiding tube WA37031A
WA2PS18S	Sheath, 18 Fr., 130 mm
WA2PS18L	Sheath, 18 Fr., 130 mm
WA2PS20S	Sheath, 20 Fr., 130 mm
WA2PS20L	Sheath, 20 Fr., 160 mm

Mini-PCNL Dilators

WA2PD18A	Dilator, 15 Fr., for 18 Fr. sheath, 390 mm single-step, dual lumen
WA2PD20A	Dilator, 17 Fr., for 20 Fr. sheath, 390 mm single-step, dual lumen

Bougie Set

WA33027A	Bougie tubes, set 9 – 28 Fr.
WA37031A	Guiding tube, for WA33027A Adapts bougie tubes WA33027A to nephroscope sheath A37022A.

Semi-Flexible Hand Instruments

A37015A	Grasping forceps, 5 Fr. x 340 mm, semi-flexible
A37016A	Biopsy forceps, 5 Fr. x 340 mm, semi-flexible
WA2PG05A	Grasping forceps, three-nail, 5 Fr. x 340 mm

HF Electrode

A37020A	HF electrode, button, 3 Fr. x 370 mm, flexible Reusable/ non-sterile
A0335.1	HF cable, monopolar Compatible HF units: ESG-400 ESG-410 Valleylab (new)
