Olympus CH-S200-08-LB HD Camera Head

The CH-S200-08-LB pendulum camera head provides very high image quality by incorporating HD-NBI and is ideal for the treatment of bladder cancer. It is ergonomically designed to fit a surgeon's hand for procedures and enables comfort and accuracy even during long procedures. In addition, it is also compatible with a broad range of reprocessing methods.

Phone：+86-21-54286005

Resources

CH-S200-08-LB_Brochure_EN

Overview Specifications Dimensions

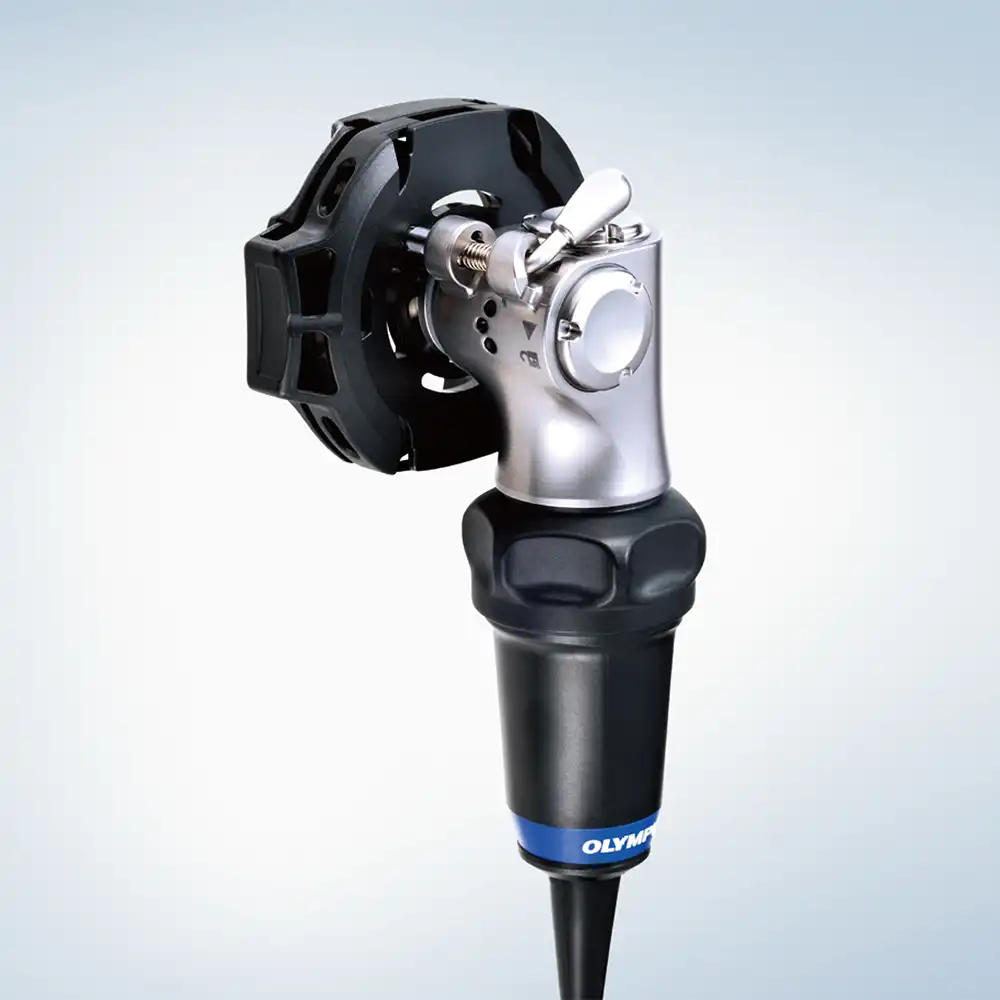

VISERA ELITE II CH-S200-08-LB Pendulum Camera Head

HD lightweight pendulum camera head with NBI

Lightweight body for better ease of use and comfortable handling
This small, lightweight,pendulum-style camera head is ergonomically designed to fit a surgeon’s hand for procedures.

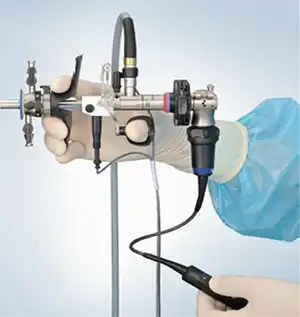

Lightweight body

High Definition Image
The CH-200-08-LB camera head can capture much higher definition images than SD camera heads, which helps to improve diagnostic and therapeutic capabilities.

Compatibility with a Broad Range of Reprocessing Methods
The CH-S200-08-LB camera head is compatible with the washer-disinfector (WD, ISO 15883-1, -2) and lowtemperature hydrogen peroxide sterilization (Steris V-PRO® maX and STERRAD® 100S/NX/100NX).

Improved NBI Performance with VISERA ELITE II
Narrow Band Imaging (NBI) works by filtering white light into specific light wavelengths that are absorbed by hemoglobin, providing enhanced visualization of capillary networks and mucosal morphology.
By using the VISERA ELITE II system, this camera head produces 20% brighter NBI image.**

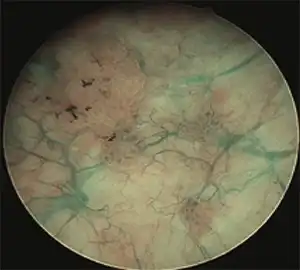

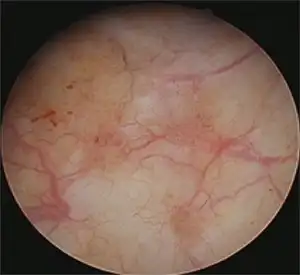

White Light Image NBI

White Light Image* NBI*

* This image is taken by the CH-S190-08-LB, which has the same image quality design.
**compared with VISERA ELITE

Size	Camera head	ø32 x 87 mm
	Cable	ø3.3 mm x 3.5 m
	Weight	90 g (excluding switches (20 g))
Observation	Pickup system	Interline type CCD solid-state image pickup
Classifi cation (Electro-magnetic Equipment)	Degree of protection against electric shock	Type BF
Classifi cation (Electro-magnetic Equipment)	Degree of protection against explosion	The product should be kept away from flammable gasses.
Cleaning/Disinfection Sterilization	Cleaning/Disinfection	Immersible in disinfectant solution and washer-disinfector
Cleaning/Disinfection Sterilization	Sterilization	Ethylene oxide gas and low-temperature hydrogen peroxide sterilization
