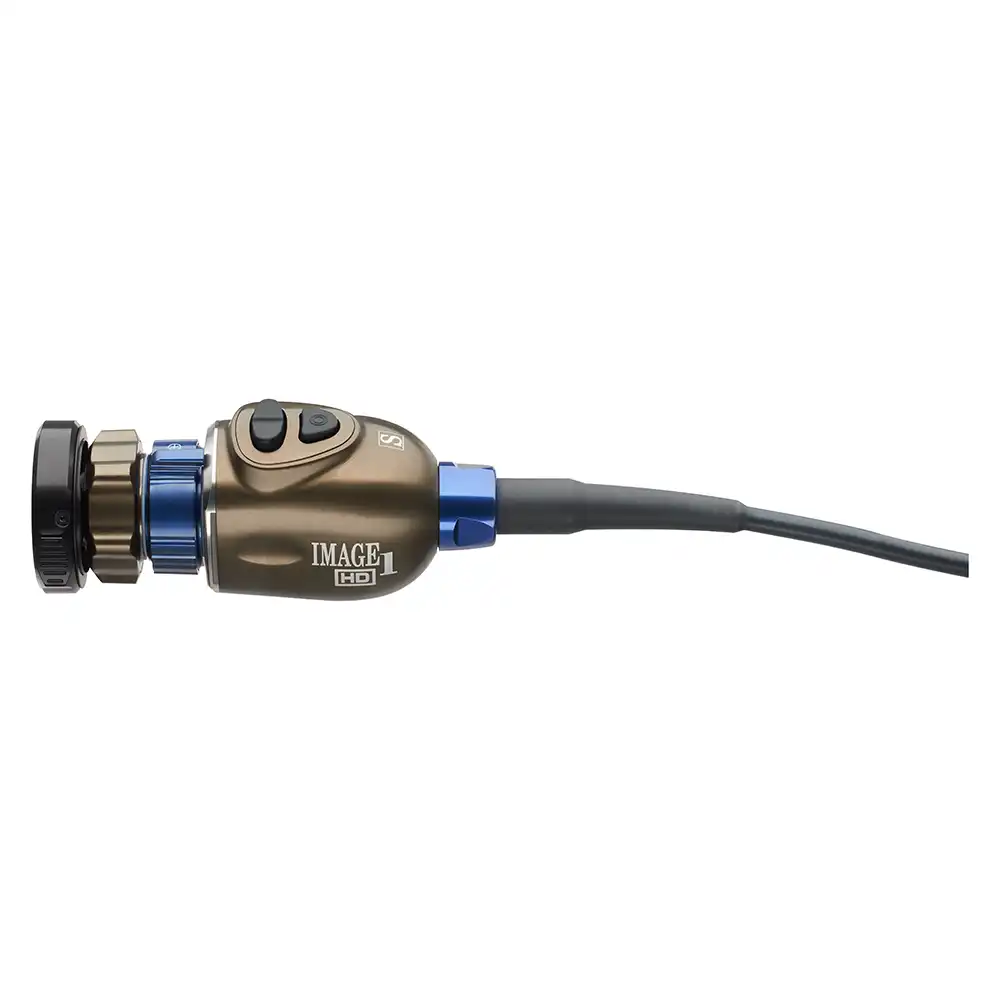

Karl Storz TH101 IMAGE1 S H3-ZI Camera Head

Archived Product Replaced by #

0° cable outlet – ergonomically optimized for operations where the camera head is gripped from below

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

IMAGE1 S H3-ZI TH101 Camera Head

  • 0° cable outlet – ergonomically optimized for operations where the camera head is gripped from below
  • FULL HD camera head
  • S-Technologies available
  • Compatible with IMAGE1 S™ H3-LINK
Image sensor resolution FULL HD
Connection H3-Line
Fluorescence imaging (NIR/ICG) no
Fluorescence imaging (Blue Light Imaging BLI) no
S-Technologies CLARA; CHROMA; SPECTRA A + B
Frame rate 50/60 Hz
Image sensor type CCD
Number of image sensors 3
Aspect ratio 16:9
Lens Focus adjustable via focus ring
Optical zoom yes; optical
Focal length 15,6 mm
Width 38 mm
Height 48 mm
Length 100 mm
Weight 270 g
Cable length 300 cm
Cable, detachable no
Cable routing straight
Camera head buttons 3 buttons; 2 freely programmable
Grip mechanism standard eyepiece adaptor
Soakable yes
Autoclavable no
EO sterilization yes
H2O2 (hydrogen peroxide) yes
Wipe disinfection yes
Sterile concept single-use covers
Scanning method progressive scan

Product Associated

Olympus CH-S700-XZ-EA 4K Autoclavable Camera Head

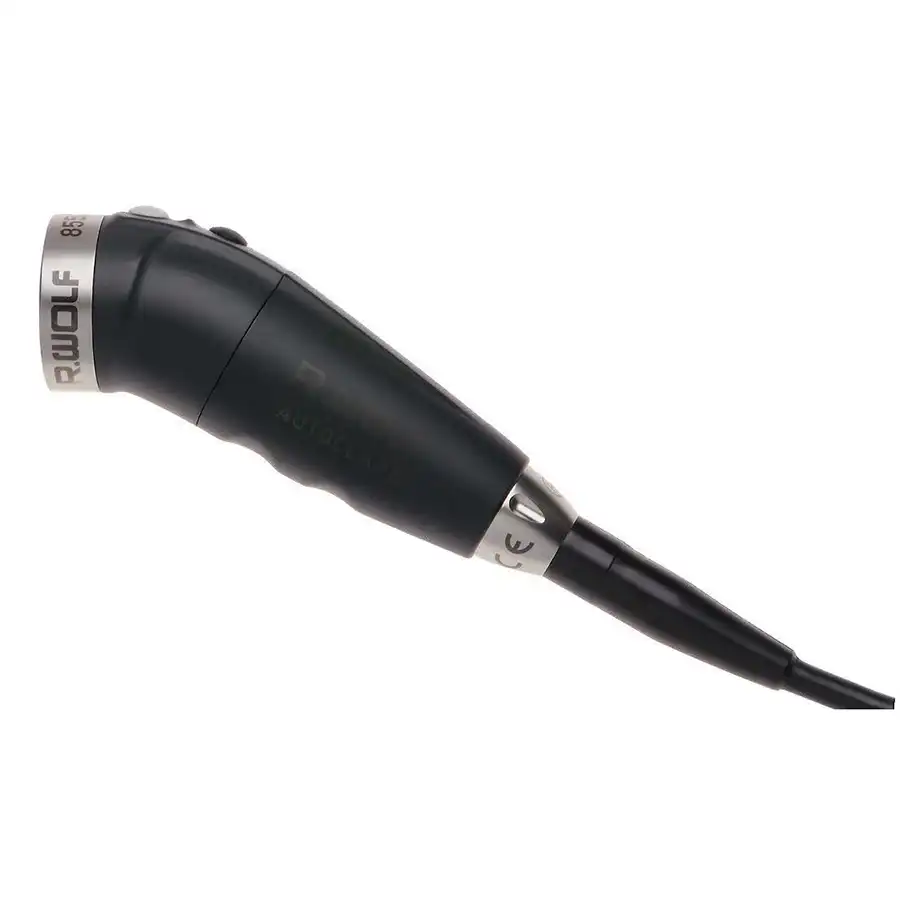

R. Wolf 85525902 ENDOCAM logic 1-chip HD camera head

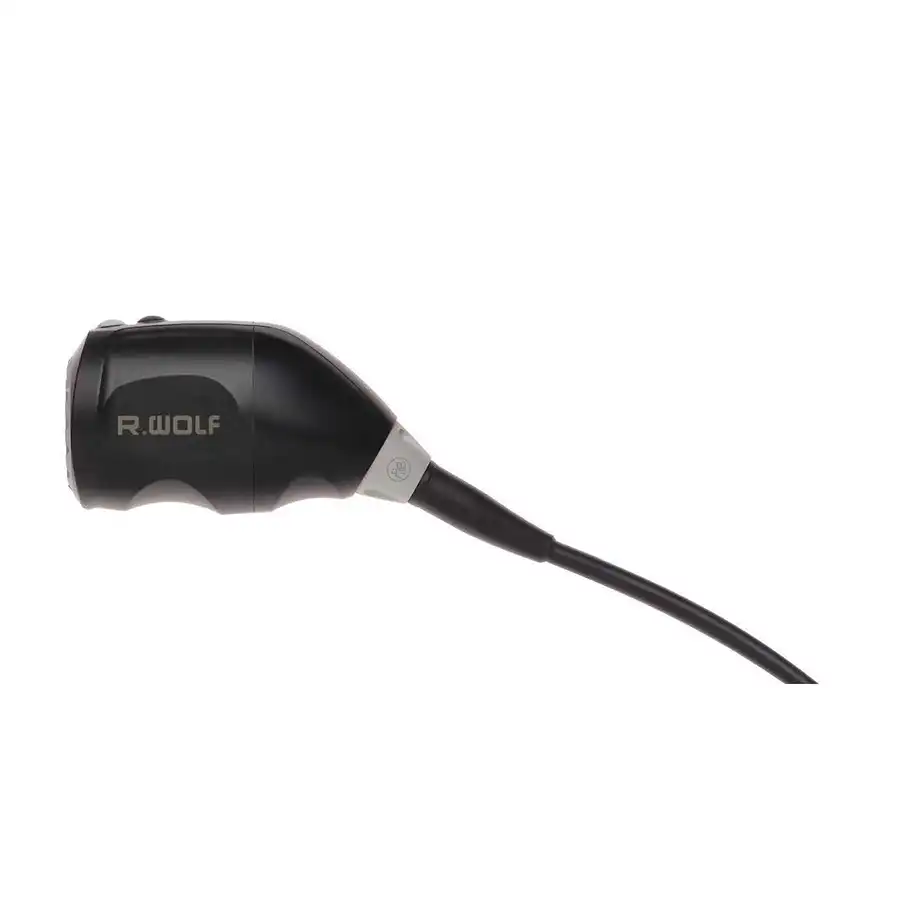

R. Wolf 85525922 ENDOCAM logic 3-chip HD camera head

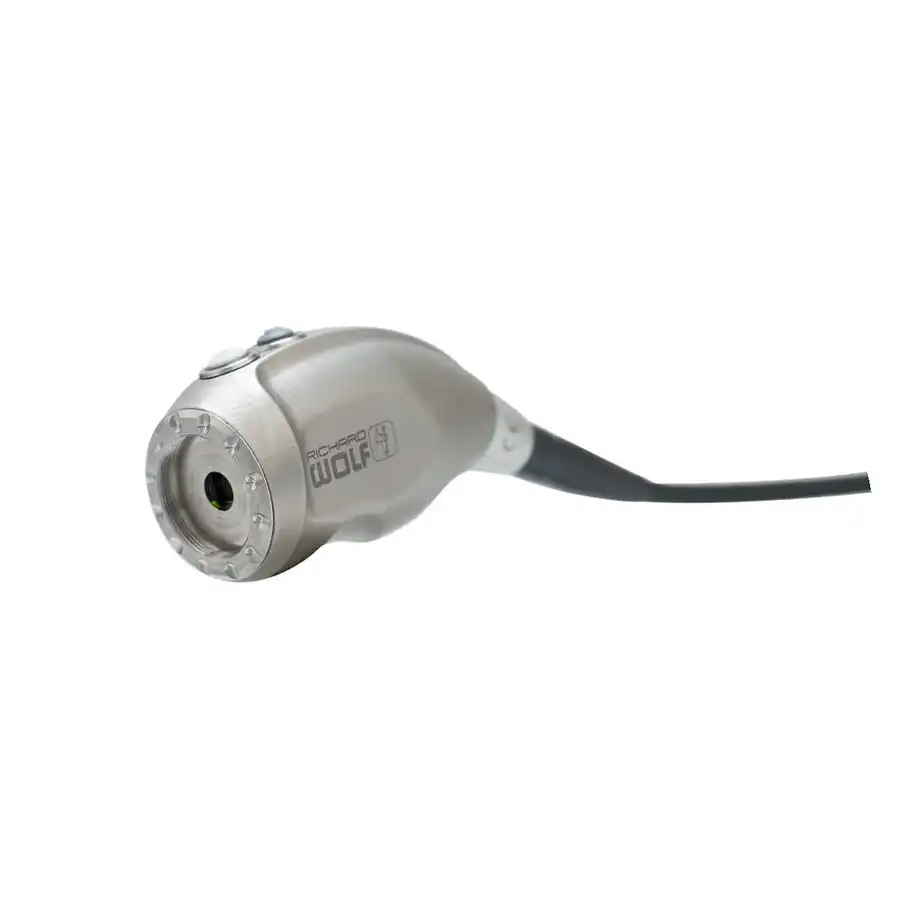

R. Wolf 85525942 ENDOCAM logic 4K 3-chip camera head

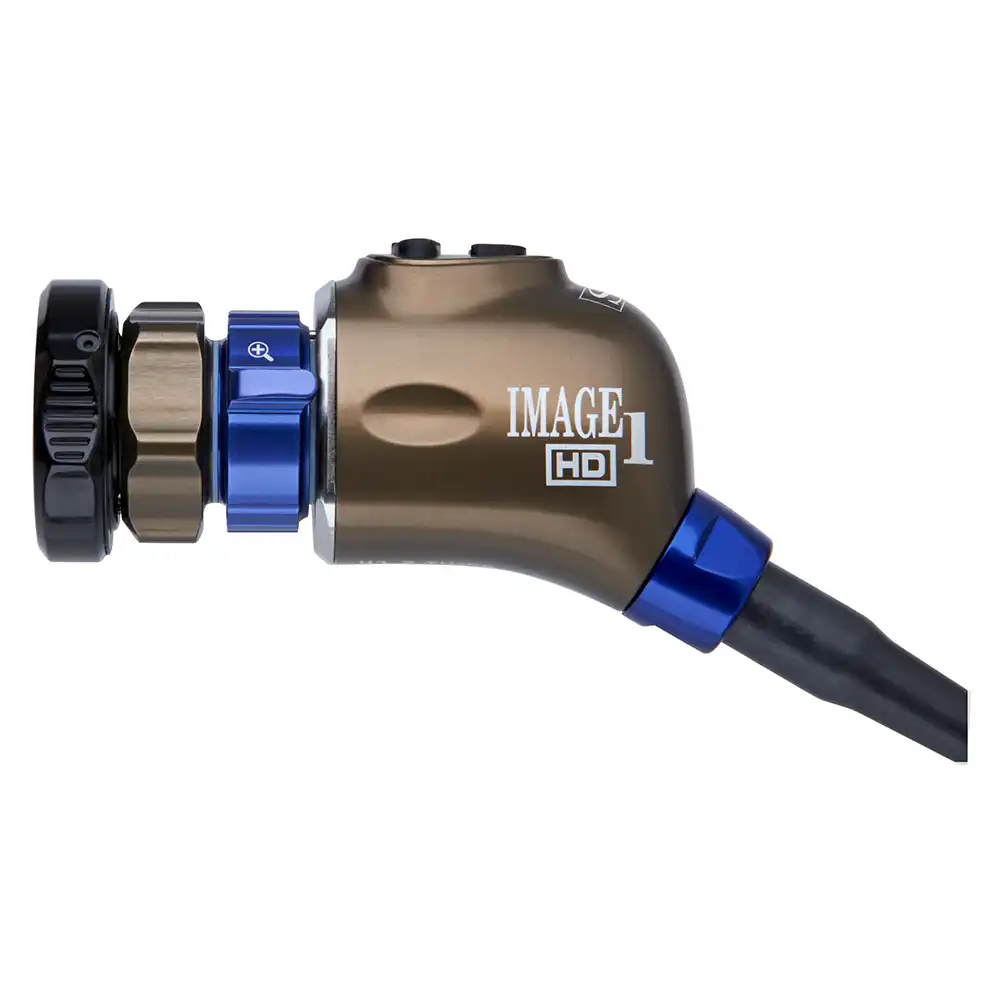

Karl Storz TH100 IMAGE1 S H3-Z Camera Head

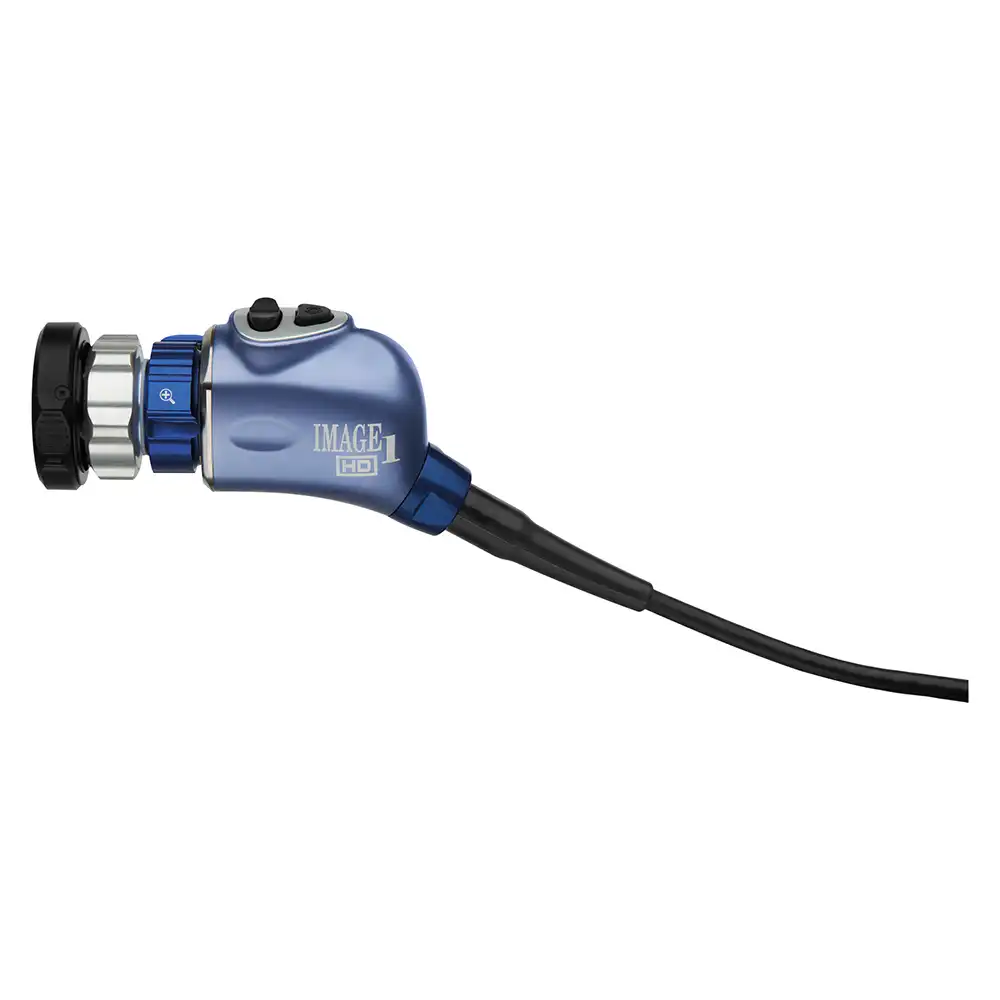

Karl Storz TH102 IMAGE1 S H3-Z FI Camera head

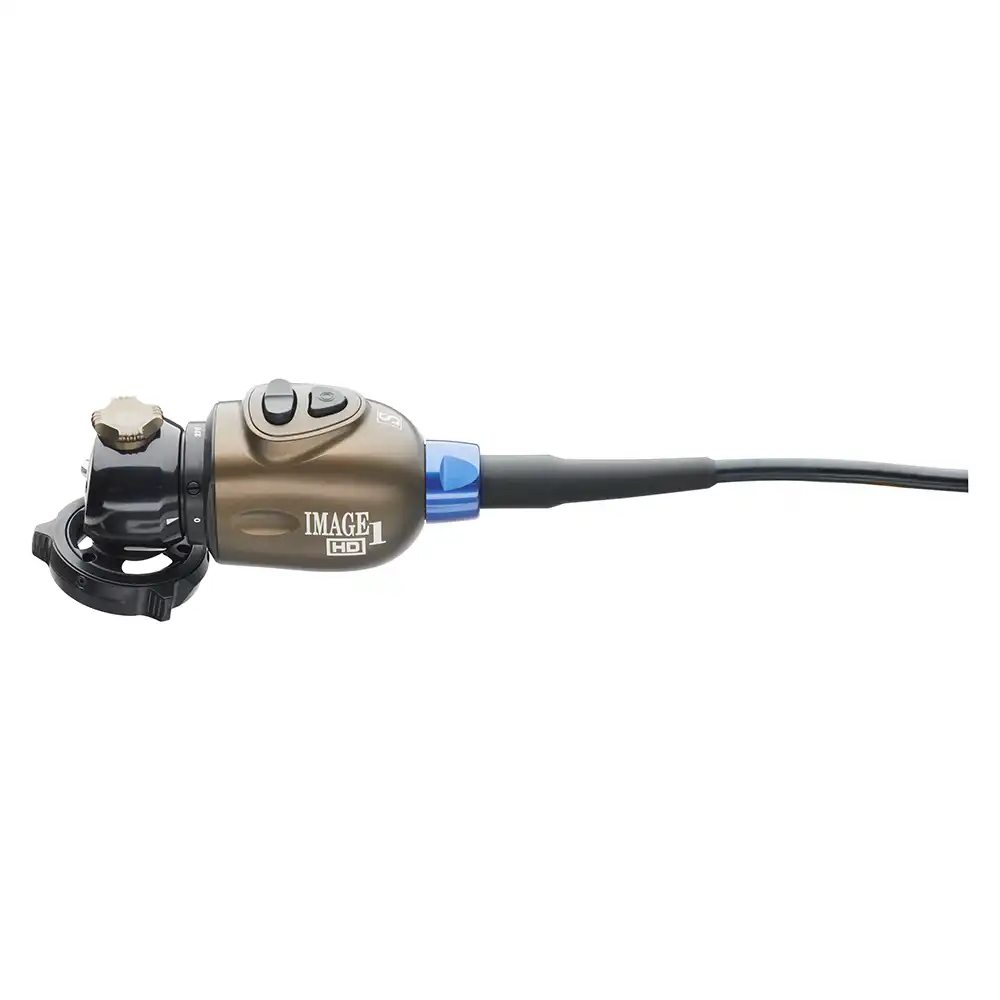

Karl Storz TH103 IMAGE1 S H3-P Camera Head

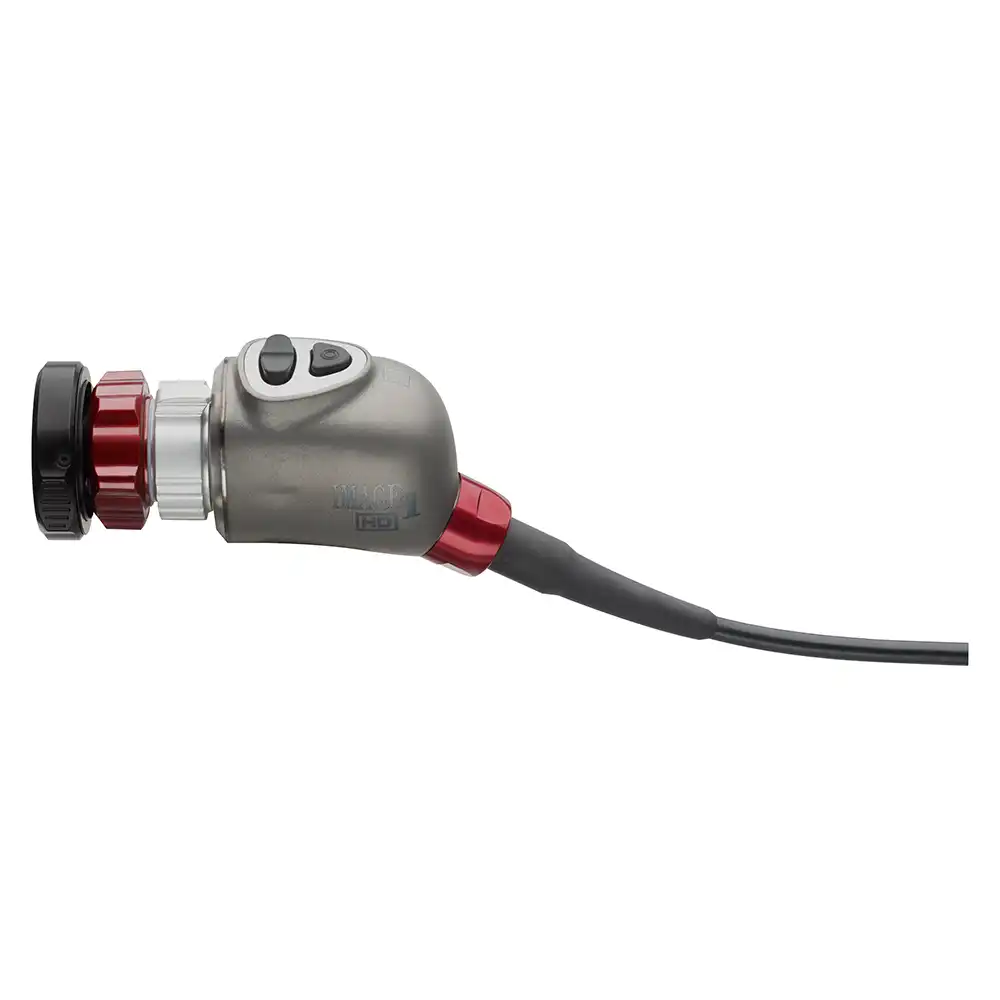

Karl Storz TH104 IMAGE1 S H3-ZA Camera Head

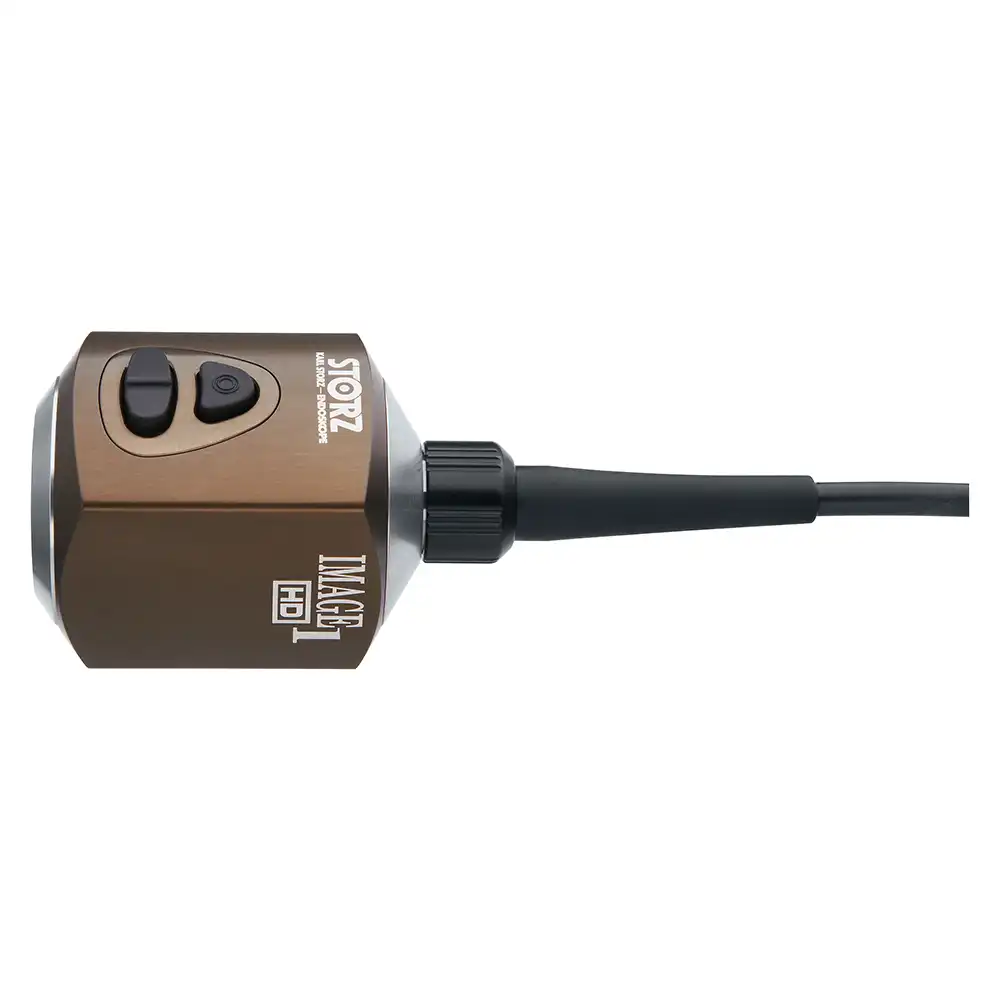

Karl Storz TH106 IMAGE1 S H3-M Coview Camera Head

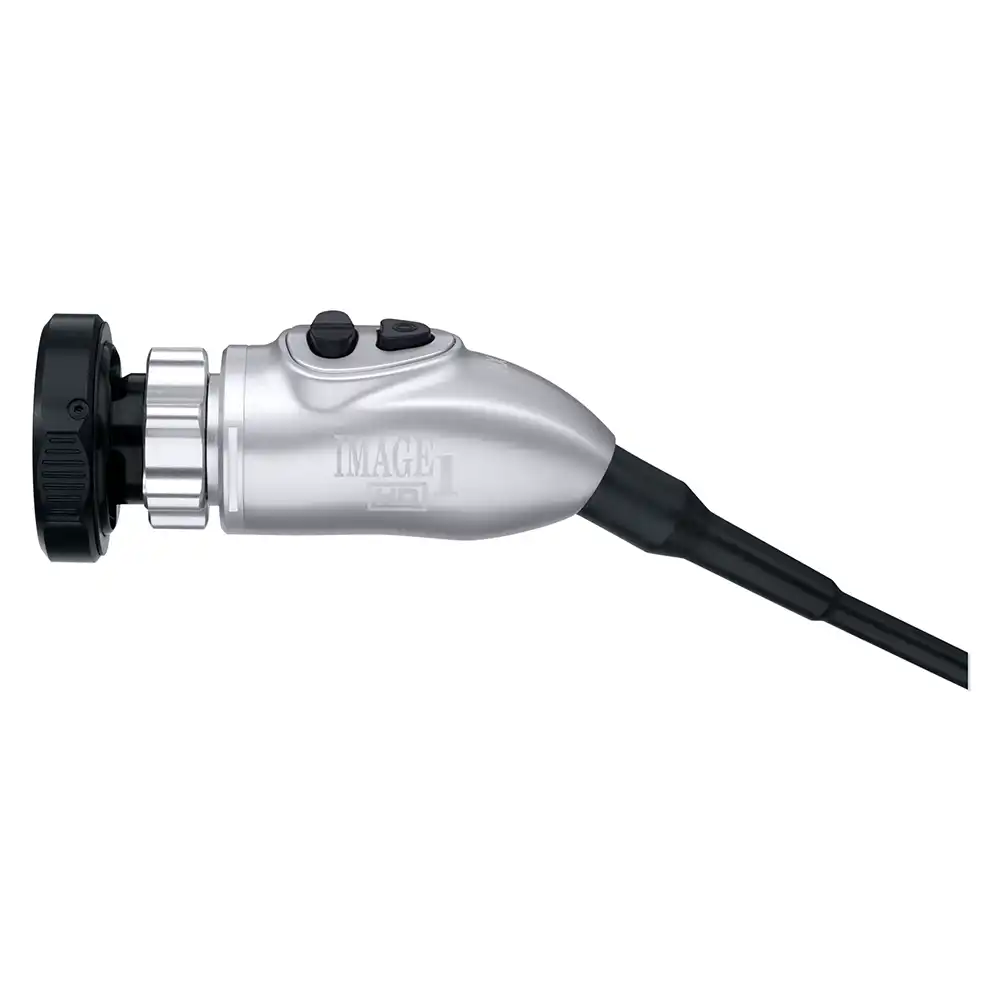

Karl Storz TH110 IMAGE1 S HX Camera Head

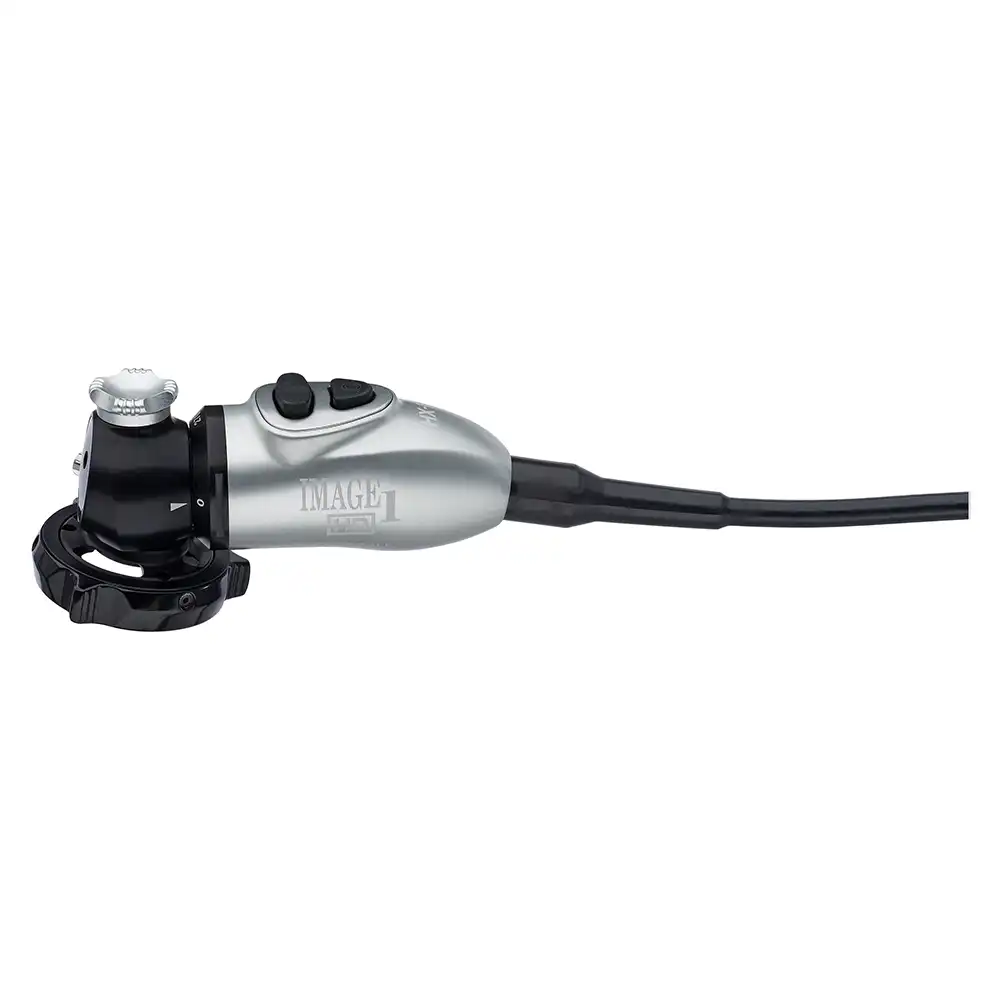

Karl Storz TH111 IMAGE1 S HX-P Camera Head

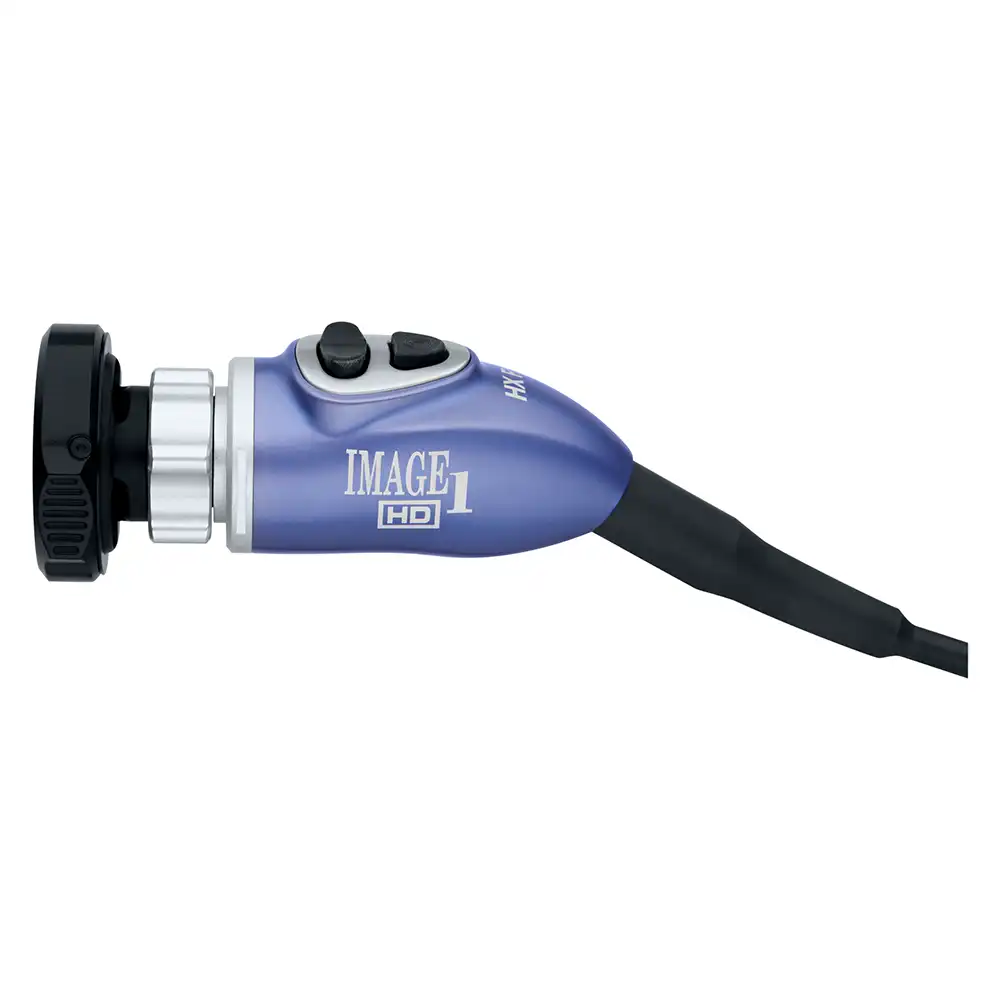

Karl Storz TH112 IMAGE1 S HX-P FI Camera Head

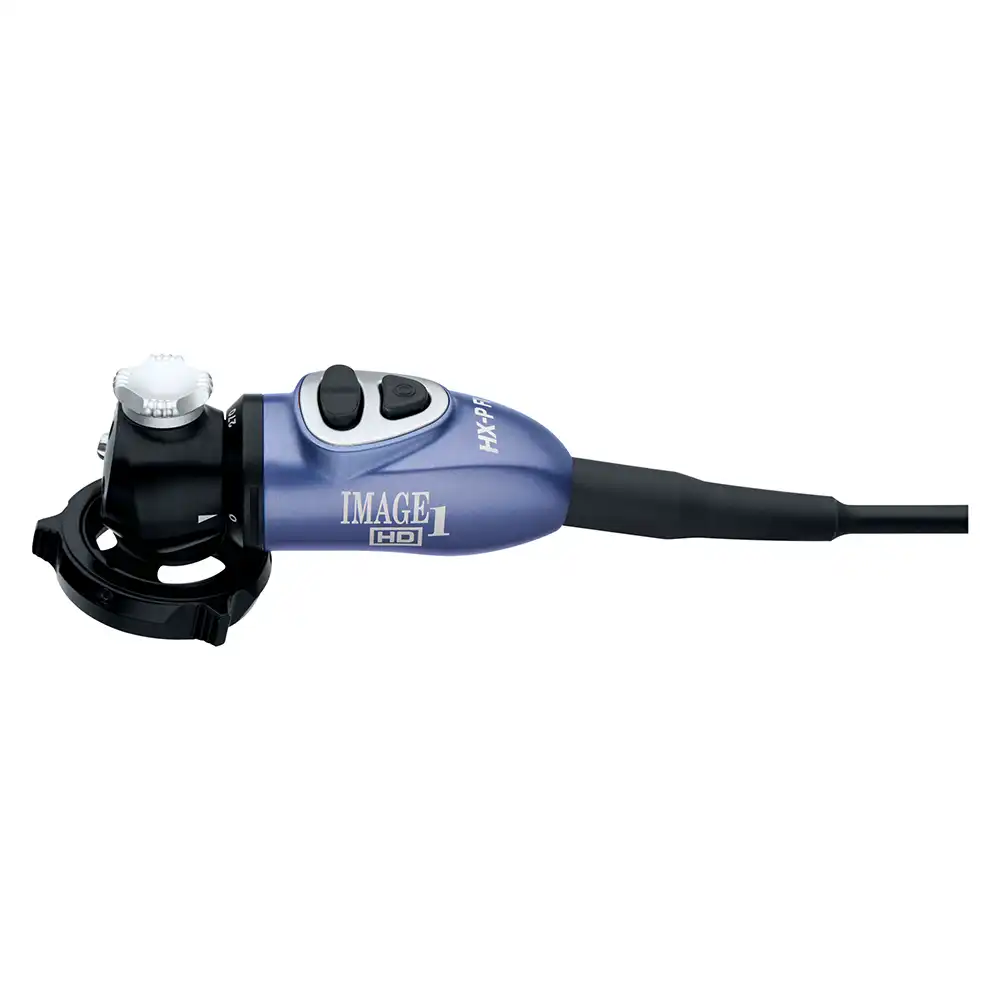

Karl Storz TH113 IMAGE1 S HX-P FI Camera Head

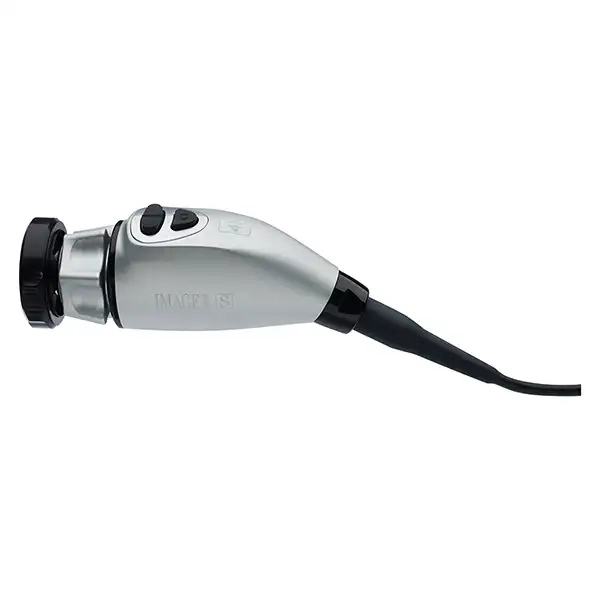

Karl Storz TH120 IMAGE1 S 4U Camera Head

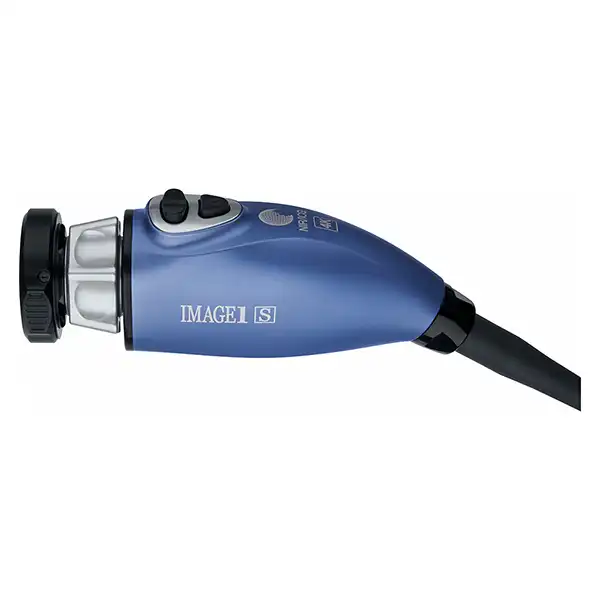

Karl Storz TH121 4K-NIR/ICG Camera Head
