中文Olympus UCR CO2 Insufflator
The UCR Unit makes CO₂ insufflation simple and easy, improving patient comfort during and after colonoscopy and supporting endoscopic therapy.
Phone：+86-21-54286005
Resources
UCR_Brochure_EN
UCR_Brochure_EN

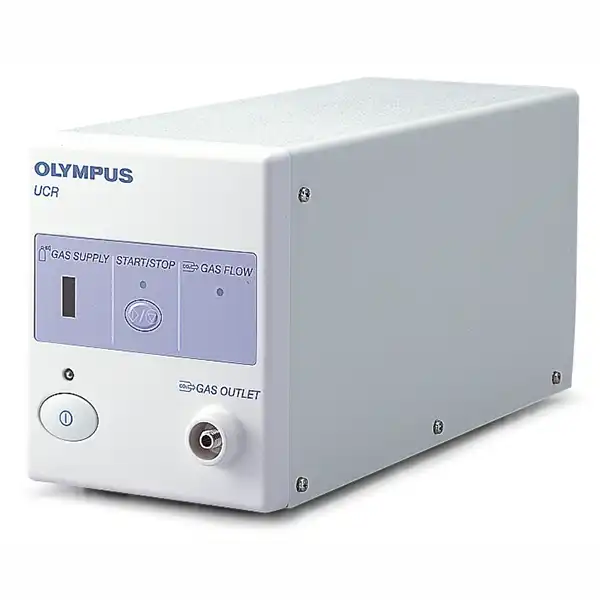

Olympus UCR CO₂ Insufflator
Gastroenterology
Main Features
- About 150 times faster than conventional air, carbon dioxide'srapid absorption properties keep abdominal distension andrelated pain to a minimum during the procedure and speed uprecovery afterwards.
- Easy, reliable one-button start/stop operation, pressure display,and timer function to automate COz insufflation shutoff.
- Compact design allows the UCR to fit easily on an endoscopicworkstation.
- Three controlled flow rate settings are available, by using theappropriate corresponding tubing. Tubes are optional.
| Power requirements | Voltage (AC) | 100 –120 V (USA), 100 – 240 V (Other areas) |
|---|---|---|
| Frequency | 50/60 Hz | |
| Input | 40 VA | |
| Voltage fluctuation | Within ±10% | |
| Dimensions | 125 (W) × 300 (D) × 150 (H) mm (housing dimensions) | |
| Weight | 4.9 g | |
| Applicable gas | CO2 gas for medical use (Connectable to CO2 cylinder or medical gas pipeline) | |
| Air feeding pressure | Maximum pressure feed | 45 kPa |
