Olympus UHI-4 45L High Flow Insufflation

The UHI-4 insufflation unit has a high maximum flow rate and advanced functionality. It enhances performance and reliability in demanding surgical-laparoscopy environments.

Phone：+86-21-54286005

Resources

UHI-4_Brochure_EN

Overview Specifications Dimensions

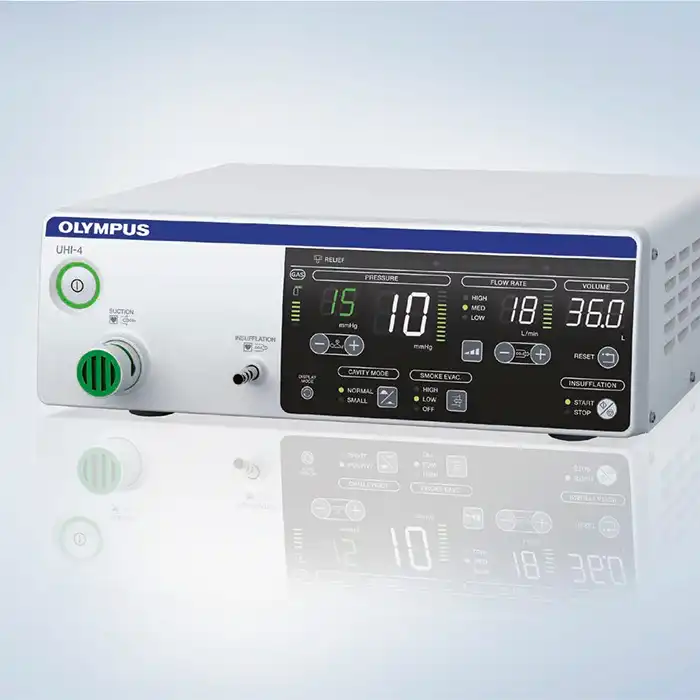

UHI-4

45L high flow insufflation unit for laparoscopic surgery

Main features

High speed insufflation

The UHI-4 offers an increased maximum flow rate of 45L per minute. In addition, a new display mode provides clear visualization of the pressure, flow rate and volume in real time for monitoring the status of the UHI-4.

Automatic smoke evacuation
An automatic smoke evacuation feature is enabled on the UHI-4 when it is coupled with a new or existing energy platform. This will help provide a clear and unobstructed view of the surgical field during difficult laparoscopic procedures.

Adjustable smoke evacuation
In order to reduce the amount of CO₂ used during surgery, the UHI-4 allows for the smoke evacuation to be independently set on the front panel of the unit.The smoke evacuation can be toggled between a high and low function.

UHI-4

New cylinder hose with
switch-over valve With the new CO₂ switch-over valve accessory,the surgeon can freely switch CO₂ tanks without interrupting long procedures,thus reducing the physical difficulty of exchanging tanks.

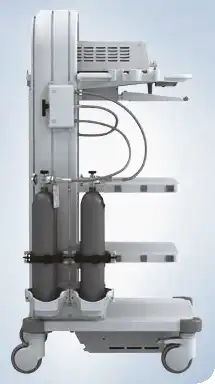

WM-NP2

To use this accessory, the new WM-NP2 mobile workstation as well as the double cylinder holder (a WM-NP2 accessory) is required.

New Small Cavity mode
The newly developed Small Cavity mode allows for safer insufflation of cavities smaller than the abdomen.

Dimensions (W x H x D)	370 x 120 x 300 mm
Weight	9.3 kg
Abdominal pressure control	3 to 25 mmHg
Flow rate settings	0.1 to 45 L/min
Cavity mode	Normal/small
Gas supply from wall pipeline	Connectable
Alarm	Overpressure of abdominal cavity/ tube clogging/insufficient supply of gas
Smoke evacuation function	Available (when connected to the below devices) ESG-400 electrosurgical generator USG-400 ultrasonic generator UES-40 electrosurgical unit SonoSurg-G2 sonosurg generator
OR integration	ENDOALPHA UCES-3 ver. 4
Standard set	UHI-4, MAJ-590 insufflation tube,MAJ-591 suction tube
