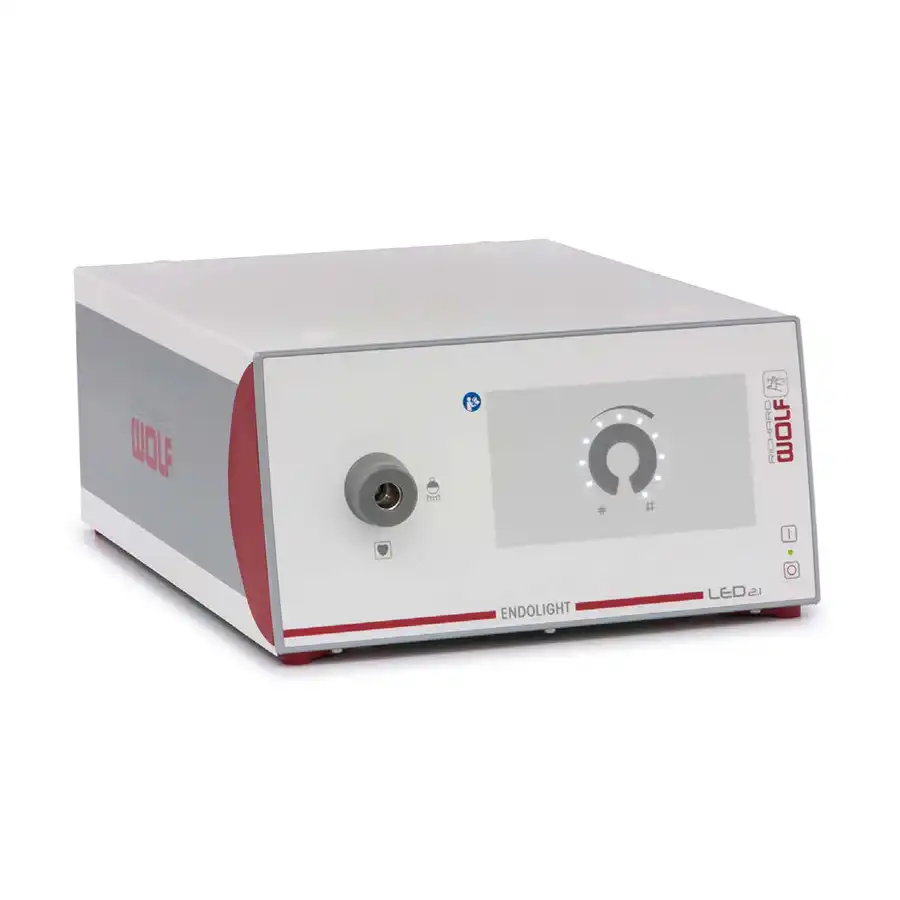

R. Wolf 5163001 ENDOLIGHT LED 2.1 LED light source

ENDOLIGHT LED 2.1 5163001 LED light source

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

ENDOLIGHT LED 2.1

LED light source

5163001

The light output is comparable to a 300-watt xenon illuminant
The LED service life is at least 30,000 hours
The LED light source reduces power consumption by up to 80%compared to an equivalent xenon light source
Extremely quiet heatpipe ventilation concept at only 25 dB(A)noise level
Automatic dimming of the light cable socket if the light cable is removed
Very homogenous illumination of the endoscopic surgical area.No drop in brightness in the peripheral area and no "black spot" in the center
Very stable color temperature (6500 Kelvin) over the entire LED service life

Light source ENDOLIGHT LED 2.1
complete ............................................................................... 51630011
Comprising:
1x ENDOLIGHT LED 2.1 .................................................... 5163001
1x power cable ................................................................... 2440.03

ENDOLIGHT LED 2.1	5163001
Device properties
Type and number of lamps	1x high-power LED
Lamp service life	30,000 h
Brightness in Lumen	1900 lm
Light output compared to xenon in W	300 W
Color temperature	6500 K
Brightness control	0 - 100%
Noise level	25 dB(A)
Operating mode	Continuous operation
Operating conditions	+10oC to +40oC, 30% to 75% rel. humidity, atmospheric pressure 700 hPa to 1060hPa
Equipment
Supported light cables	Wolf
IP rating	IP20
Cooling method	Passive heatpipe, fan
Power supply
Mains + frequency	100-240 VAC, 50/60 Hz
Power consumption	150 VA
Current rating	1.1-0.6 A
Regulatory standards
Safety	EU: EN 60601-1
EMC	EN 60601-1-2 / IEC 601-1-2
Medical device class	Class 1
Classification	CF
Dimensions and weight
Weight	9.6 kg
Dimensions (W x H x D)	300 x 160 x 421 mm
