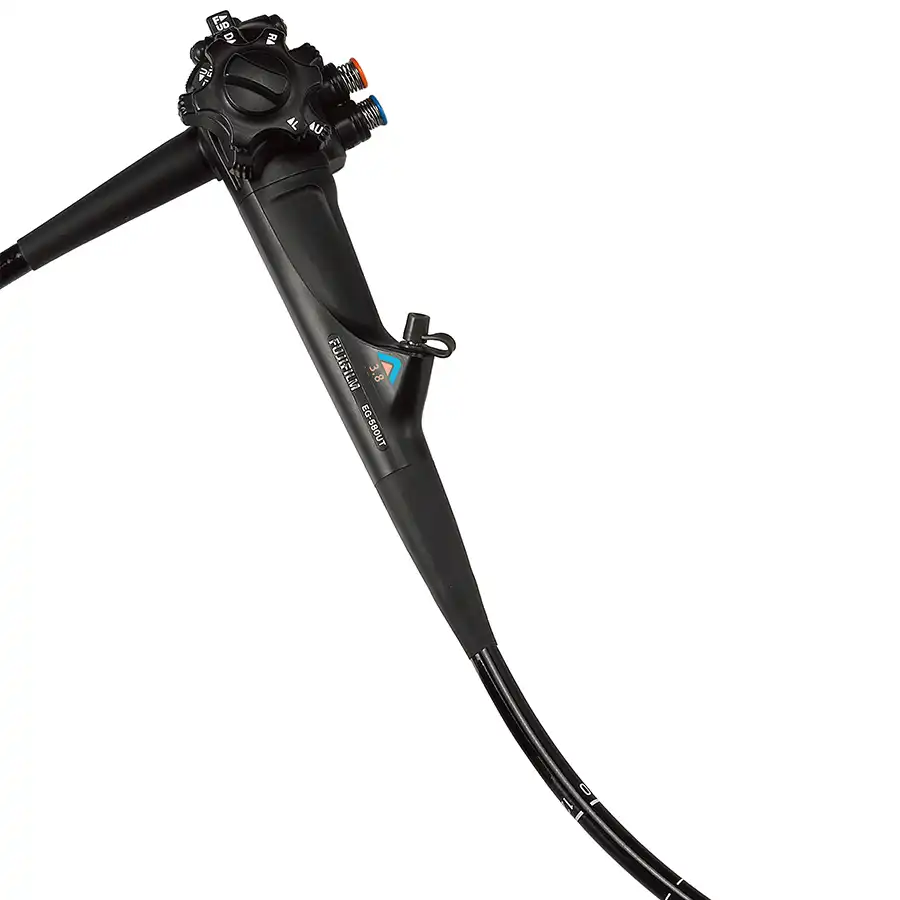

The EG-580UT, an ultrasound endoscope with Forceps Elevator Assist which enables convex scanning, was developed for therapeutic interventions. The endoscope has a large working channel of 3.8 mm and is equipped with an Albarran lever.
Phone：+86-21-54286005
EG-580UT-EG-580UR_Brochure_EN
The Fujifilm EG-580UT Curved Linear Endoscopic Ultrasound scope is designed with a small bending radius and short rigid section to enable easy access to targeted areas. A wide puncture range enables FNA and FNB from a variety of positions to achieve broader accessibility.
Ergonomic Control Portion
The Fujifilm G7 scope grip is ergonomically designed to enhance comfort with a rounded handle surface,enabling intuitive operation. The angulation of the buttons and knobs on the scope handle is designed to provide pressure relief, helping to minimize metacarpal fatigue and optimize procedural performance.

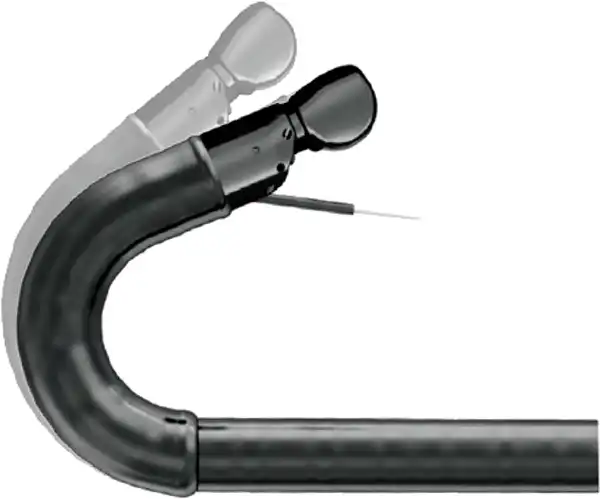

Distal Tip Bending Capability
The powerful bending capability combined with a short rigid section supports manipulation in the duodenum and stomach.

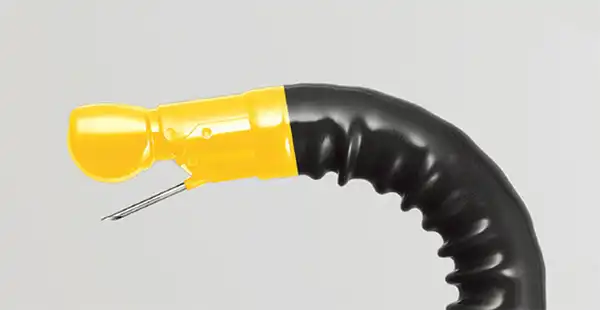

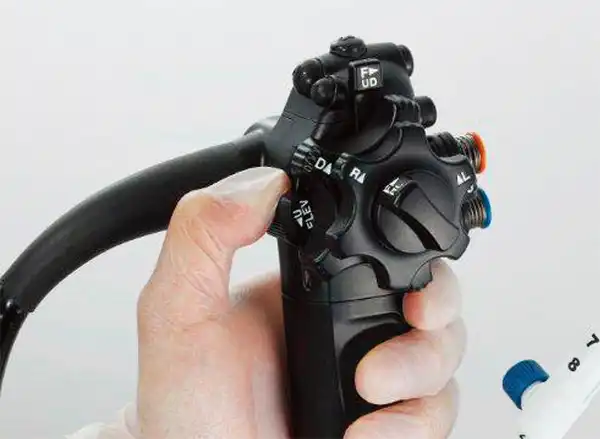

Elevator Locking
The EG-580UT Curved Linear Endoscopic Ultrasound scope is equipped with an elevator locking assist which enables flexible and subtle endoscopic operations during therapeutic procedures and supports stable puncture trajectory.

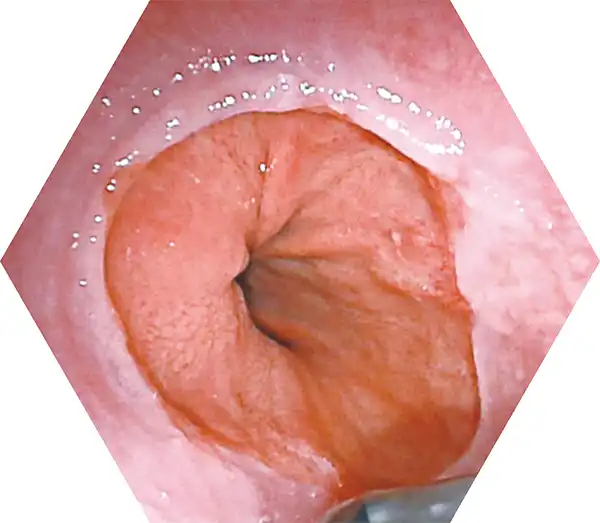

Endoscopic Viewing Angle
The 40º Forward Oblique viewing angle of the EG-580UT Curved Linear Endoscopic Ultrasound scope is ideal for navigation, providing ease of ability in viewing the advancement path.
Advanced Force Transmission
The braided and coiled inner tube allows a gradual flexible to firm taper,providing advanced force transmission to maximize scope maneuverability.

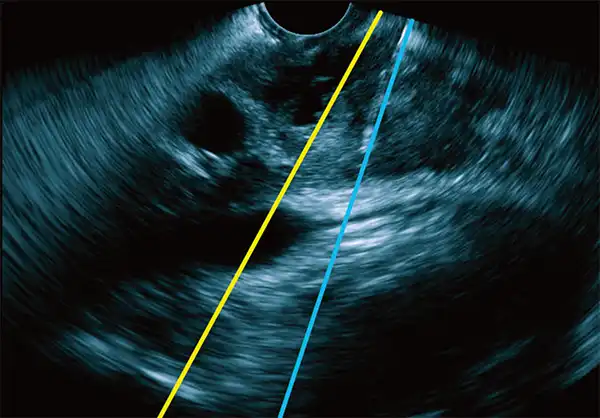

Needle Trajectory
The enhanced elevator mechanism provides smooth needle movement and facilitates wide needle trajectory when targeting lesions for Fine Needle Aspiration (FNA) and Fine Needle Biopsy (FNB).
19 Ga needle
Endoscopic functions
| Viewing direction | 40° Forward oblique |
| Observation range | 3 - 100 mm |
| Field of view | 140° |
| Distal end ø | 13.9 mm |
| Flexible portion ø | 12.4mm |
| Bending capability | Up 150° / Down 150° Right 120° / Left 120° |
| Working length | 1250 mm |
| Overall length | 1550 mm |
| Working channel ø | 3.8 mm |
Ultrasonic functions
| Scanning method | Electronic curved linear array scan |
| Scanning angle | 150° (combination with SU-1) |
| Frequency | 5 MHz / 7.5 MHz / 10 MHz / 12 MHz |
