The Fujifilm EG-580UR Radial Endoscopic Ultrasound scope is equipped with a slim distal end diameter, round tip design, and a direct forward view for insertion into narrow lumens often encountered in standard gastroscopic procedures.
Phone：+86-21-54286005
The Fujifilm EG-580UR Radial Endoscopic Ultrasound scope is equipped with a slim distal end diameter, round tip design, and a direct forward view for insertion into narrow lumens often encountered in standard gastroscopic procedures.

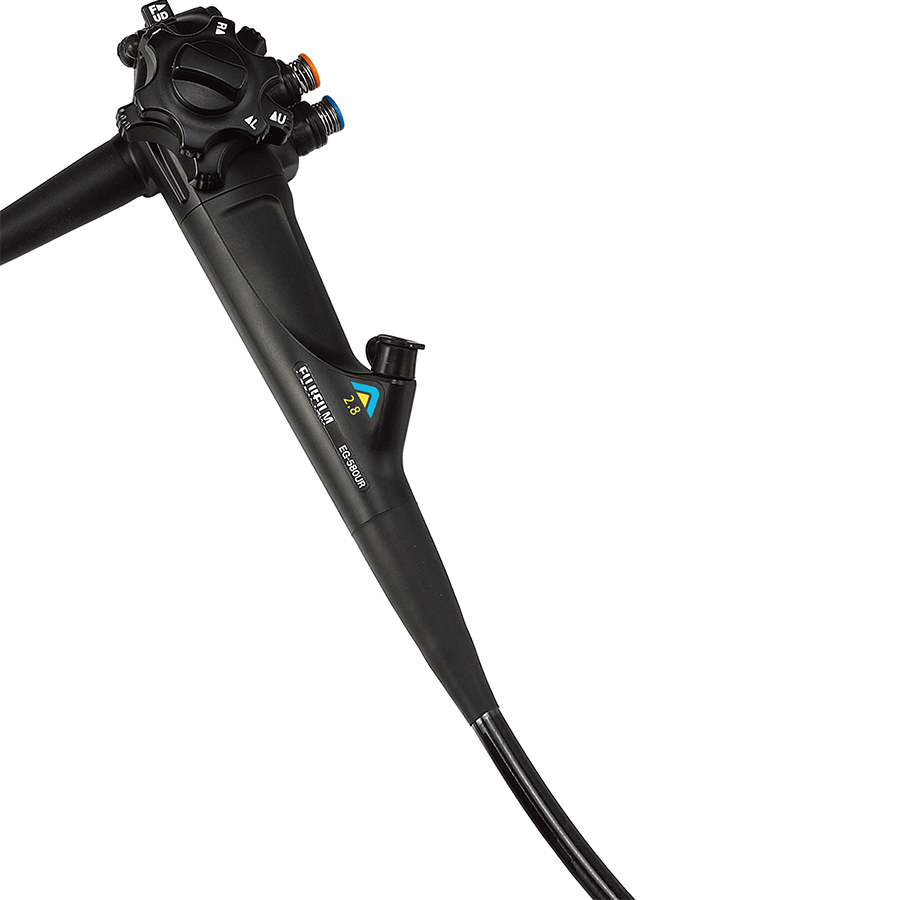

Ergonomic Control Portion
The Fujifilm G7 scope grip is ergonomically designed to enhance comfort with a rounded handle surface,enabling intuitive operation. The angulation of the buttons and knobs on the scope handle is designed to provide pressure relief, helping to minimize metacarpal fatigue and optimize procedural performance.
2.8 mm Working Channel
The working channel provides enhanced suction power and therapeutic capabilities during endoscopic and ultrasonographic procedures.

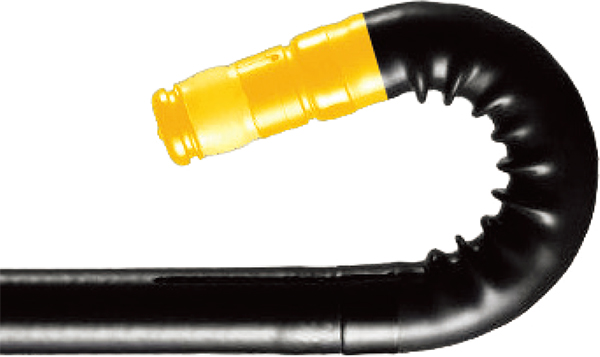

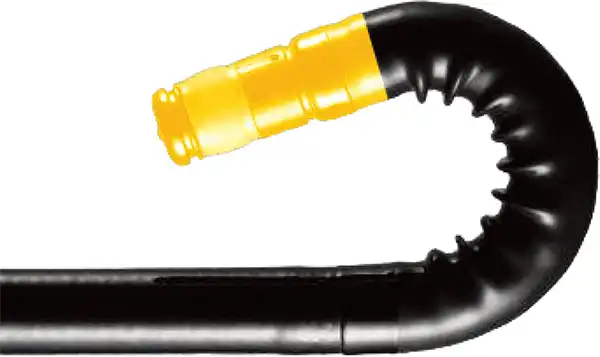

Distal Tip Bending Capability
The 190º bending capability of the EG-580UR Radial Endoscopic Ultrasound scope combined with a short rigid section supports manipulation in the duodenum and stomach.

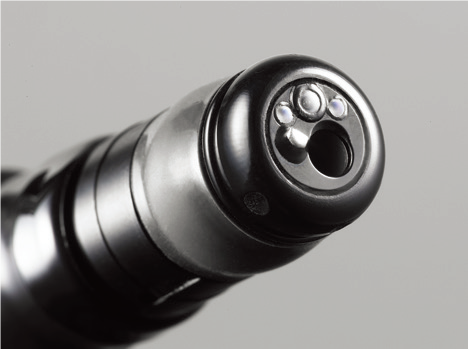

11.4 mm Distal Tip OD
The EG-580UR Radial Endoscopic Ultrasound scope offers a slim distal end diameter of 11.4 mm to facilitate scope insertion.
Endoscopic Viewing Angle
The 0º Forward Viewing provides ease of advancement and instrument deployment, and is ideal for use in EGD procedures.

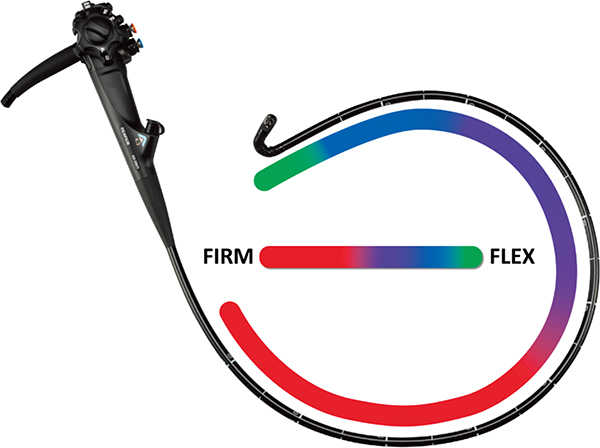

Advanced Force Transmission
The braided and coiled inner tube allows a gradual flexible to firm taper, providing advanced force transmission to maximize scope maneuverability.
Endoscopic functions
| Viewing direction | 0° |
| Observation range | 3 - 100 mm |
| Field of view | 140° |
| Distal end ø | 11.4 mm |
| Flexible portion ø | 11.5 mm |
| Bending capability | Up 190° / Down 90° Right 100° / Left 100° |
| Working length | 1250 mm |
| Overall length | 1550 mm |
| Working channel ø | 2.8 mm |
Ultrasonic functions
| Scanning mode | Colour Doppler, Power Doppler, Pulse Doppler, B mode, M mode |
| Scanning method | Electronic radial scan |
| Scanning angle | 360° (combination with SU-1) |
| Frequency | 5 MHz / 7.5 MHz / 10 MHz / 12 MHz |
