Olympus BF-UC190F Ultrasound Bronchoscope

EVIS EUS BF-UC190F Ultrasound Bronchoscope

Phone:+86-21-54286005

Resources

BF-UC190F_Brochure_EN

EVIS EUS BF-UC190F ULTRASOUND BRONCHOFIBERVIDEOSCOPE



Enhanced Access

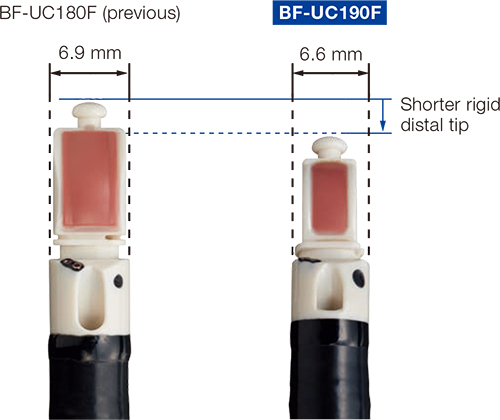

Unique, Compact Distal Tip
Only 6.6 mm outer diameter and shorter rigid part of 25 mm for improved maneuverability.

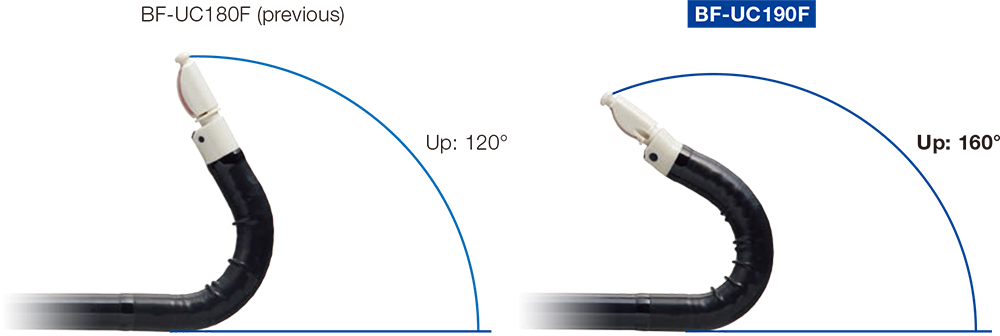

Powerful Angulation
Up to 160° angulation supports smoother insertion to the upper/lower lobe bronchi and allows more of a bend in the scope when an EndoTherapy device is inserted in the working channel.

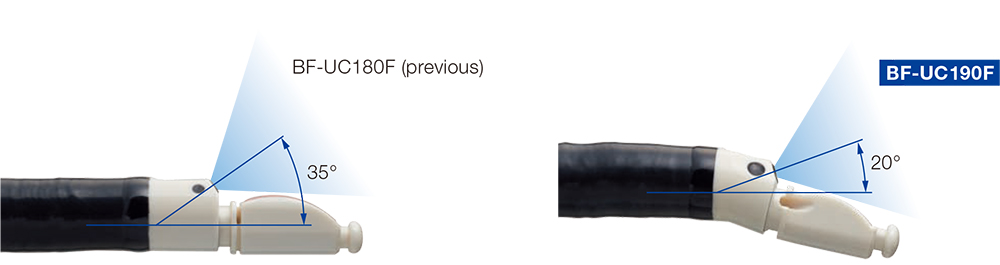

Easier Intubation and Orientation
The decreased forward oblique viewing angle from 35 degrees to 20 degrees allows for easier EBUS scope insertion. It also enables the operator to keep the endoscopic image in full field of view and assists the anatomic overview.



Expand Your Possibilities in EBUS-TBNA
Olympus is unique in offering a 19G EBUS-TBNA needle in addition to the 21G, 22G and 25G needles. But now it also provides the second generation of EBUS needles — the ViziShot 2. While the entire portfolio offers the already established safety mechanisms and excellent ultrasound visibility, Olympus provides a needle for every situation — expanding your possibilities in EBUS-TBNA.



ViziShot 2 FLEX

  • Largest EBUS needle with a 19G diameter.
  • Supports histological sampling for suspected sarcoidosis and lymphoma but also helps to provide more tissue for advanced molecular analyses.
  • An ally for special indications but also whenever superior flexibility is needed.



ViziShot 2

  • The new, improved 21G, 22G and 25G needles.
  • Smooth needle penetration thanks to sharper needle tip.
  • Better needle control with the new ergonomic handle design.



ViziShot

  •  The reliable and long-established EBUS-TBNA needle.



BF-UC190F
Optical system Field of view

80°

Direction of view 20° forward oblique
Depth of fi eld

2-50 mm

Insertion section Distal end outer diameter 4.2 mm
Insertion tube outer diameter

4.1 mm

Working length 600 mm
Instrument channel Channel inner diameter

2.0 mm

Minimum visible distance 3.0 mm from the distal end
Bending section Angulation range

UP 210°
Down 130°
