ETHICON NSLX145C Advanced Bipolar tissue sealer,45cm,Curved tip

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

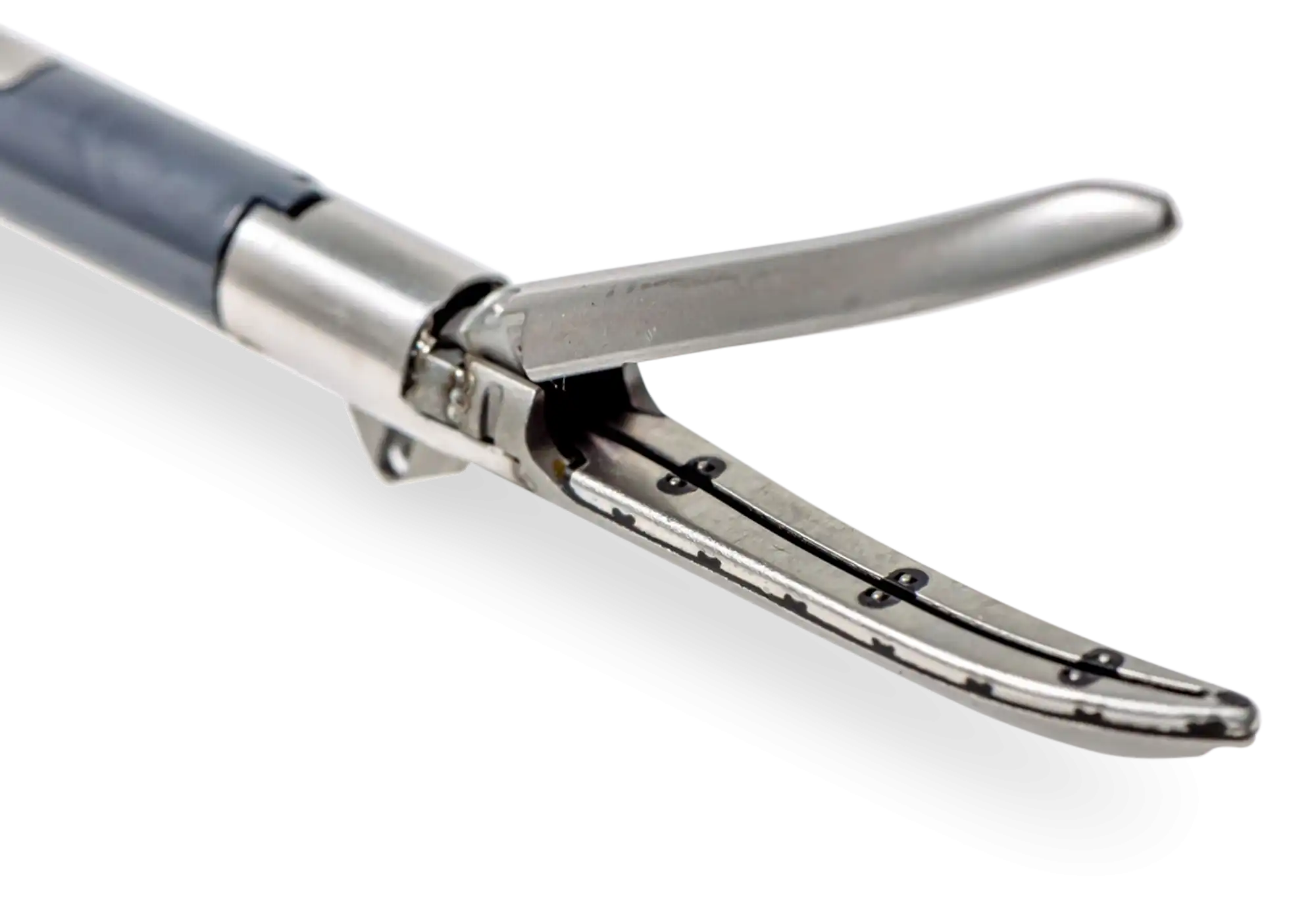

ENSEAL^™ X1 Curved Jaw Tissue Sealer

Product Codes: NSLX145C

Designed for use in open and laparoscopic surgical procedures, ENSEAL X1 Curved Jaw Tissue Sealer is one of the latest innovations in the advanced bipolar ENSEAL^™ portfolio that provides secure sealing.¹ This device has a curved tapered tip and offers simplified steps for use with one-handed² 360 degree rotation³, separate seal and cut buttons⁴ and an efficient, ergonomic handle.⁵

1. In benchtop testing on porcine arteries, average burst pressures were 1055 mmHg (ENSEAL™ X1 Curved Jaw) and 1077 mmHg (ENSEAL™ X1 Straight Jaw) (100001-210810)

2. (095686-221121)

3. (093778-220419)

4. (093782-210528)

5. (099986-221121)

6. ENSEAL X1 Curved Jaw Tissue Sealer can capture, seal and transect a longer length of tissue per single activation due to a 16% (or 3.4mm) longer jaw (p < 0.001) and a 19% (or 3.5mm) longer cut length (p < 0.001) compared to LigaSure™ Maryland (LF1937). (145163-200630)

7. Based on metrology data, ENSEAL X1 Curved Jaw Tissue Sealer has a 16% (or 3.4mm) longer jaw than LigaSure™ Maryland (LF1937) (p < 0.001) and ENSEAL X1 Curved Jaw Tissue Sealer has a 9% (or 1.15mm) wider jaw aperture than LigaSure™ Maryland (LF1937) (p < 0.001). (145041-200629)

8. (095323-210624)

9. Comparison of ENSEAL X1 Curved Jaw to LigaSure™ Maryland (LF1937). Benchtop testing on porcine arteries (1055mmHg vs. 862mmHg, p < 0.001). (145069-200629)

Device Specifications and Comparisons

The ENSEAL X1 Curved Jaw Tissue Sealer is a bipolar electrosurgical instrument for use with an electrosurgical generator. It is intended for use during open or laparoscopic surgical procedures to seal and transect vessels, and to grasp, dissect and cut tissue during surgery.

Select Competitive Products: Medtronic LigaSure^™ Maryland, LigaSure^™ Blunt Tip

	Featured Product

	ENSEAL^™ X1 Curved Jaw Tissue Sealer
Codes	NSLX145C
Compatible With	GEN11
Shaft Diameter	5mm
Shaft Length	45cm
Jaw/Tip Configuration	Curved
Jaw Aperture*	13.4mm
Jaw Length*	24mm
Cut Length*	21.8mm
Jaw Width*	5mm
Vessel Indication (Diameter)	≤ 7mm and lymphatics
Device Technology	Adaptive Tissue Technology
Surgical Approach	Laparoscopic
Qty./Box	3
