ETHICON HAR9F HARMONIC FOCUS™ Shears,9cm

Phone：+86-21-54286005

Resources

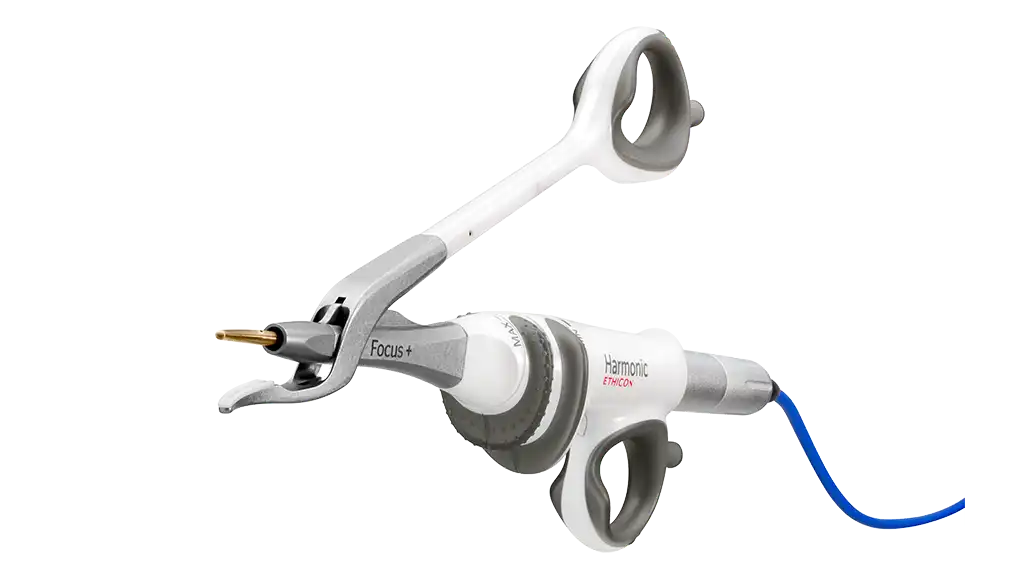

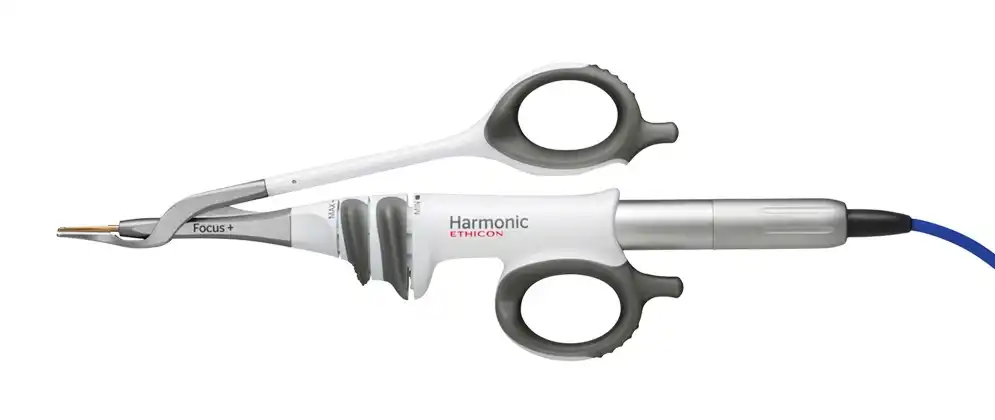

HARMONIC FOCUS^™+ Shears

Product Codes: HAR9F

When operating in tight spaces or near critical structures, precise energy delivery becomes vital. The HARMONIC FOCUS+ is an ultrasonic advanced energy device designed to effectively deliver energy in open procedures with it curved, fine tip and slim profile.

Features & Benefits

Redesigned Tip

The curved, tapered tip allows for precision and speed when transecting tissue in head and neck procedures.³

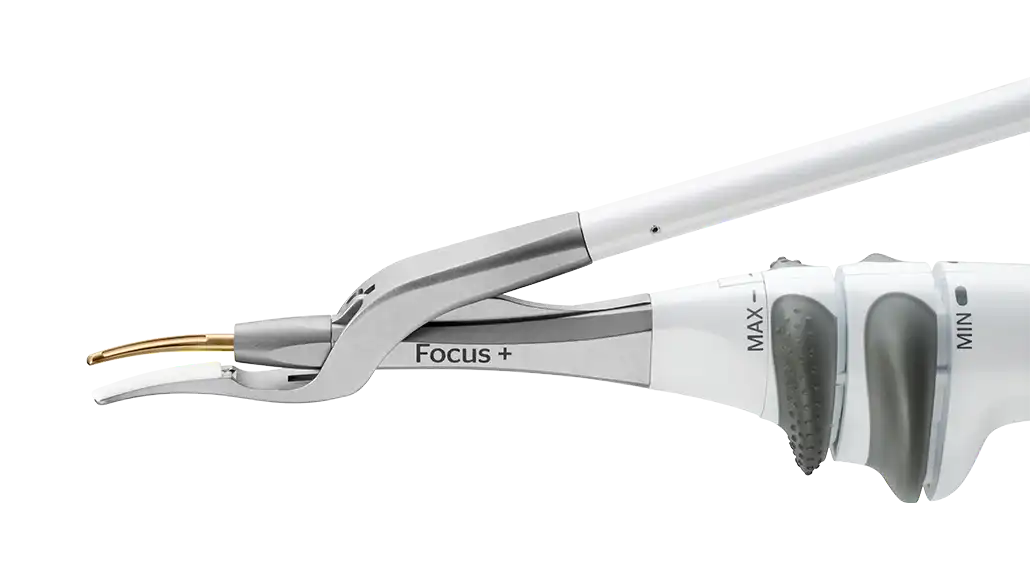

Slimmer Profile

With a smaller profile,⁴ HARMONIC FOCUS+ was designed for improved visualization in narrow spaces.

Adaptive Tissue Technology

With Adaptive Tissue Technology, HARMONIC FOCUS+ Shears is designed to enable greater surgical precision and performance.⁵ Adaptive Tissue Technology regulates energy, controlling the thermal profile to reduce the risk of thermal damage.

Adaptive Tissue Technology

References

1. Based on a meta-analysis of HARMONIC FOCUS^® (HF) versus clamp, cut and tie, where HF reduced operative time (p<0.001), intra-operative blood loss (p<0.001), length of stay (p<0.005), drainage volume (p<0.01). Cheng et al., A systematic review and meta-analysis of Harmonic Focus in thyroidectomy compared to conventional techniques. Thyroid Research (2015) 8:15. (044269-180116)

2. Cheng H et al., Hospital costs associated with thyroidectomy performed with a Harmonic device compared to conventional techniques: a systematic review and meta-analysis. J Med Econ. 2016 Apr 5:1-9. [Epub ahead of print] 051511-160418

3. *Based on a meta‐analysis of HARMONIC FOCUS^® (HF) versus clamp, cut, and tie, where HF reduced operative time, intra‐operative blood loss,length of stay, drainage volume, and post‐operative pain via Visual Analogue Scale. Cheng et al., A systematic review and meta‐analysis of Harmonic Focus in thyroidectomy compared to conventional techniques. Thyroid Research (2015) 8:15. (114002-210340)

4. Device measurements based on a metrology study (Profile is clamp Arm + Pad + Blade Area .0079 sq‐in vs. .0098 sq‐in) (008810‐140121).

5. As compared to HARMONIC^® devices without Adaptive Tissue Technology. (041693‐210708).

Device Specifications and Comparisons

The HARMONIC FOCUS+ Shears with Adaptive Tissue Technology are indicated for soft tissue incisions when bleeding control and minimal thermal injury are desired. The instrument can be used as an adjunct to or substitute for electrosurgery, lasers, and steel scalpels in general, otorhinolaryngologic (ENT), plastic, pediatric, gynecologic, urologic, exposure to orthopedic structures (such as spine and joint space) and other open procedures.

Select Competitive Products: Medtronic Ligasure^™ Small Jaw, LigaSure^™ Exact, Sonicision^™

	Featured Product

	HARMONIC FOCUS^™+ Shears
Codes	HAR9F
Generator Required	GEN11
Handpieces Required	HARHPBL HPBLUE
Description	Ultrasonic shears, curved tip
Shaft Length	9cm
Jaw/Tip Configuration	Curved
Jaw Aperture*	21.31mm
Jaw Length*	16.1mm
Cut Length*	16.1mm
Jaw Width*	2.24mm
Handle Type	Scissor design
Vessel Indication	≤ 5mm and lymphatics
Device Technology	Ultrasonic energy, Adaptive Tissue Technology
Surgical Approach	Open
Qty./Box	6
