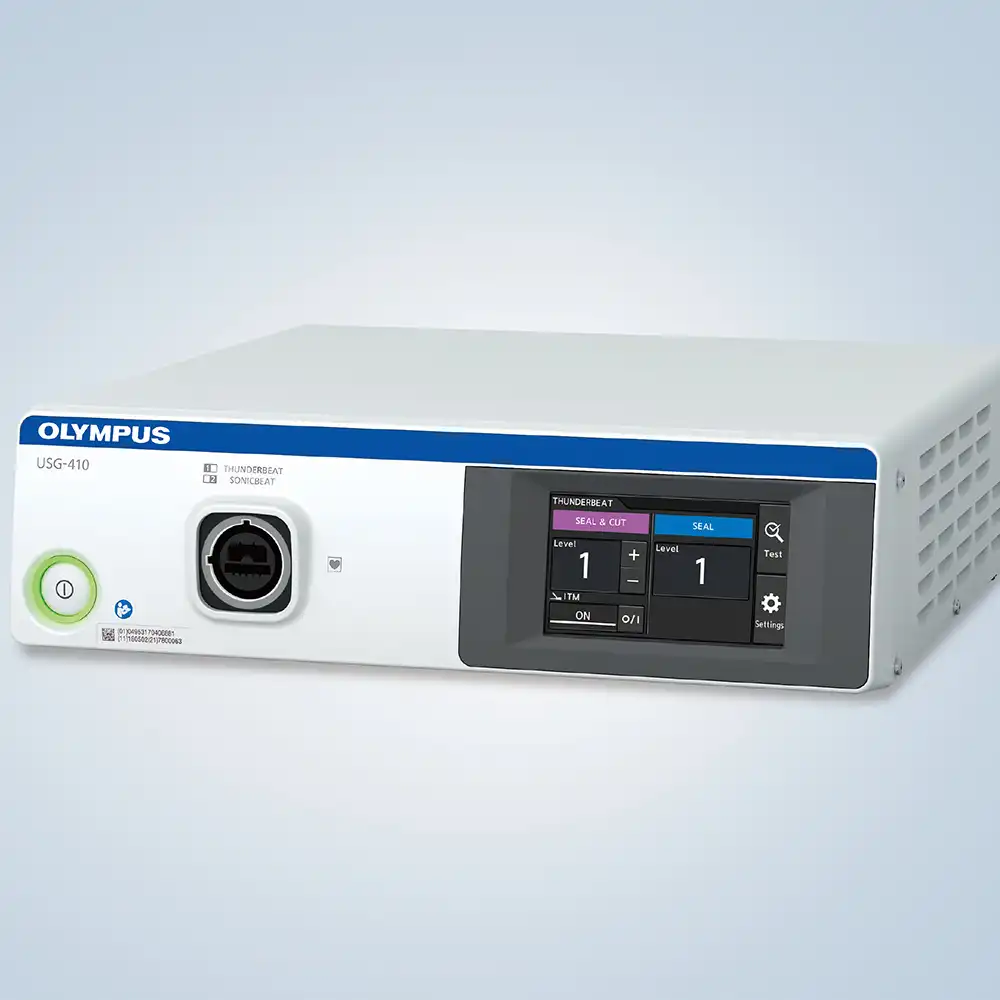

Olympus USG-410 Ultrasonic Generator

The USG-410 is the world’s first and smallest*1 generator which activates both hybrid (THUNDERBEAT) and ultrasonic (SONICBEAT) energy in a single unit. It still has the same 7 mm vessel reliable sealing and fast tissue-cutting capability as its legacy generators.*2

Phone:+86-21-54286005

Resources

USG-410_Brochure_EN

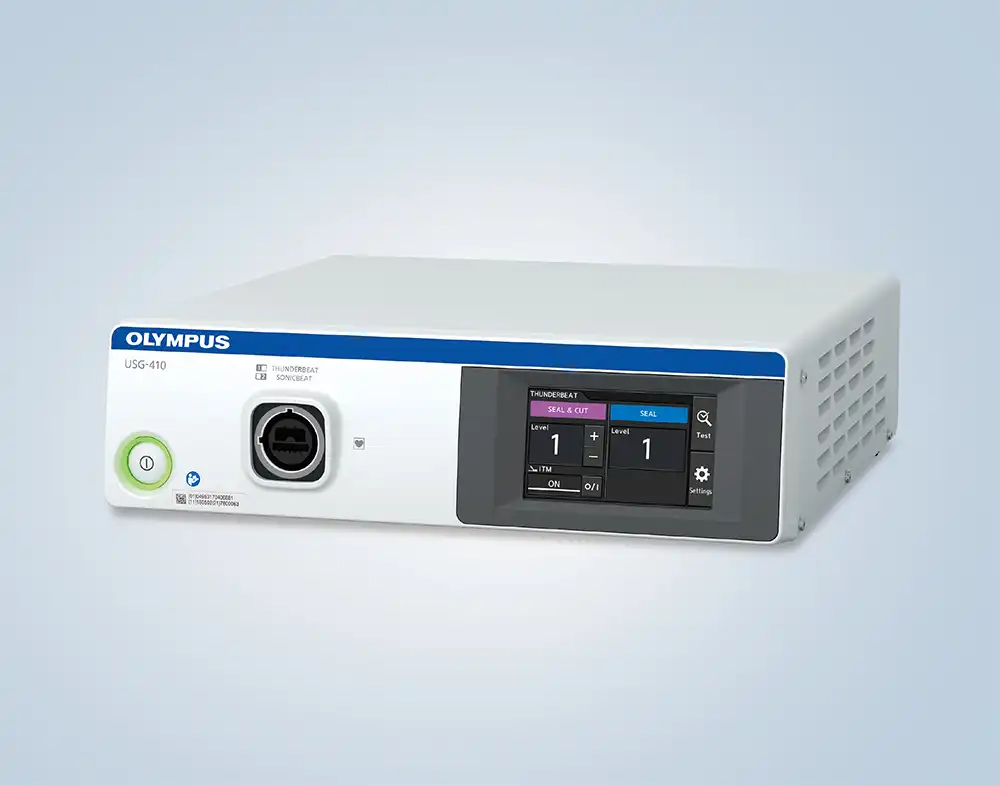

Olympus USG-410 Ultrasonic Generator

Ultrasonic and Bipolar Generator

USG-410



World’s First*1 Combined Energy Generator

The USG-410 is the world’s first*1 generator which activates both ultrasonic and bipolar energy simultaneously in a single unit, while maintaining the same 7mm reliable sealing and fast tissue-cutting capability as its legacy generators*2.



Stand-alone generator for
THUNDERBEAT & SONICBEAT Allows hospital to activate both THUNDERBEAT and SONICBEAT with a single generator.



Onsite Safety Verification with MAJ-2299
The USG-410 allows user to conduct electrical safety testing and output measurement.



34% Shorter Sealing Time
Up to 34% shorter sealing times compared to legacy generators.*3



Intelligent Tissue Monitoring
The unique Thermal Management technology helps to stop ultrasonic activation by detecting the tissue condition.



*1 As of November 2019.

*2 Ultrasonic Generator USG-400 and Electrosurgical Generator ESG-400

*3 Based on a benchtop test using vessels up to 2 mm comparing the SEAL mode’s
time of THUNDERBEAT Type S with USG-410 vs. Electrosurgical Generator ESG-400 and Ultrasonic Generator USG-400. (Both condition set under default level) (N=30, P<0.01)

Power Supply

Voltage

100-120/220-240 V AC/Within ±10%

Voltage fluctuation

Within ±10%

Frequency

50/60 Hz

Frequency fluctuation

Within ±1 Hz

Input

350 VA

Size

Dimensions

375(W) x 106(H) x 360(D) mm

Weight

9 kg

Classification (medical electrical equipment)

Type of protection against electric shock

Class I

Degree of protection against electric shock

CF type

Degree of protection against explosion

The ultrasonic generator should be kept away from flammable gases.

Output

Applicable instrument

THUNDERBEAT, SONICBEAT

ON/OFF operation

Footswitch, Handswitch

Output setting

Output setting and Intelligent Tissue Monitoring setting can be
changed on the touch screen of USG-410.

Frequency

47.0 kHz

GUI Language 29 languages English, Japanese, German, Chinese, French, Spanish, Italian,
Portuguese, Danish, Swedish, Greek, Czech, Lithuanian, Finnish,
Norwegian, Hungarian, Croatian, Slovenian, Dutch, Serbian,
Polish, Russian, Romanian, Turkish, Estonian, Latvian, Slovak,
Korean, Bulgarian



USG-410 Ordering information

USG-410 ULTRASONIC BIPOLAR GENERATOR


Option
MAJ-2299 Output Verification Adapter for USG-410
MAJ-2412 SONICBEAT Footswitch Connector
MAJ-1869 Footswitch for SONICBEAT
MAJ-1870 Footswitch for THUNDERBEAT
MAJ-1872 Communication cable 10 m*4
MAJ-1873 Adapter for UHI-2/3
TC-E410 Energy Cart



*4 Required for the automatic mist and smoke evacuation function.
