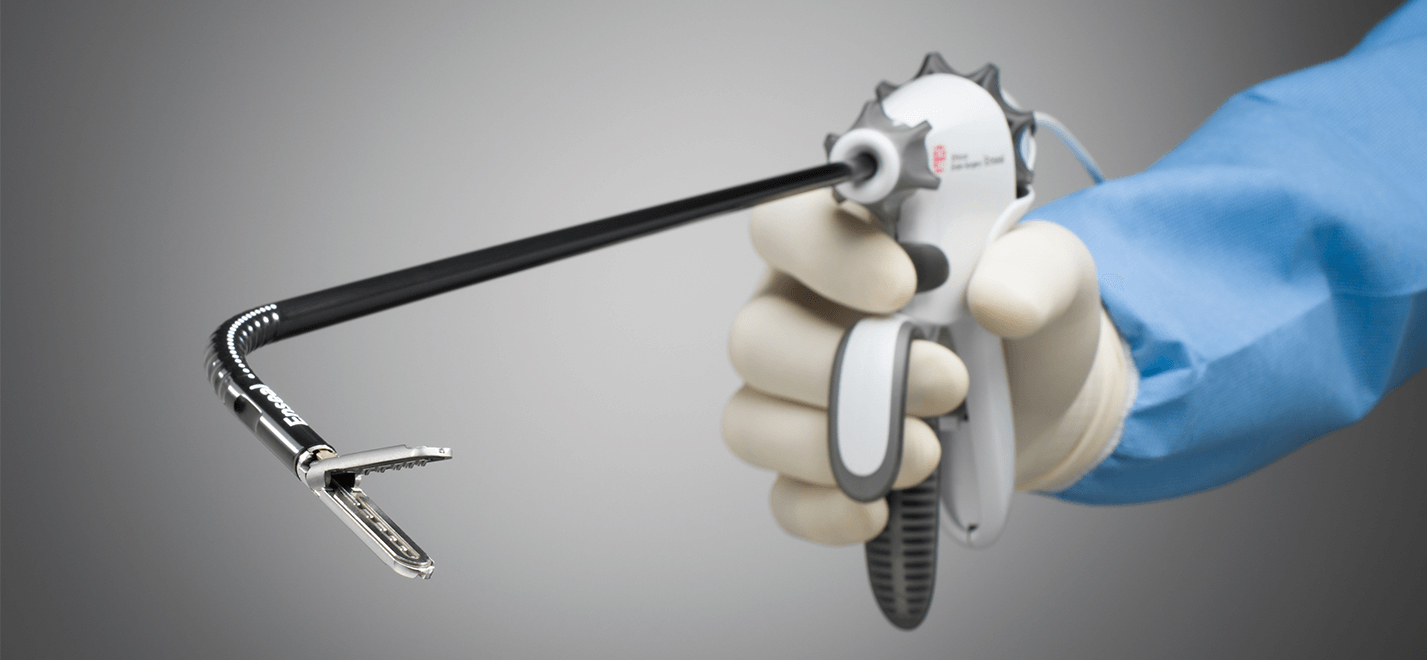

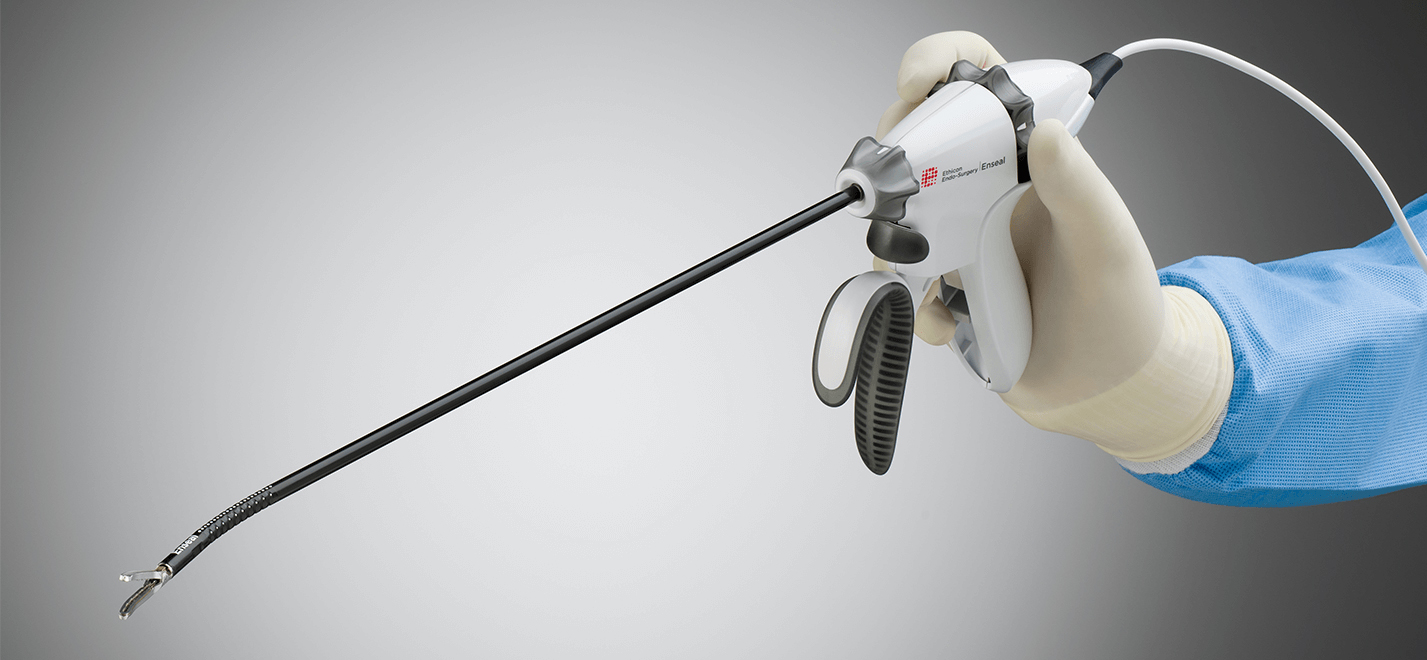

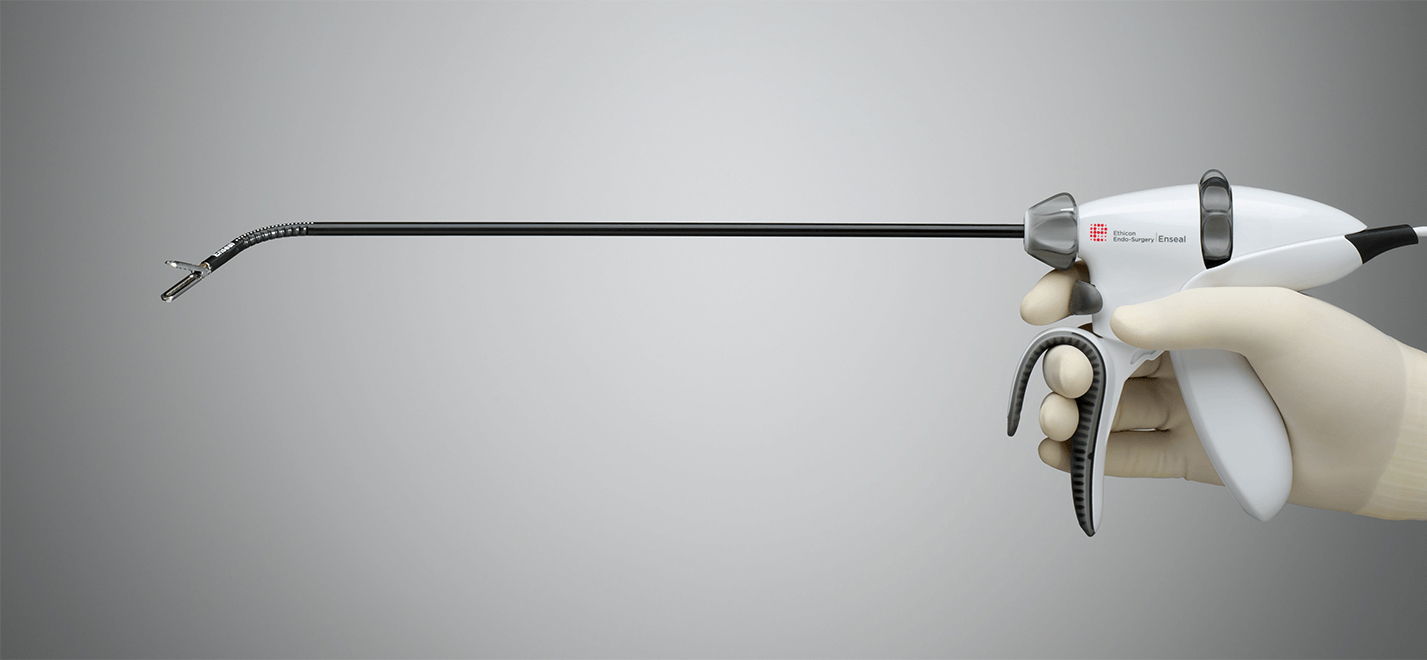

ETHICON ENSEAL^™ G2 Articulating Tissue Sealer

Better access for hard-to-reach areas.¹ The ENSEAL G2 Articulating Tissue Sealer is an advanced bipolar device with 360º rotation and 110º articulation - providing a perpendicular approach to vessel sealing, even in challenging anatomy.^1,2

Features & Benefits

Secure Seal

The ENSEAL G2 Articulating Tissue Sealers enable a perpendicular approach to vessel sealing, which is shown to be 51% stronger than vessels sealed at a 45 degree angle.³

Seal

Access

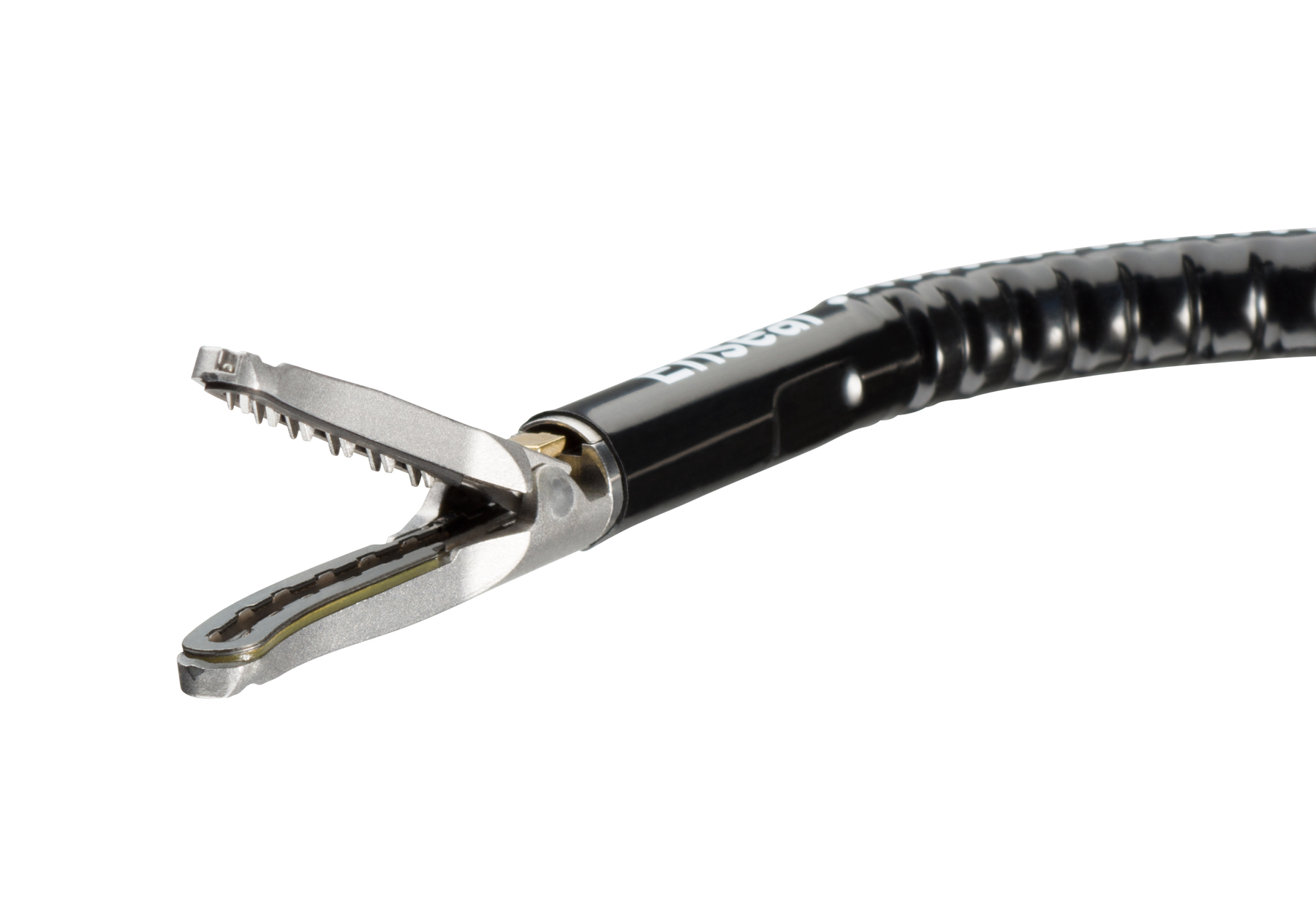

110º of articulation⁴ allows for greater ability to maneuver around corners and behind structures; which is especially valuable when attempting to access tissue in deep and tight spaces.¹

Versatility

The combination of articulation and shaft rotation allows for greater versatility; which may reduce the number of instrument exchanges between ports when compared to non-articulating devices.⁵

Versatility

References

1. Compared to a non‐articulating device. (078754‐170817).

2. (075516‐170629).

3. ENSEAL™ devices tested in a benchtop study on 5‐7mm porcine carotid arteries. With NSLG2C35A devices, median burst pressures were 51% higher for vessels sealed at a 90° angle compared to vessels sealed at a 45° angle (p=0.0007). With NSLG2S35A devices, mean burst pressures were 29% higher for vessels sealed at a 90° angle compared to vessels sealed at a 45° angle (p=0.001). (033283‐210218).

4. (014961-210120).

5. (070630‐170406).

	Featured Product

	ENSEAL™ G2 Articulating Tissue Sealer

Codes	NSLG2C35A, NSLG2C45A, NSLG2S35A, NSLG2S45A
Compatible With	GEN11
Shaft Diameter	5mm
Shaft Length	35cm 45cm
Jaw/Tip Configuration	Curved (C) Straight (S)
Jaw Aperture*	13.6mm (C) 11.9mm (S)
Jaw Length*	19mm (C) 20mm (S)
Cut Length*	16mm (C & S)
Jaw Width*	3mm (C) 5mm (S)
Articulation	110º
Vessel Indication (Diameter)	≤ 7mm
Device Technology	PTC (Positive Temperature Coefficient)
Surgical Approach	Open & Laparoscopic
Qty./Box	6
