Nexcope Upright Biological Microscope NE910

Location：Home > Our Product > Microsystem > Up-Microscope > Nexcope Upright Biological Microscope NE910

Nexcope Upright Biological Microscope NE910

Phone：+86-21-54286005

Resources

Nexcope NE900_Series_Brochure_CN

Nexcope NE900_Series_Brochure_EN

Overview Specifications Dimensions

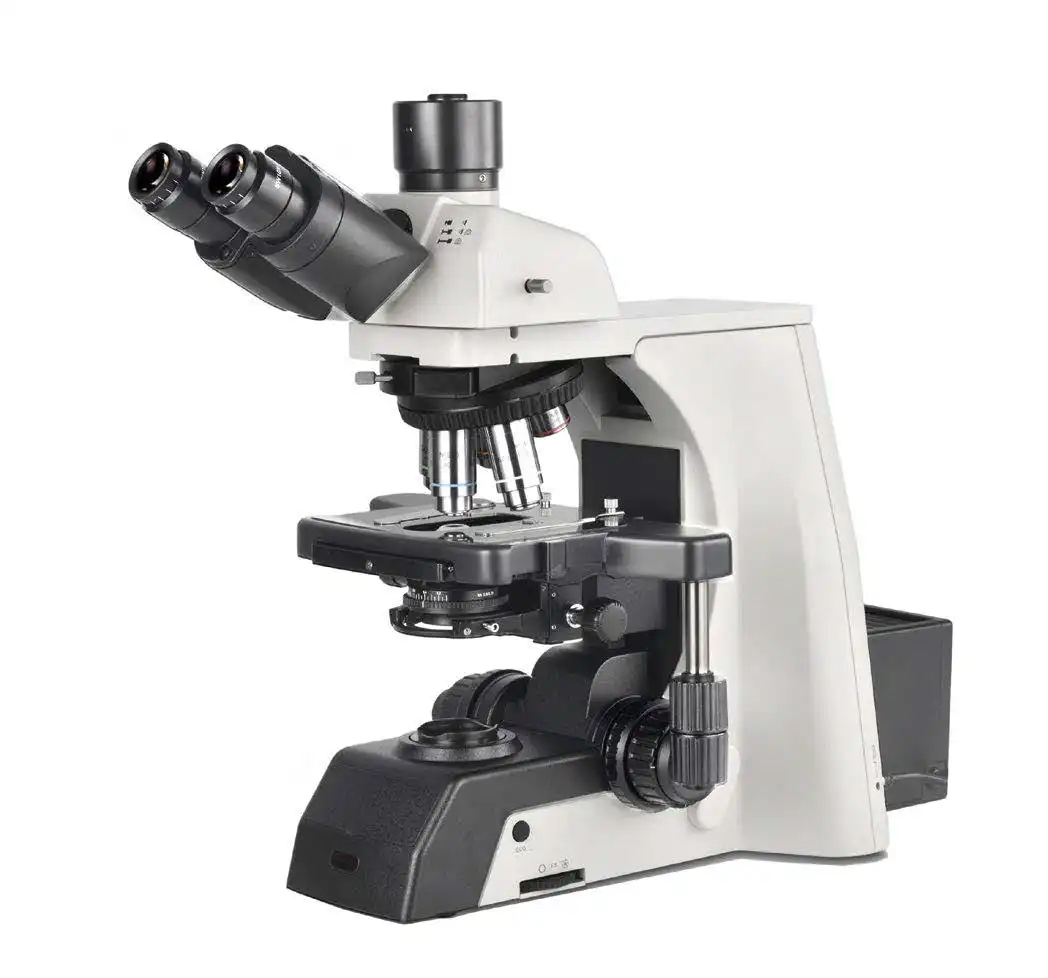

NE910

The excellent optical performance and comfortable operation makes it possible to realize many kinds of observation methods. And the perfect Kohler lighting provides a bright and uniform field of view for the microscope. On this basis, Nexcope continues to optimize the customer product experience, NE910 in line with ergonomic design, so that observation and operation can maintain a comfortable posture.

NE910

Easy to Customize

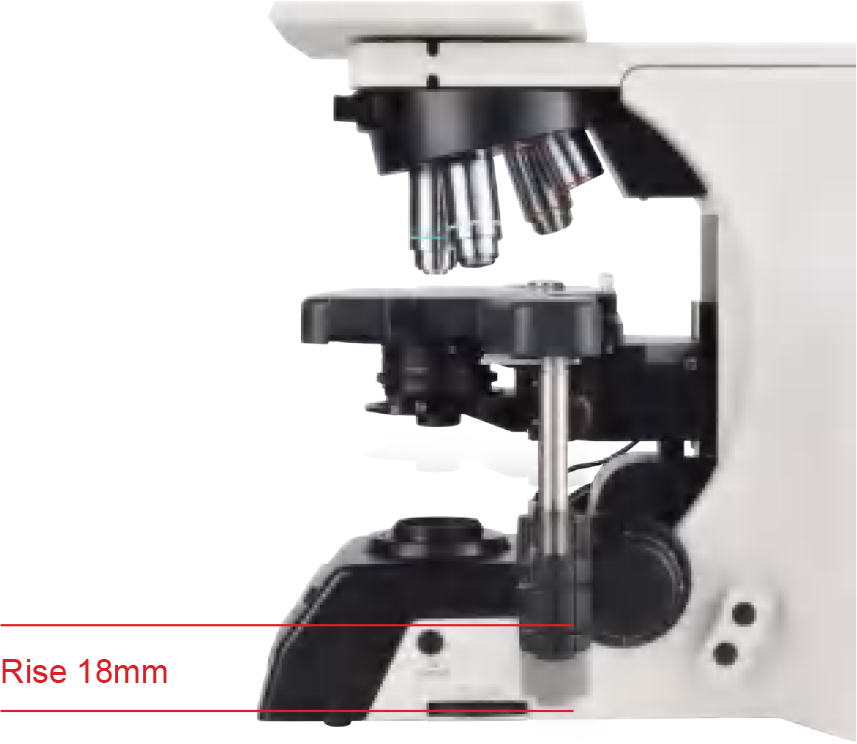

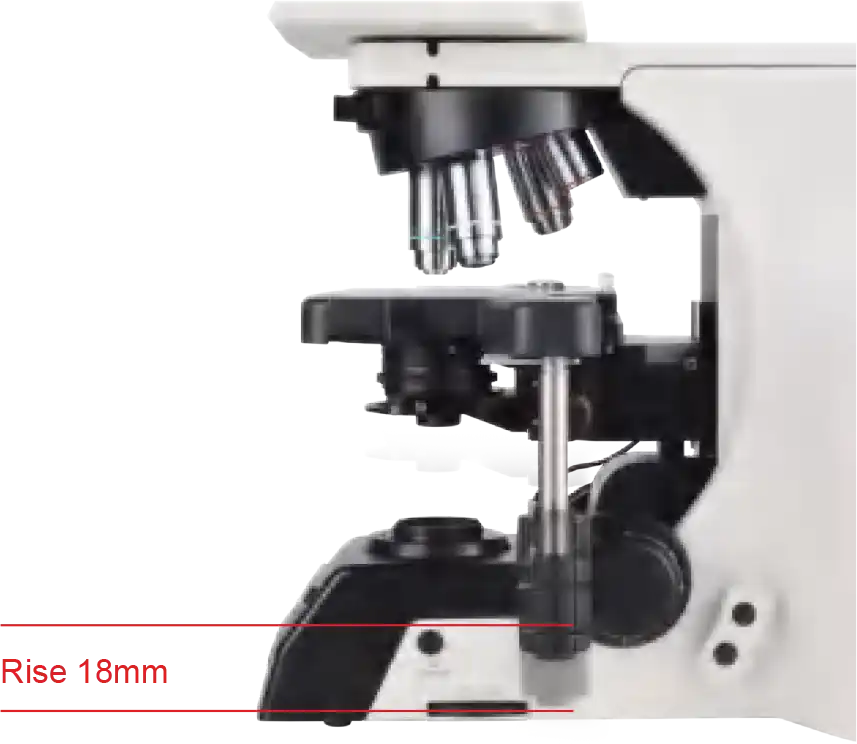

Adjustable Control Knobs

The height of the stage control knobs can be adjusted up or down by 18mm to ensure a comfortable hand position, and with adjustable tension control.

Adjustable Control Knobs

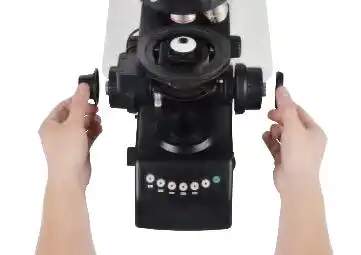

The Left / Right Hand Position Operate

Customers can choose the position of the fine focusing knob to be right or left, according to preferences.

The Left / Right Hand Position Operate

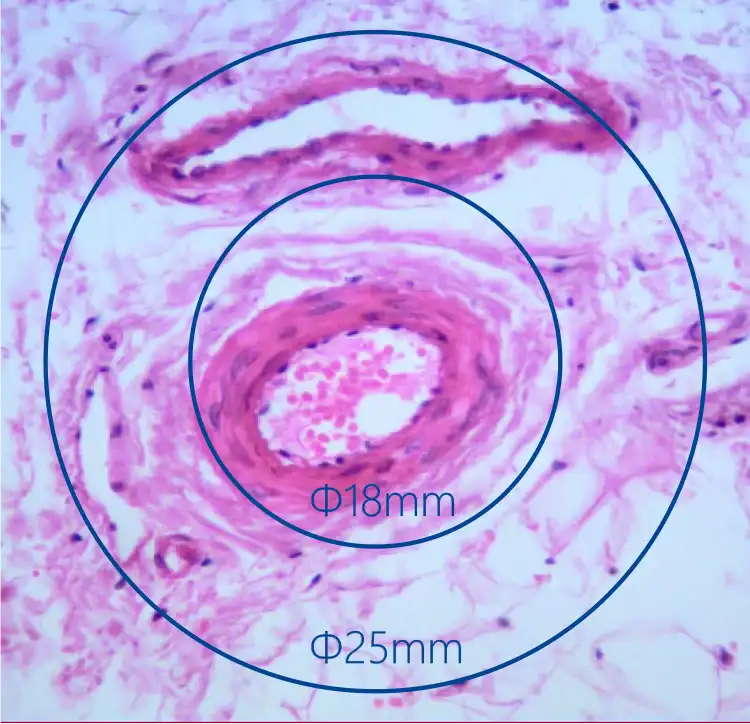

Wide-field Eyepiece

NE910 uses a large field of view eyepiece with field of view 25mm. The field of view is larger, the observation content is more comprehensive, and the sample observation is faster. For samples that require panoramic views, a microscope with a large field of view is a more correct choice.

Wide-field Eyepiece

Comfortable to Use and Easy to Operate

Put Slides by One Hand

It is easy for operators to put slides by one hand due to the convex point place design on clip.

Put Slides by One Hand

Adapter to Lower Stage Position

To lower the stage by 1“, by adding a block up the nosepiece, so that operators can change the slides position easily and comfortably.

Adapter to Lower Stage Position

Low-position Control Knobs

Ergonomic design, to give you the maximum degree of comfort.

低手位调焦机构

		NE910
Main Body	Optical System	NIS Infinity Optical System
	Eyepiece	SW10x/25, SW10x/22, EW12.5x/17.5, WF15x/16, WF20x/12
	Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 1 um, Moving Range 35mm
	Illumination	12V/100W Halogen Lamp 3W S-LED Lamp
Viewing Head		- GC900B Seidentopf Binocular Viewing Head; - GC900 Seidentopf Trinocular Viewing Head, Eyepiece/Port: 100/0, 20/80, 0/100 Inclined at 30° , Interpupillary Distance 47-78mm - GC900E-1/-2 Ergo Tilting Trinocular Viewing Head, Eyepiece/Port: 100/0, 20/80, 0/100 Adjustable from 0° to 35° , Interpupillary Distance 47-78mm
Nosepiece		SZ21A Sextuple Nosepiece
Stage		- PT6A-L/R Stage with Gorilla Glass Insert - PT6B-L/R Stage with Sapphire Glass Insert Moving distance:78(X)x32(Y)mm, 1mm/grid, precision: 0.1mm; The stage control knobs can be adjusted up or down by 18mm, and with adjustable tension control; The convex spot design on clip is convenient to place slides with one hand.
Condenser		- SJ5 Swing-out Condenser - XC8 Turret PH Condenser - DFC Dry Dark-field Condenser - DFC-O Oil Dark-field Condenser
Optional observation model		Brightfield, Fluorescence, Darkfield, Phase Contrast, Polarization, DIC
