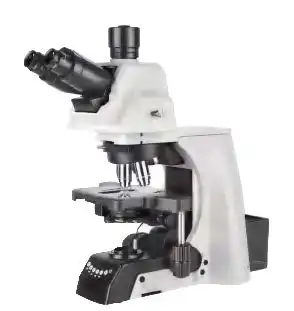

Nexcope Upright Biological Microscope NE930
Phone：+86-21-54286005
NE930
On the basis of NE910, a variety of electric components are added, which simplifies the repetitive operation,improves the Nexcope series microscope, intelligent product, is designed to bring revolutionary breakthrough for laboratory and clinical microscope operation and application. The NE930, on the basis of ensuring excellent optical performance and exquisite human engineering design, adds a plurality of convenient and humanized designs so that the microscopic observation is more comfortable, the magnification conversion is more convenient,and the image shooting is more rapid.
Microscopic observation is more comfortable

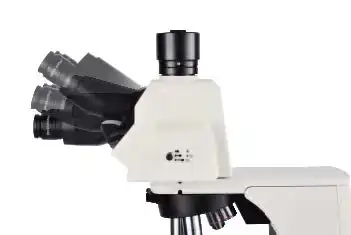

Ergo Tilting Trinocular Head
Eye tube can be adjustable from 0 ° to 35 °, Trinocular tube can be connected to SLR camera and digital camera, having a 3-postion beam splitter (0.100, 100: 0, 80:20), the splitter bar can be assembled on the either side according to user's requirement.

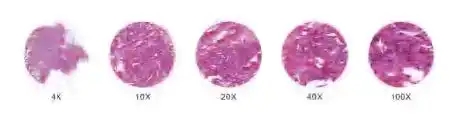

Light Intensity Management Function
When converting objective lenses with different magnification, the illumination intensity needs to be adjusted to ensure the same illumination brightness in the Þeld under different magniÞcation. NE930 can intelligently remember the appropriate light intensity under different magniÞcation, and automatically adjust with the change of objective lens magniÞcation, it can reducing fatigue.
Easier to Get Image

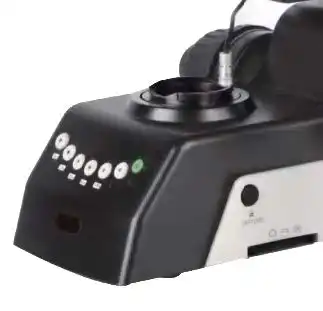

Image Capture Button
The digital camera could capture images just by pressing the black“capture”button at the side of the bottom of the microscope body.
The Conversion Rate is More Convenient
Remote Control Pad
Objectives could be switched by simply pressing the rotating used objectives User could swap between these two objectives by pressing the green button.
Nosepiece Rotating Buttons
This microscope has the function of automatically rotating nosepieces and adjusting the light intensity.
Motorized Swing-out Condenser
Automatically swing-out and swing-in the top-lens element according to the objective lens that is selected via the intelligent linking.
|
|
NE930 |
|
|
Main Body |
Optical System |
NIS Infinity Optical System |
|
Eyepiece |
SW10x/25, SW10x/22, EW12.5x/17.5, WF15x/16, WF20x/12 |
|
|
Focusing System |
Coaxial Coarse and Fine Adjustment, Fine Division 1 um, Moving Range 35mm |
|
|
Illumination |
12V/100W Halogen Lamp |
|
|
Viewing Head |
- GC900B Seidentopf Binocular Viewing Head; |
|
|
Nosepiece |
SZA20A Motorized Sextuple Nosepiece |
|
|
Stage |
- PT6A-L/R Stage with Gorilla Glass Insert |
|
|
Condenser |
-SJ7 Motorized Condenser |
|
|
Optional observation model |
Brightfield, Fluorescence, Darkfield, Phase Contrast, Polarization, DIC |
|
NE930 Dimensions Unit: mm
