Nexcope Upright Fluorescence Microscope NE950

Location：Home > Our Product > Microsystem > Up-Microscope > Nexcope Upright Fluorescence Microscope NE950

Nexcope Upright Fluorescence Microscope NE950

Phone：+86-21-54286005

Resources

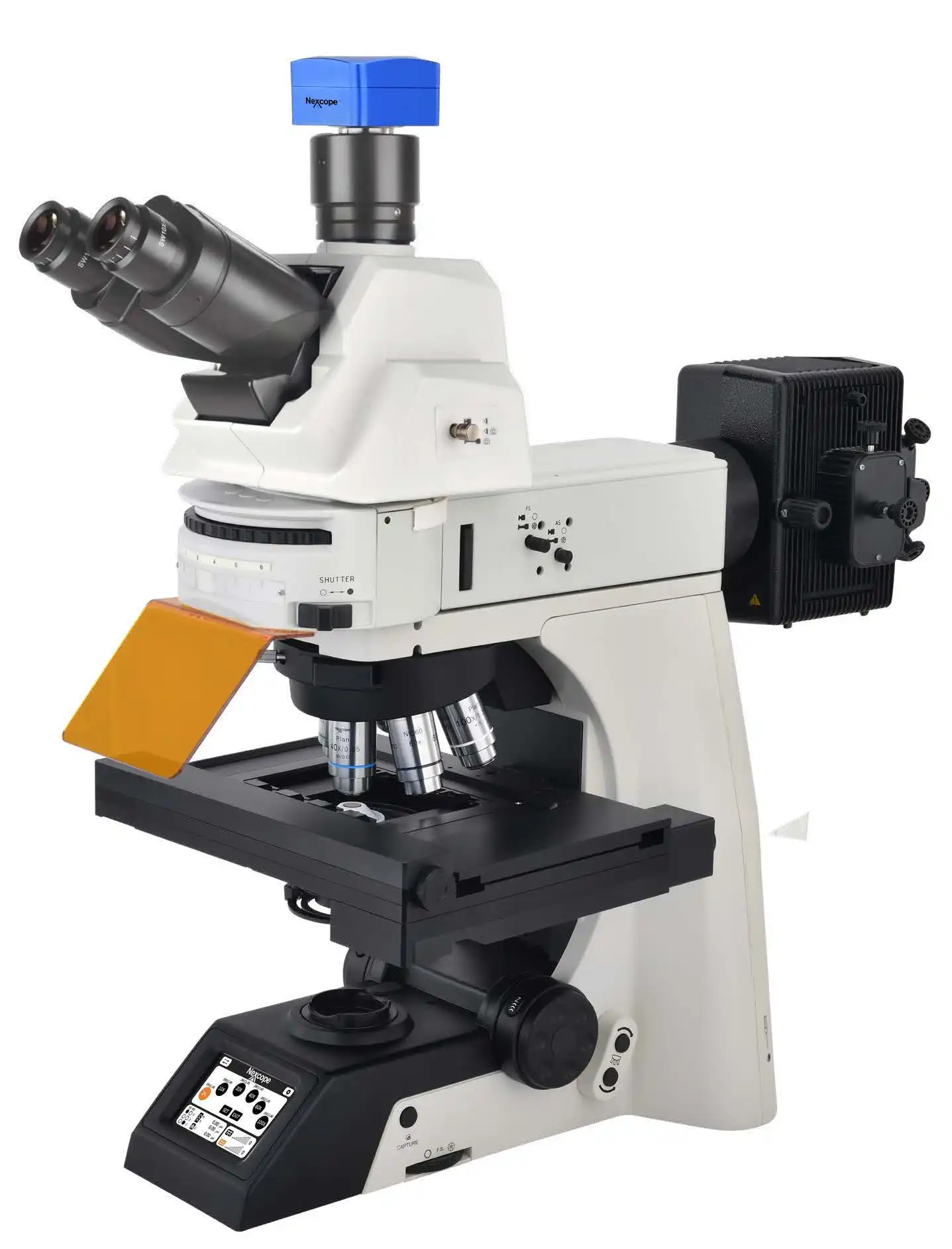

NE950

On the basis of NE930, a reflective fluorescent vertical illuminatoris added, At the same time, high numerical aperture, highdefinition semi-complex achromatic fluorescent objective lensand high cutoff and high transmittance fluorescent filter groupare used to produce fluorescent images with bright color anddark background.

NE950

Clearer and Brighter Image

Nexcope has devoted many years to the studyof fluorescence imaging. The infinite S-APOfluorescent objective is used in NE950 to ensurethe sharpness, clarity and color reduction of theimage. At the same time, the latest advanced sub-corrugation elimination coating technologyis adopted, so the apparent fluorescencetransmittance is higher, the cutoff is moreacute and the testing efficiency is higher. ltis the correct choice for visible to ultraviolet fluorescence imaging

Clearer and Brighter Image

Microscopic Observation is More Comfortable

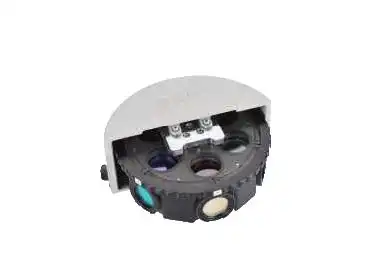

Turret Filter Module

The fluorescent turntable can install 6 color filter groups and canimage the specimens with multiple staining at the same time.At the same time, the conversion excitation module only needsa small dial, which is convenient and fast, impfoves the workingefficiency and effectively reduces the dye quenching.

Turret Filter Module

Epi-Fluoresent Attachment

Standard osram 100W HBO ultra-high pressure spherical mercurylamp, high fluorescence brightness, uniform field of view.

Epi-Fluoresent Attachment

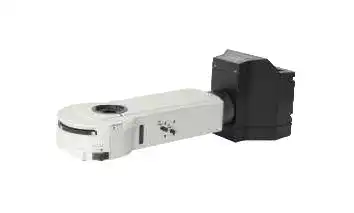

Metal Halide Illumination

Optional 75W metal halide illumination, bulb life up to 2000hours. The intensity of light is greater and the field of viewis brighter and more uniform,

Metal Halide Illumination

Focus on Detail and Extend Service Life

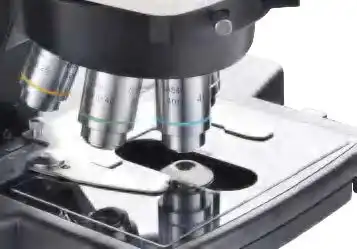

Sapphire Glass Stage Insert

Mechanical stage with a gorilla glass insert is endurable and allows operators to easily clear the stage. We have sapphire glass for your optional choice.

Sapphire Glass Stage Insert

Intelligent Fluorescent Power Supplier

Automatic memory time and shutdown time, when misoperatedeffectively protect the service life of mercury lamp.

Intelligent Fluorescent Power Supplier

		NE950
Main Body	Optical System	NIS Infinity Optical System
	Eyepiece	SW10x/25, SW10x/22, EW12.5x/17.5, WF15x/16, WF20x/12
	Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 1 um, Moving Range 35mm
	Illumination	12V/100W Halogen Lamp 3W S-LED Lamp
Viewing Head		- GC900B Seidentopf Binocular Viewing Head; - GC900 Seidentopf Trinocular Viewing Head, Eyepiece/Port: 100/0, 20/80, 0/100 Inclined at 30° , Interpupillary Distance 47-78mm - GC900E-1/-2 Ergo Tilting Trinocular Viewing Head, Eyepiece/Port: 100/0, 20/80, 0/100 Adjustable from 0° to 35° , Interpupillary Distance 47-78mm
Nosepiece		SZA20A Motorized Sextuple Nosepiece
Stage		- PT6A-L/R Stage with Gorilla Glass Insert - PT6B-L/R Stage with Sapphire Glass Insert Moving distance:78(X)x32(Y)mm, 1mm/grid, precision: 0.1mm; The stage control knobs can be adjusted up or down by 18mm, and with adjustable tension control; The convex spot design on clip is convenient to place slides with one hand.
Condenser		-SJ7 Motorized Condenser
Epi-Fluorescent Attachment		- FL-VI Epi-Fluorescent Attachment
Fluorescent Illumination		- Osram Mercury Lamp HBO 100W - Metal halide illumination 75W - LED FL
Optional observation model		Brightfield, Fluorescence, Darkfield, Phase Contrast, Polarization, DIC
