HAR36/HAR23 ETHICON HARMONIC ACE®+ SHEARS

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

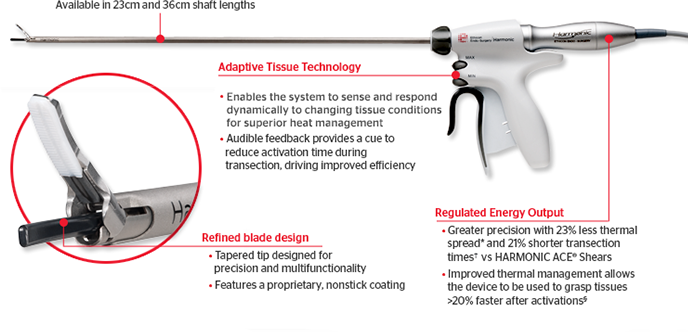

HARMONIC ACE®+ Shears with Adaptive Tissue Technology
Enhanced precision vs HARMONIC ACE® Shears

23% less thermal spread¹ reduces tissue damage to surrounding vital structures
21% shorter transection times² with the same reliable hemostasis you expect from HARMONIC ACE®
Refined blade design enables precision in dissection, sealing, transection, grasping, and otomy creation Advanced energy delivery through Adaptive Tissue Technology
New technology responds intelligently to tissue conditions for greater precision
Regulates energy delivery when needed for improved temperature management
A tone change signals when Adaptive Tissue Technology is regulating energy delivery,thereby improving efficiency with enhanced feedback
The surgeon retains ultimate control over the device
Adaptive Tissue Technology provides the benefits of greater precision without compromisingthe surgeon’s control of device function

HARMONIC ACE®+ Shears:
The precision of advanced energy delivery

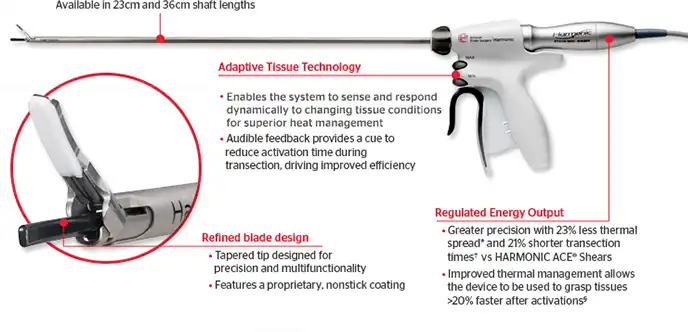

The precision of advanced energy delivery

¹ 23% less thermal spread exhibited in porcine histology vs HARMONIC ACE® Shears without Adaptive Tissue Technology (1.7mm vs 2.2mm; P<0.001).
² 21% shorter transection times measured in porcine labs vs HARMONIC ACE® Shears without Adaptive Tissue Technology (4.5s vs 5.7s;P<0.001).
³ In a benchtop study on Power Level 5, HAR36 and HAR23 exhibited 30.1% and 34.2% lower mean (P=0.000) and median (P=0.000)blade heat, respectively, than HARMONIC ACE® Shears without Adaptive Tissue Technology.

Additional Specifications
	HAR36	HAR23
Description	Ultrasonic shears, Curved tip	Ultrasonic shears, Curved tip
Brand	HARMONIC ACE®	HARMONIC ACE®
Subcategory	Ultrasonic Shears	Ultrasonic Shears
Diameter	5mm	5mm
Length	36cm	23cm
Jaw/Tip Configuration	Curved	Curved
Surgical Approach	Laparoscopic	Open
Category	Energy Sealing and Dissecting	Energy Sealing and Dissecting
QTY/BX	6	6
