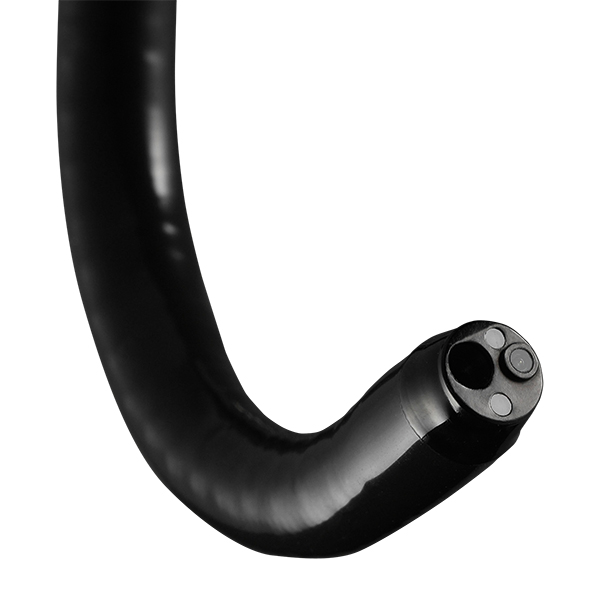

FUJIFILM EB-580S Standard Bronchoscope

The EB-580S, equipped with an optical lens and a Fujifilm high resolution image sensor for vivid and high quality images, can obtain a wide range of data for accurate endoscopic examination and diagnosis.

Phone：+86-21-54286005

Resources

EB-580S_EB-580T_Brochure_EN

Overview Specifications Dimensions

EB-580 S Standard Bronchoscope

EB-580S

2.2 mm working channel for faster suction power
Faster suctioning offers quicker vision recovery, even during bleeding and taking biopsy. The strengthened tube of the working channel can improve durability.

210° up angle provides great approach ability
Excellent bending capability (up angle: 210°) can improve reachability, especially to the upper lobe bronchus (B1-B3).

580 Super CCD & Close Focus (2 mm)
can achieve increased secure screening and a more precise diagnosis of bronchial lesion and lung cancer.

Viewing direction	0° (Forward)
Field of view	120°
Observation range	2-100 mm
Bending capacity	Up 210° / Down 130°
Distal end ø	5.3 mm
Flexible section ø	5.1 mm
Forceps channel ø	2.2 mm
Working length	600 mm
Total length	870 mm
LASER blocking filter	Diode LASER (810 nm)
