Olympus BF-MP290F Video Bronchoscope

EVIS LUCERA ELITE Bronchoscope BF-MP290F

Phone:+86-21-54286005

Resources

BF-MP290F_Brochure_EN

EVIS LUCERA ELITE Bronchoscope BF-MP290F

The interest in peripheral bronchoscopy is growing among pulmonologists. Technologies such as radial EBUS, the GuideSheathKit approach, and the use of navigation systems have also helped to improve confidence in diagnosing remote tumours. Olympus supports the interventional pulmonologist and continuously develops devices to improve diagnostics in the lung. BF-MP290F accesses deep lung areas, approaches the lesion, and provides compatibility to confirm the lesion using radial ultrasound.

BF-MP290F



Slim Design

The unique design, combining fiber optics with a video chip in the handle of the bronchoscope, provides an optimal ratio of outer diameter to working-channel size. With the BF-MP290F, a 3.0 mm distal-end outer diameter is combined with a 1.7 mm working-channel diameter. This scope facilitates access to peripheral lung regions for effective diagnostics.

Slim Design

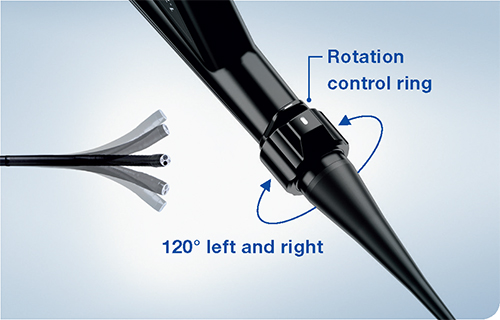

Insertion Tube Rotation Function

The insertion tube can be rotated left or right up to 120˚ by simply turning a ring on the control section of the scope. This supports easier operation and smoother insertion of the miniature probe and sampling devices and can provide easier access to the biopsy port during the procedure.

Insertion Tube Rotation Function

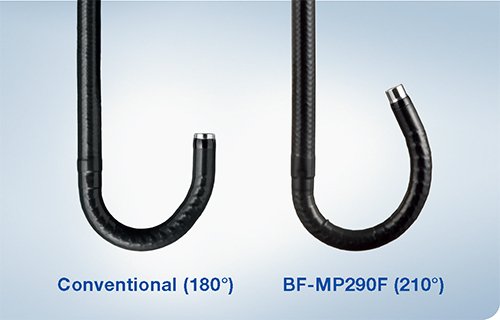

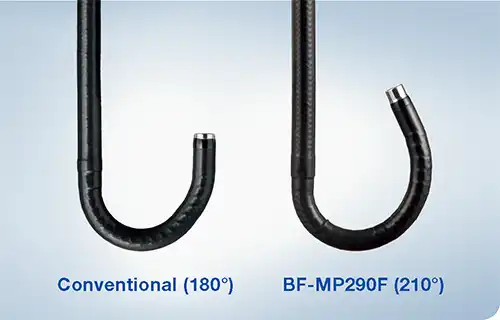

Wider Angulation Range

An upward angulation range of 210° supports smoother insertion into the upper-lobe bronchi and allows more of a bend in the scope when an EndoTherapy device is inserted into the endoscope’s working channel.

Wider Angulation Range



Targeting and Sampling Device Portfolio

The slim Olympus 1.7 mm ultrasound miniature probe is compatible with the scope’s working channel as well as a cytology brush and biopsy forceps for effective confirmation and sampling in peripheral lung regions.

Targeting and Sampling Device Portfolio



Waterproof One-Touch Connector
A new connector design minimises the effort required for set up prior to and in between cases. In addition, it is fully submersible without a water-resistant cap and eliminates the associated risk of an expensive repair due to accidental immersion.

Waterproof One-Touch Connector



BF-MP290F
Optical system Field of view

90°

Direction of view Forward viewing
Depth of fi eld

2-50 mm

Insertion section Distal end outer diameter 3.0 mm
Insertion tube outer diameter

3.7 mm

Working length 600 mm
Instrument channel Channel inner diameter

1.7 mm

Minimum visible distance 2.0 mm from the distal end
Bending section Angulation range

Right: 120°, left: 120°

UP 210°,Down 130°

Compatible
EVIS LUCERA system
  Video system center OLYMPUS CV-290
Xenon light source OLYMPUS CLV-290SL
