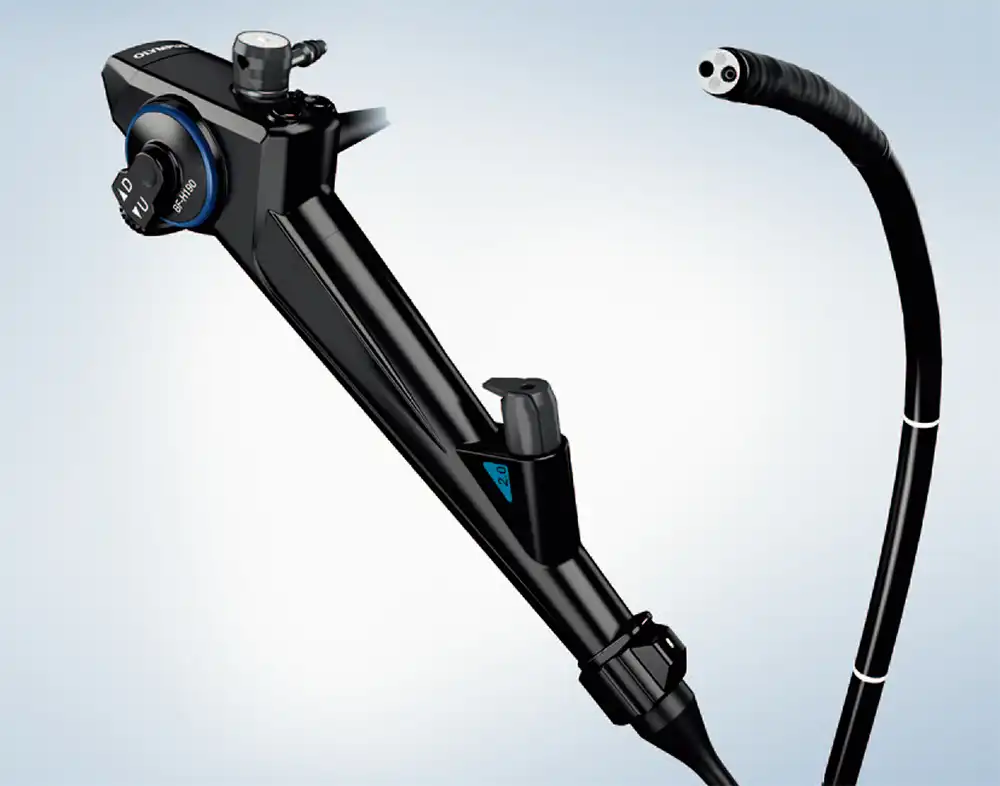

Olympus BF-H190 Video Bronchoscope

The diagnostic videobronchoscope BF-H190 provides HDTV image quality. BF-H190 also features the unique insertion tube rotation function.

Phone：+86-21-54286005

Resources

BF-H190_Brochure_EN

Overview Specifications Dimensions

EVIS EXERA III BF-H190 Therapeutic Video Bronchoscope

Diagnostic bronchoscope with superb HDTV image quality and a 2.0 mm instrument channel.

BF-H190

Main features
HDTV
Superb HDTV images enable more detailed observation of bronchial surfaces.

HDTV

NBI (Narrow Band Imaging)
NBI is an optical image enhancement technology that improves the visualisation of vessels on the mucosal surface. NBI is now 50% brighter compared to previous models.

NBI

Electronic magnifi cation
Electronic magnification of 1.2× and 1.5× is now possible, allowing closer observation.

Insertion tube rotation function
The insertion tube can be rotated left or right up to 120 degrees by simply turning a ring on the control section of the scope. This supports easier operation and smoother insertion with less operator fatigue.

Wider angulation range
An upward angulation range of 210 degrees supports smoother insertion into the upper lobe bronchi and allows more of a bend in the scope when an EndoTherapy device is inserted in the endoscope’s working channel.

Waterproof One-touch Connector
A new connector design minimises the effort required for set-up prior to and in between cases. In addition, it is fully submersible without a water-resistant cap and eliminates the associated risk of an expensive repair due to accidental immersion.

Waterproof One-touch Connector

Ergonomic scope cable direction
The angle of direction of the universal cord has been improved so that the scope cable does not hang limp,even if the video system is located behind the bronchoscopist.

	BF-H190
Optical system	Field of view	120°
	Direction of view	Forward viewing
	Depth of fi eld	3-100 mm
Insertion section	Distal end outer diameter	5.5 mm
	Insertion tube outer diameter	5.1 mm
	Working length	600 mm
Instrument channel	Channel inner diameter	2.0 mm
Instrument channel	Minimum visible distance	3.0 mm from the distal end
Bending section	Angulation range	UP 210° Down 130°
Laser compatibility		Nd: YAG, 810 nm diode
Compatible EVIS EXERA system		Video system center OLYMPUS CV-190 Xenon light source OLYMPUS CLV-190
