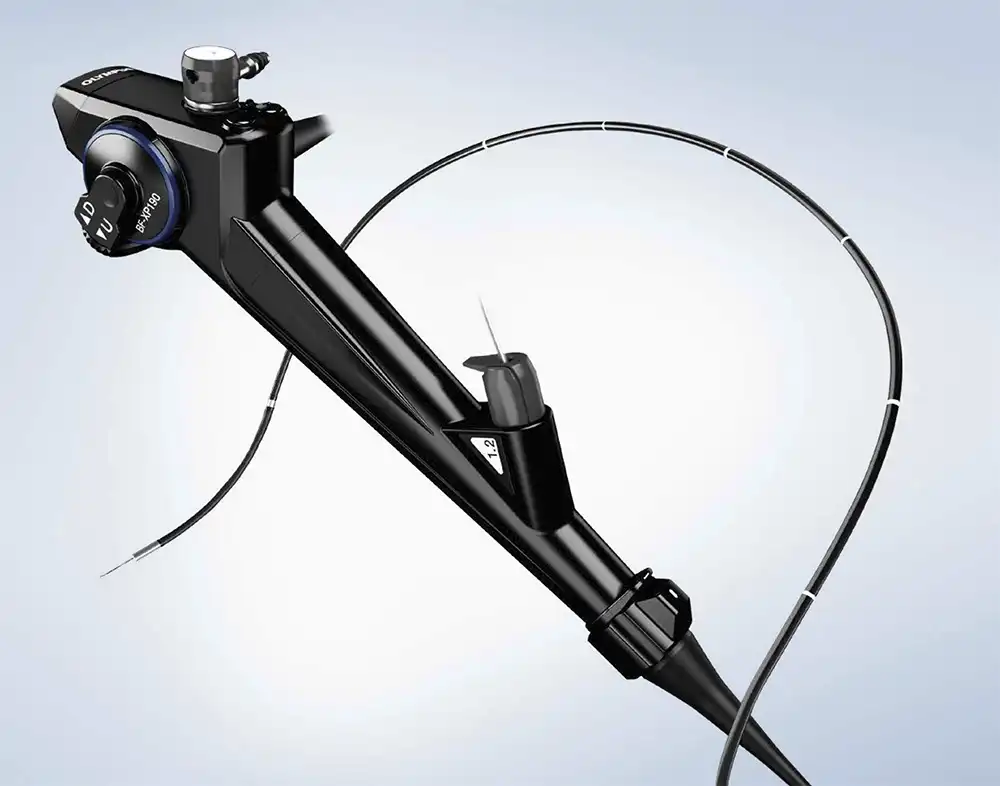

中文Olympus BF-XP190 Ultra-Slim Video Bronchoscope
The ultra-thin BF-XP190 allows sampling from distant lung areas or within small anatomies. BF-XP190 also features the unique "rotation function."
Phone：+86-21-54286005
Resources
BF-XP190_Brochure_EN
BF-XP190_Brochure_EN
EVIS EXERA III BF-XP190 Ultra-Slim Video Bronchoscope
Ultraslim 3.1 mm Bronchoscope for Diagnostics of the Thinnest Bronchi
Main features
Ultraslim Videoscope
Newly developed CCD on the tip realizes drastically improved image quality while maintaining an ultraslim diameter and a 1.2 mm instrument channel.
NBI (Narrow Band Imaging)
NBI is an optical image enhancement technology that improves the visualisation of vessels on the mucosal surface. NBI is now 50% brighter compared to previous models.
Electronic magnifi cation
Electronic magnification of 1.2× and 1.5× is now possible, allowing closer observation.
Insertion tube rotation function
The insertion tube can be rotated left or right up to 120 degrees by simply turning a ring on the control section of the scope. This supports easier operation and smoother insertion with less operator fatigue.
Wider angulation range
An upward angulation range of 210° supports smoother insertion into the upper-lobe bronchi and allows more of a bend in the scope when an EndoTherapy device is inserted into the endoscope’s working channel.
Waterproof One-touch Connector
A new connector design minimises the effort required for set-up prior to and in between cases. In addition, it is fully submersible without a water-resistant cap and eliminates the associated risk of an expensive repair due to accidental immersion.
Ergonomic scope cable direction
The angle of direction of the universal cord has been improved so that the scope cable does not hang limp,even if the video system is located behind the bronchoscopist.
|
|
BF-XP190 | |
| Optical system | Field of view |
110° |
| Direction of view | Forward viewing | |
| Depth of fi eld |
2-50 mm |
|
| Insertion section | Distal end outer diameter | 3.1 mm (tapered part of distal tip 2.9 mm) |
| Insertion tube outer diameter |
2.8 mm |
|
| Working length | 600 mm | |
| Instrument channel | Channel inner diameter |
1.2 mm |
| Minimum visible distance | 1.5 mm from the distal end | |
| Bending section | Angulation range |
UP 210° |
| Compatible EVIS EXERA system |
Video system center OLYMPUS CV-190 Xenon light source OLYMPUS CLV-190 |
|
