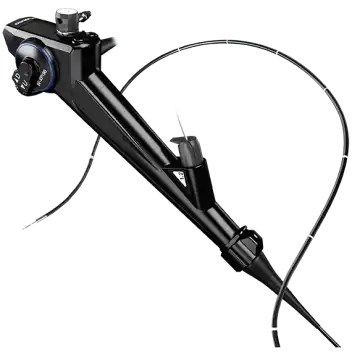

Olympus BF-P290 Ultra-Slim Video Bronchoscope

BF-P290 Ultra-Slim Video Bronchoscope

Phone:+86-21-54286005

Resources

BF-P290_EN-Brochure

EVIS LUCERA ELITE BF-P290 BRONCHOVIDEOSCOPE

Ultra-slim, 4.2 mm diameter videoscope with 2.0 mm instrument channel enables better access to peripheral areas

BF-P290



Main Features

Ultra-slim-design videoscope

Newly developed micromini CCD on the tip realizes drastically improved image quality over conventional hybrid scopes*, while maintaining an ultra-slim diameter and 2.0 mm instrument channel.
* EVIS LUCERA Bronchoscope OLYMPUS BF-P260F / OLYMPUS BF-XP260F

BF-P260F BF-P290

BF-P260F               BF-P290



Insertion tube rotation function

The insertion tube can be rotated left or right up to 120 degrees by simply turning a ring on the control section of the scope. This supports easier operation and smoother insertion with less operator fatigue.

rotation Insertion tube



Wider angulation range

210˚ up angulation range supports smoother insertion to the upper lobe bronchi and allows more of a bend in the scope when an EndoTherapy device is inserted in the endoscope’s working channel.

angulation range

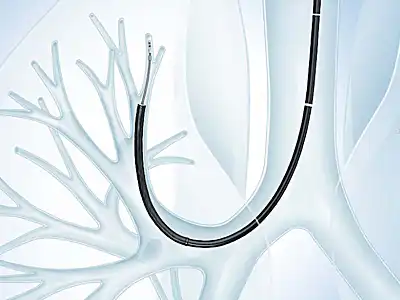

Easier approach to upper lobe bronchi

The combination of two key operational features, insertion tube rotation function and wider angulation range, enhances scope manoeuvrability, allowing an easier approach to previously difficult-to-reach areas such as B1, B1+2 and B6 and an easier approach to the target in the lung periphery.

Easier approach to upper lobe bronchi



BF-P290
Optical system Field of view

110°

Direction of view Forward viewing
Depth of fi eld

2-50 mm

Insertion section Distal end outer diameter 4.2 mm
Insertion tube outer diameter

4.1 mm

Working length 600 mm
Instrument channel Channel inner diameter

2.0 mm

Minimum visible distance 3.0 mm from the distal end
Bending section Angulation range

UP 210°
Down 130°

Compatible
EVIS LUCERA system
  Video system center OLYMPUS CV-290
Xenon light source OLYMPUS CLV-290SL
