Olympus CF-H290ECI Diagnostic Video Colonoscope

The Endocyto colonoscope combines cutting-edge observation with proven insertion technologies to support patient-friendly high-quality colonoscopy.Magnifi ed NBI and Endocyto observation with 520x^*1 magnifi cation support precise diagnosis of colorectal lesions to streamline therapeutic intervention.

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

EVIS LUCERA ELITE GIF-H290EC Diagnostic Video Colonoscope -endocytoscope offers 520×^*1 magnification

Beyond Imagination

Introducing Endocyto, Olympus has broken new ground in endoscopy.
Ultra-high magnification of up to 520x^*1 enables observation at the microscopic level and helps to improve diagnostic accuracy.
Endocyto presents a new era of diagnostic endoscopy.

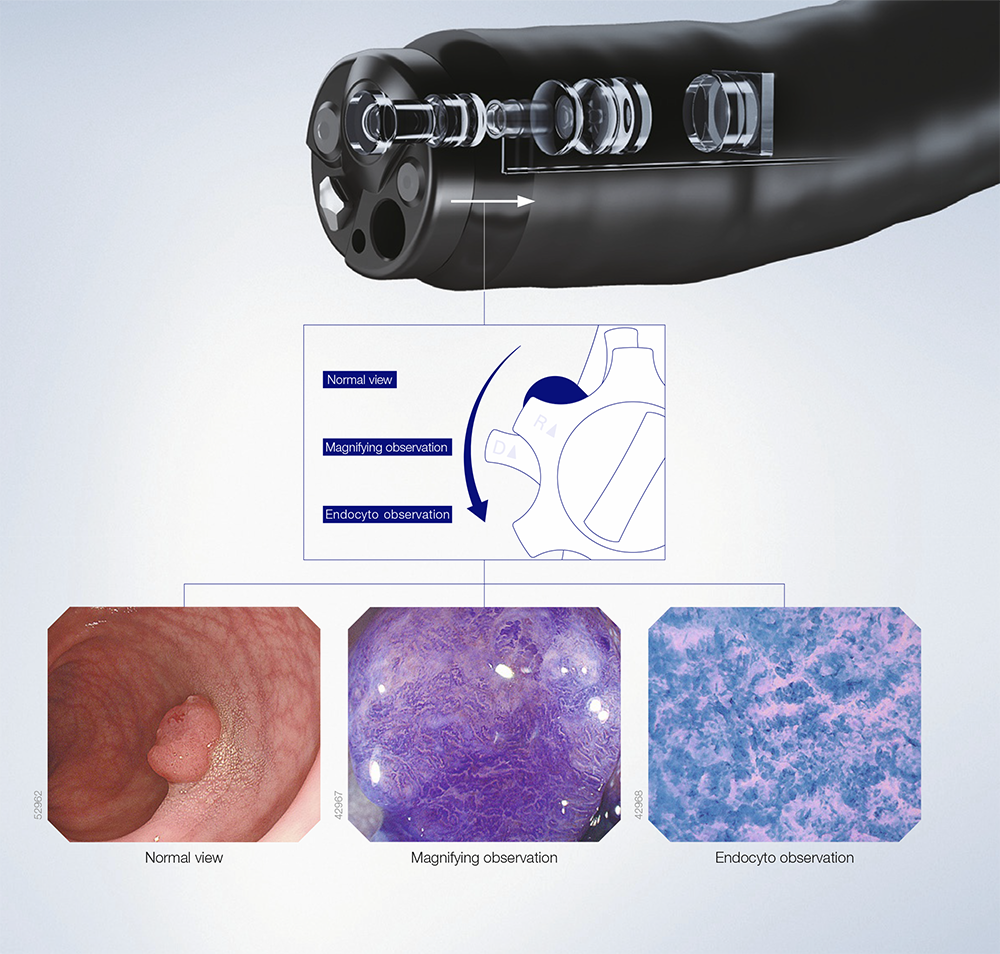

Operation of the Zoom Lever to Change Magnification Levels

Endocyto is equipped with a manual zoom mechanism resembling a conventional magnifying scope.
With just a single endoscope, switching from normal view to magnifying observation and Endocyto observation is possible.

变焦杆操作以更改放大倍数

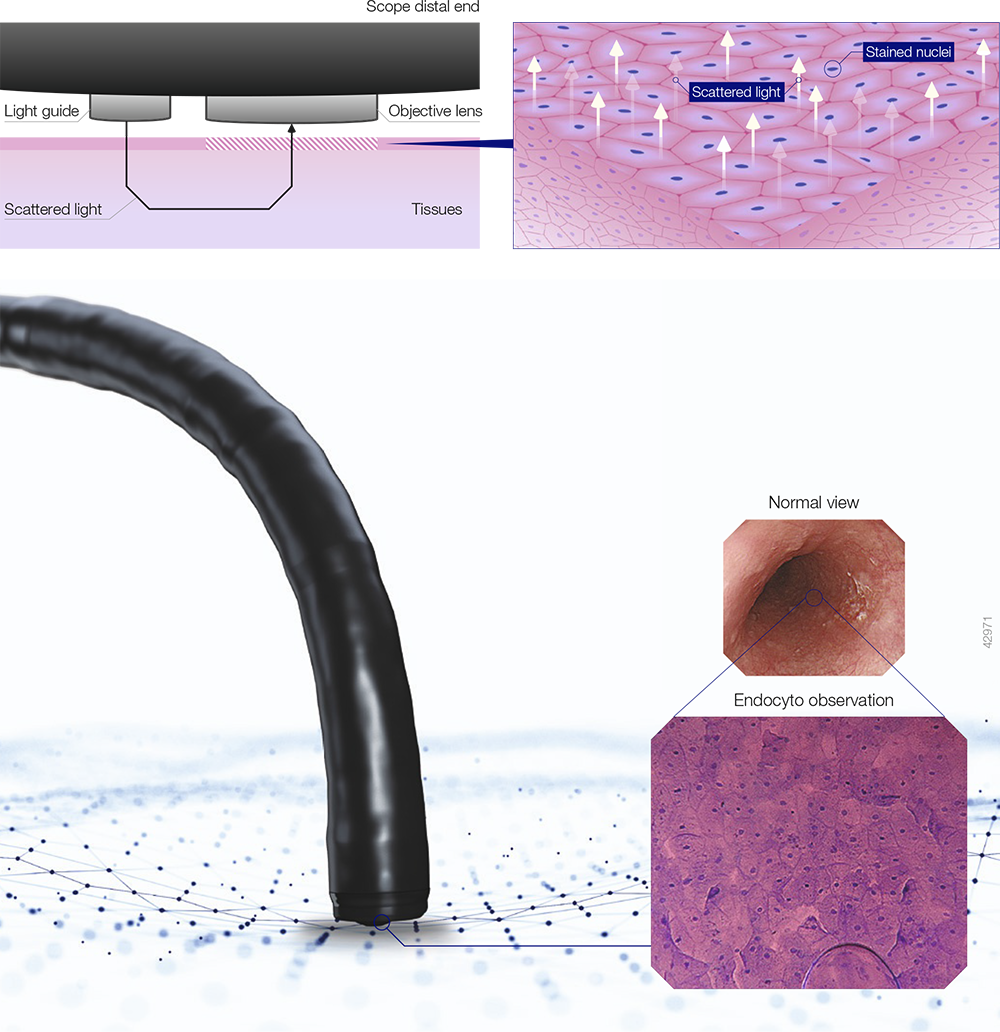

超扩大观察原理

细胞核用适当的染料染色。然后将物镜与粘膜接触以观察表面粘膜层的细胞。

光导发出的光被发送到细胞中，并以散射光的形式部分返回，从而有利于表面黏膜层的细胞学观察。

超扩大观察原理

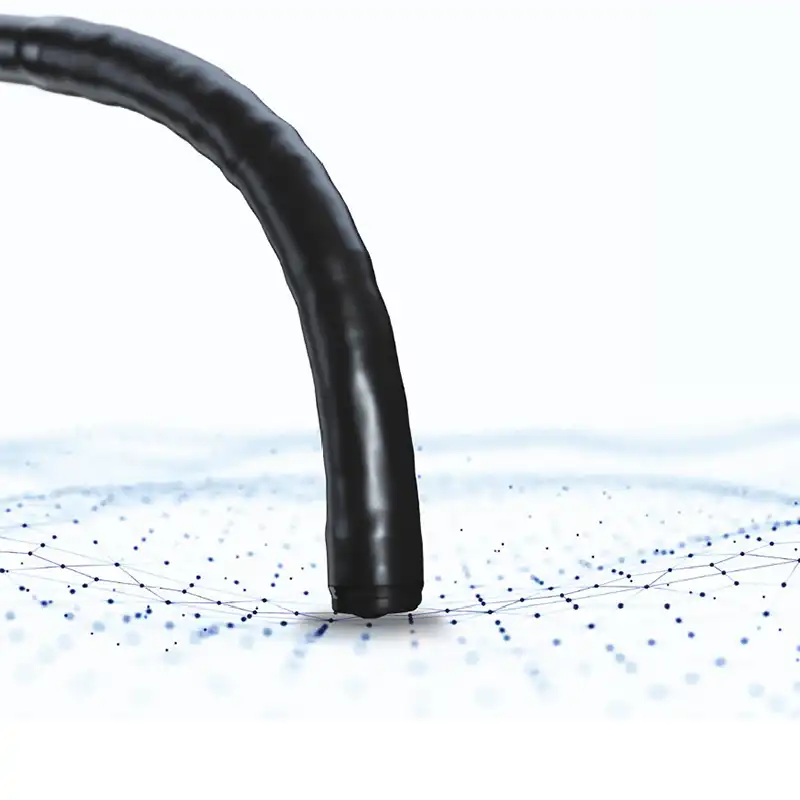

Colonoscope CF-H290ECI
The Endocyto colonoscope combines cutting-edge observation with proven insertion technologies to support patient-friendly high-quality colonoscopy.Magnifi ed NBI and Endocyto observation with 520x magnifi cation support precise diagnosis of colorectal lesions to streamline therapeutic intervention.High Force Transmission and Variable Stiffness facilitate smooth maneuverability in this 12.8 mm slim-caliber colonoscope.

Endocyto Observation

非肿瘤（食道）

Nontumor (colon) Tumor (colon)

Endocyto-NBI Observation

非肿瘤（食道）

Nontumor (colon) Tumor (colon)

Endocyto Can be Connected to the EVIS LUCERA ELITE System

Endocyto can be used as soon as you connect it to your EVIS LUCERA ELITE system. The one-touch connector minimizes the effort required for setup prior to and in between cases and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.

EVIS LUCERA ELITE System

^*1 (In combination with OEV262H)

		Colonovideoscope CF-H290ECI
Optical System	Field of view	140°
	Direction of view	0°(forward viewing)
	Depth of field	7–100 mm
	Magnification ratio	520× (In combination with OEV262H)
Insertion Section	Distal end outer diameter	12.8 mm
	Insertion tube outer diameter	12.8 mm
	Working length	1,330 mm
Instrument Channel	Channel inner diameter	3.2 mm
Instrument Channel	Minimum visible distance	4 mm
Bending Section	Angulation range	Up: 180° ; Down : 180° Right : 160° ; Left : 160°
Total Length		1,665 mm
