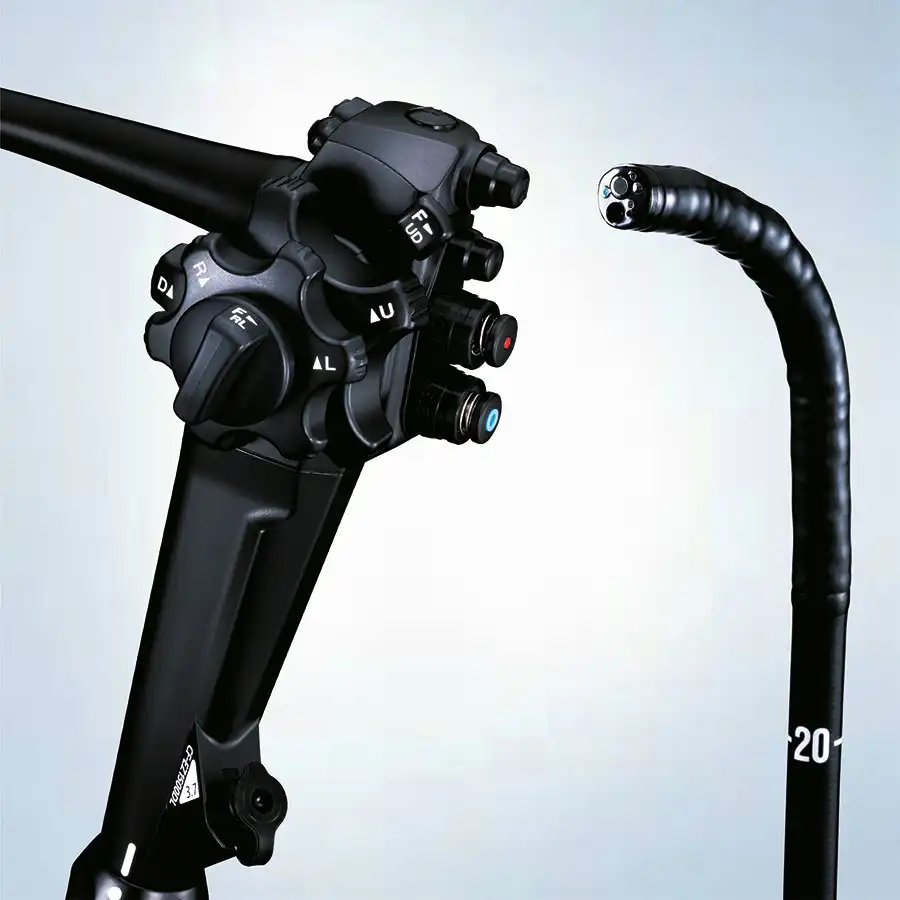

中文Olympus EVIS X1 CF-EZ1500DL/I Video Colonoscope
The CF-EZ1500DL/I video colonoscope offers full focus and high magnification for observational excellence.
Phone：+86-21-54286005
Resources
CF-EZ1500DL/I_Brochure_EN
CF-EZ1500DL/I_Brochure_EN
EVIS X1 CF-EZ1500DL/I Video Colonoscope - Magnification Type
Full Focus and High Magnification for Observational Excellence
EDOF Technology
Our unique Extended Depth of Field (EDOF) technology combines images captured in near view with those taken in far view to generate an image with a wider depth of field that gives you greater clarity and richer detail throughout the image area, assuring superior observation with continuous wide focusing.
Full Focus
Thanks to EDOF technology, the CF-EZ1500DL/I can approach as close as 3 mm to the subject in normal focus mode, providing a clear, sharp view that may reduce the need to adjust the focus in routine use.
White Light Normal Focus NBI Near Focus
High Magnification with the Ease of Dual Focus
The CF-EZ1500DL/I offers high magnification* when the Near Focus mode is engaged via a simple scope switch,supporting better observation of details. The combination of high magnification and wide depth of field allows for clearer, more detailed imaging throughout the field of view, even from a tangential direction and regardless of whether the subject is moving or not. In combination with our proven NBI technology, the CF-EZ1500DL/I’s advanced optics is designed to assist accurate, high-confidence optical diagnosis.
*Maximum magnification of 75x (with OEV262H) and 90x (with OEV321UH)
TXI White Light
Other Features
- Compatible with TXI, RDI and NBI when connected to CV-1500
- ErgoGrip
- RIT (Responsive Insertion Technology)
- ScopeGuide-ready
- 170º Wide viewing angle
- WaterJet
- Waterproof one-touch connector
|
|
CF-EZ1500DL/I |
|
| Optical System | Field of view | Normal focus mode: 170° Near focus mode: 160° |
| Direction of view | Forward viewing | |
| Depth of field | Normal focus mode: 3 - 100 mm Near focus mode: 1.5 -5.5 mm |
|
| Insertion Section | Distal end outer diameter |
13.2 mm |
| Insertion tube outer diameter |
12.8 mm |
|
| Working length |
CF-EZ1500DL:1680 mm CF-EZ1500DI:1330 mm |
|
| Instrument Channel | Channel inner diameter |
3.7 mm |
| Minimum visible distance*1 | 4 mm (Normal focus mode) | |
| Bending Section | Angulation range | Up 180° / Down 180° / Right 160° / Left 160° |
| Total Length |
CF-EZ1500DL:2005 mm CF-EZ1500DI:1655 mm |
|
| Compatible System | Video system center OLYMPUS CV-1500 | |
*1 Distance from the distal end of the endoscope.
