Olympus EVIS X1 CF-HQ1100DL/I Video Colonoscope

Easy-to-operate routine adult colonoscope that effectively supports detection, diagnosis and endoscopic therapy.

Phone：+86-21-54286005

Resources

CF-HQ1100DL/I_Brochure_EN

Overview Specifications Dimensions

EVIS X1 CF-HQ1100DL/I Video Colonoscope

Delivering Excellence in Routine Colonoscopy

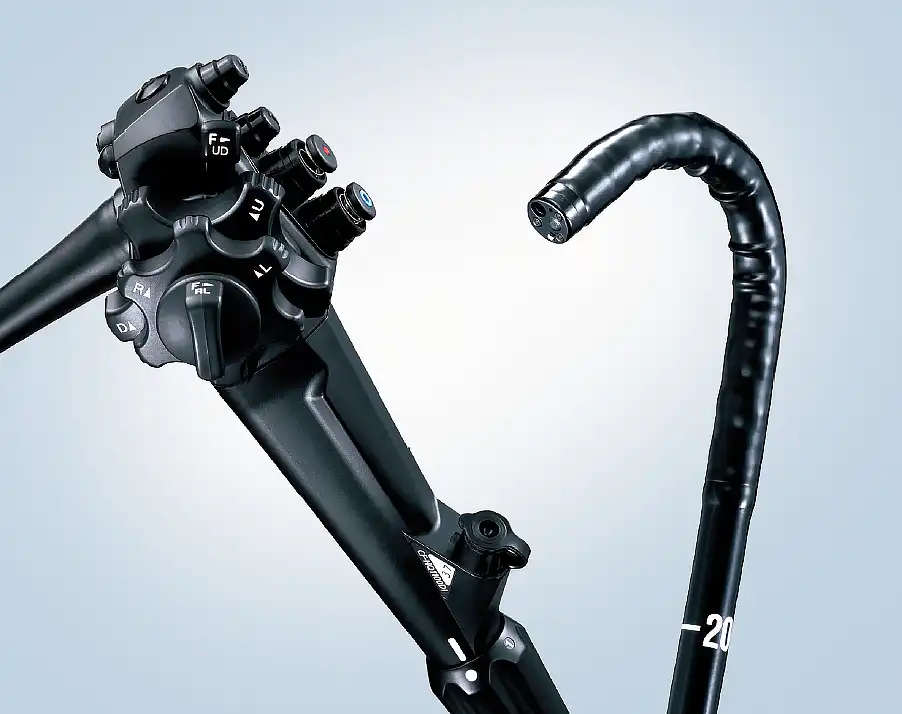

CF-HQ1100DI

Optical Diagnosis Empowered by Dual Focus and NBI

Dual Focus, a unique OLYMPUS optical innovation, allows the user to select the desired depth for observation and provides magnified images when in near focus mode with the simple push of a scope switch.It supports high-confidence optical assessment of lesions in combination with well-established NBI (Narrow Band Imaging) observation.

NBI 近焦

NBI Near Focus

Improved Image Quality and Innovative Observation Mode with CV-1500
When CF-HQ1100DL/I is combined with the CV-1500 Video Processor, the processor's 5-LED light source offers innovative observation modes, —TXI (Texture and Color Enhancement Imaging), RDI (Red Dichromatic Imaging) and NBI (Narrow Band Imaging)— while its noise reduction system enables clear observation with less noise.

TXI White Light

ErgoGrip
The ergonomically designed handle provides a comfortable and stable grip, lighter weight, and greater ease in reaching the angulation control knobs and scope switches.

Other Features

RIT (Responsive Insertion Technology)
ScopeGuide-ready
170° Wide viewing angle
WaterJet · Waterproof one-touch connector

	CF-HQ1100DL/I
Optical System	Field of view	Normal focus mode: 170° Near focus mode: 160°
	Direction of view	Forward viewing
	Depth of fi eld	Normal focus mode: 5 - 100 mm Near focus mode: 2 -6 mm
Insertion Section	Distal end outer diameter	13.2 mm
	Insertion tube outer diameter	12.8 mm
	Working length	CF-HQ1100DL:1680 mm CF-HQ1100DI:1330 mm
Instrument Channel	Channel inner diameter	3.7 mm
Instrument Channel	Minimum visible distance*1	4 mm (Normal focus mode)
Bending Section	Angulation range	Up 180° / Down 180° / Right 160° / Left 160°
Total Length	CF-HQ1100DL:2005 mm CF-HQ1100DI:1655 mm
Compatible System	Video system center OLYMPUS CV-1500 Video system center OLYMPUS CV-190/CV-190 Plus Xenon light source OLYMPUS CLV-190
