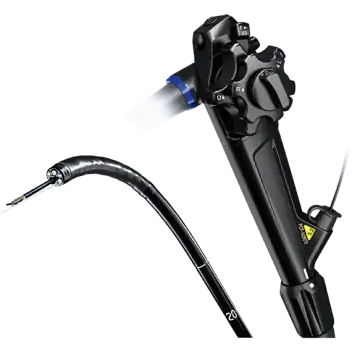

Aiming at increased treatment success and safety, PCF-H290TL/I is a masterpiece combining superb maneuverability and dedicated treatment specifications in a slim diameter.
Phone：+86-21-54286005
PCF-H290TL/I_Brochure_EN
Aiming at increased treatment success and safety, PCF-H290TL/I is a masterpiece combining superb maneuverability and dedicated treatment specifications in a slim diameter.
Main Features

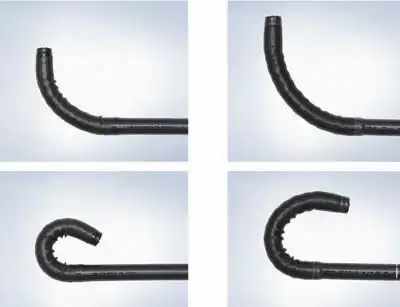

Short bending for better access to lesionsWith a shorter bending section, the PCF-H290TL/I provides better handling in the intestine. Combined with the 210 ° up angulation, the scope offers easier lesion approachability.
PCF-H290TL/I PCF-Q260JL/I
HDTV and NBI
With its HDTV image quality and brighter NBI,the PCF-H290TL/I contributes to higher treatment accuracy.
High confidence optical diagnosis facilitates appropriate treatment decisions and accurate delineation of lesions.
White Light
Appropriate channel layout
The layout allows for smooth operation of both the water-jet function and any treatment such as stopping bleeding.
Improved insertability
The PCF-H290TL/I incorporates unique proprietary OLYMPUS technologies, realizing easier scope insertion with minimized patient discomfort.
| Optical System | Field of view (Maximum diagonal angle) |
140° |
| Direction of view | 0°(Forward viewing) | |
| Depth of field |
5-100 mm |
|
| Insertion Section | Distal end outer diameter |
9.8 mm |
| Insertion tube outer diameter |
10.5 mm |
|
| Working length |
PCF-H290TL:1680 mm PCF-H290TI:1330 mm |
|
| Instrument Channel | Channel inner diameter |
3.2 mm |
| Minimum visible distance | 4 mm from the distal end | |
| Bending Section | Angulation range | Up 210° Down 180º Right 160° Left 160° |
| Total Lengt |
PCF-H290TL:2005 mm,PCF-H290TI:1655 mm |
|
| Compatible EVIS LUCERAI System |
Video System Center OLYMPUS CV-290 Xenon Light Source OLYMPUS CLV-290SL,CLV-290 |
|
