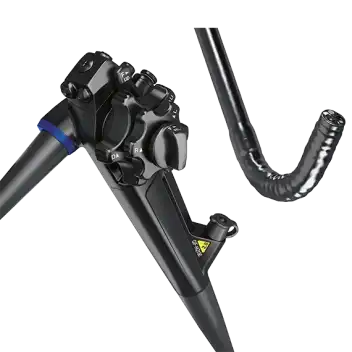

中文Olympus GIF-HQ290 Video Gastroscope
Revolutionizing routine endoscopy by providing groundbreaking advanced diagnostic features in an easy-to-use routine endoscope.
Phone：+86-21-54286005
Resources
GIF-HQ290_Brochure_EN
GIF-HQ290_Brochure_EN
EVIS LUCERA ELITE GIF-HQ290 Videogastroscope, 2.8 mm instrument channel
Amazing image quality for upper GI endoscopy
Main Features
Dual Focus
Dual focus, a unique OLYMPUS optical innovation, allows the user to select from two focus settings. With the simple push of a scope button, the desired depth of field for observation can be optimized to either the near field or normal field.
Enhanced Image Quality
A new level of resolving power is achieved thanks to a new optical system. Combination of the scope and the system provides superior imaging.
NBI (Narrow Band Imaging)
NBI in EVIS LUCERA ELITE provides twice the viewable distance of EVIS LUCERA SPECTRUM. The greatly improved performance of NBI opens up exciting new clinical applications and reinforces NBI’s position as the standard of care for GI endoscopy.
Water Jet
A forward water jet helps to keep the mucosa clear during observation and treatment in the upper GI tract.
Waterproof One-touch Connector
A new connector design minimizes the effort required for setup prior to and in between cases. In addition,it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.
| Model |
GIF-HQ290 |
|
| Optical System | Field of view |
Normal 140º Near 140º |
| Direction of view | Forward viewing | |
| Depth of field | Normal 7-100 mm Near 3-7 mm |
|
| Insertion Section | Distal end outer diameter |
10.2mm |
| Insertion tube outer diameter |
9.9mm |
|
| Working length |
1030mm |
|
| Instrument Channel | Channel inner diameter |
2.8mm |
| Minimum visible distance | 3.0 mm from the distal end | |
| Bending Section | Angulation range | Up 210º Down 90º Right 100º Left 100º |
| Total Length |
1350mm |
|
| Compatible EVIS EXERA System |
Video System Center OLYMPUS CV-290 Xenon Light Source OLYMPUS CLV-290SL |
|
