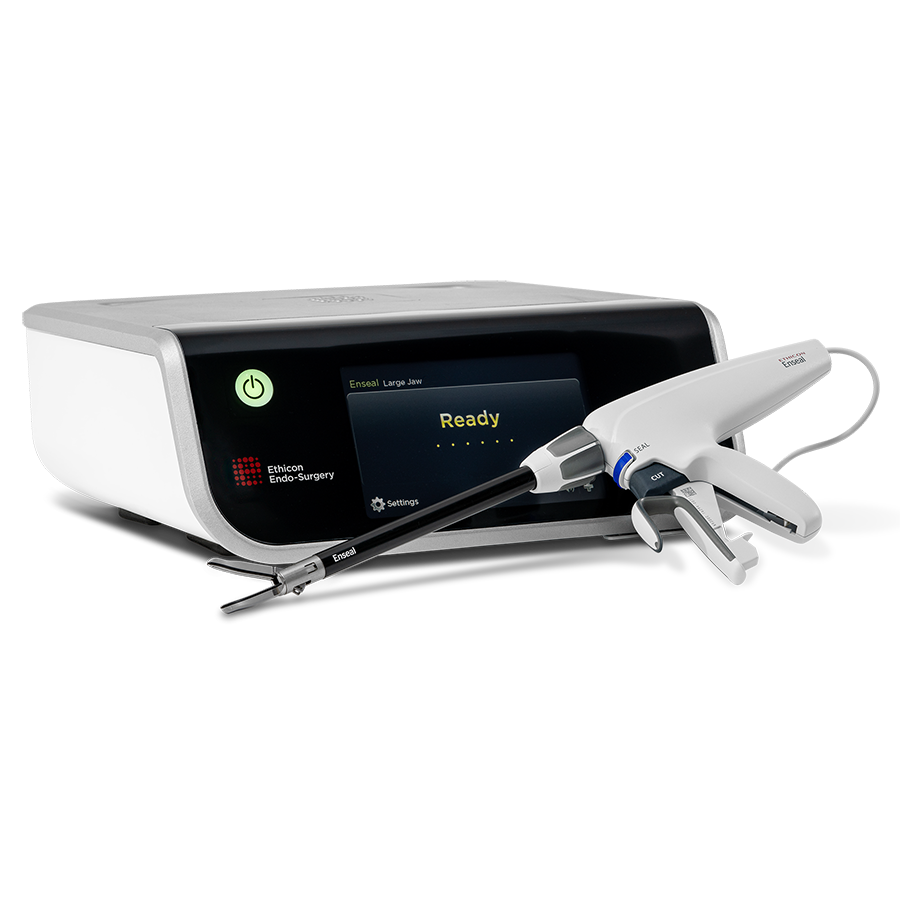

ETHICON GEN11 Generator

The ETHICON GEN11 Generator combines advanced technology to support all HARMONIC™ Ultrasonic and ENSEAL™ Advanced Bipolar Devices through a simple touchscreen. It offers Adaptive Tissue Technology, which senses changes in tissue and device conditions and responds with the optimal amount of energy.

Phone:+86-21-54286005

Resources

GEN11_Brochure-EN
GEN11_Data-EN

Ethicon Endo-Surgery Generator

For Harmonic®. For EnSeal®. For the future.

The new Ethicon Endo-Surgery Generator combines advanced technology, multifunctionality and touch screen simplicity in one sleek and easy-to-operate unit. No matter what the procedure or which EES device you plan to use, the EES Generator will be the only power source you’ll need.

GEN11

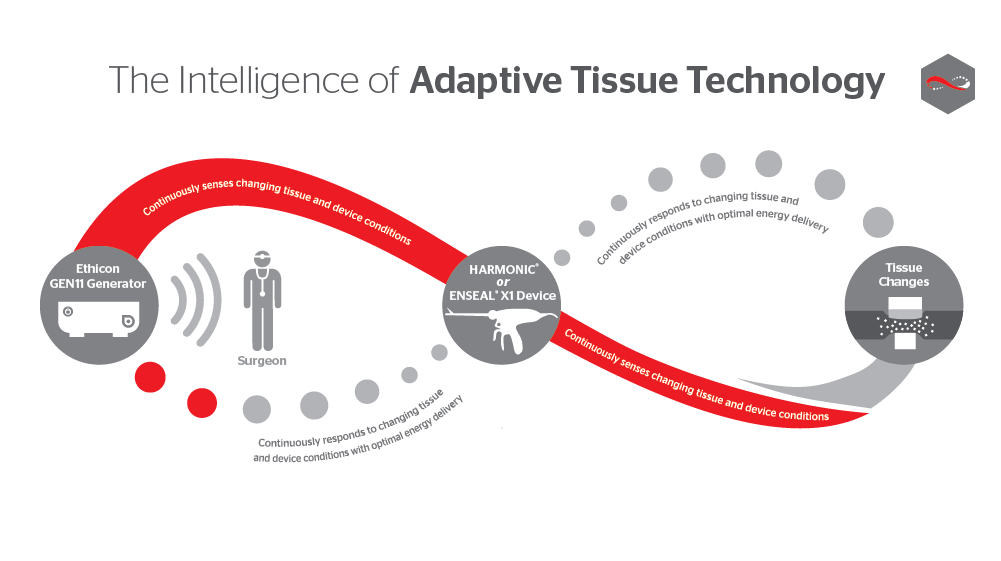

Adaptive Tissue Technology

Powered by the ETHICON GEN11 Generator, Adaptive Tissue Technology continuously delivers energy intelligently and efficiently in both HARMONIC and ENSEAL devices and is designed to enable greater surgical precision and performance.1

Adaptive Tissue Technology

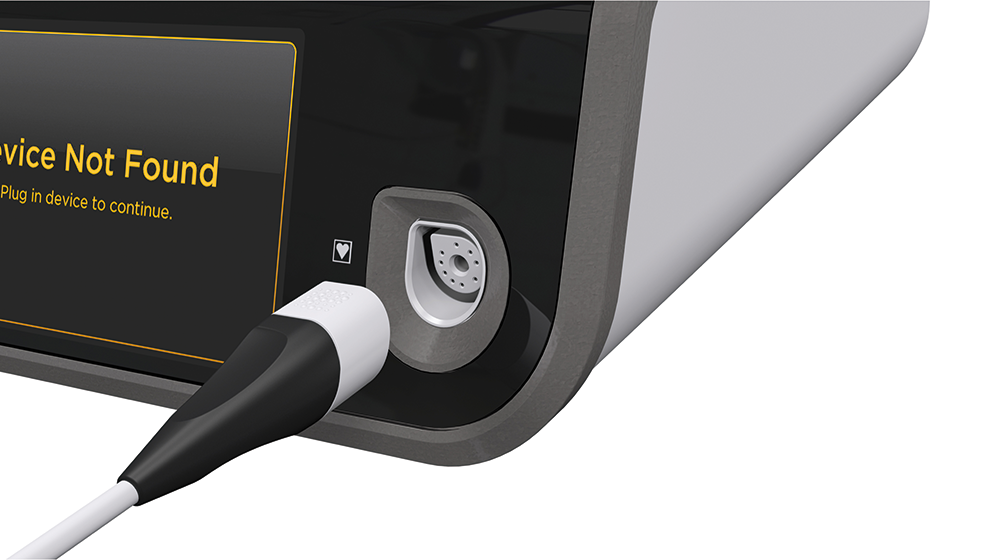

Simple Design Simple Setup
The universal connector was designed to improve efficiency during setup. The unique design only permits instruments to be inserted correctly. The magnetic assist insures that instruments are fully seeded into the receptacle.
Whether you plug in a Harmonic® or Enseal® device the generator will automatically go to the correct settings.

Simple Design Simple Setup

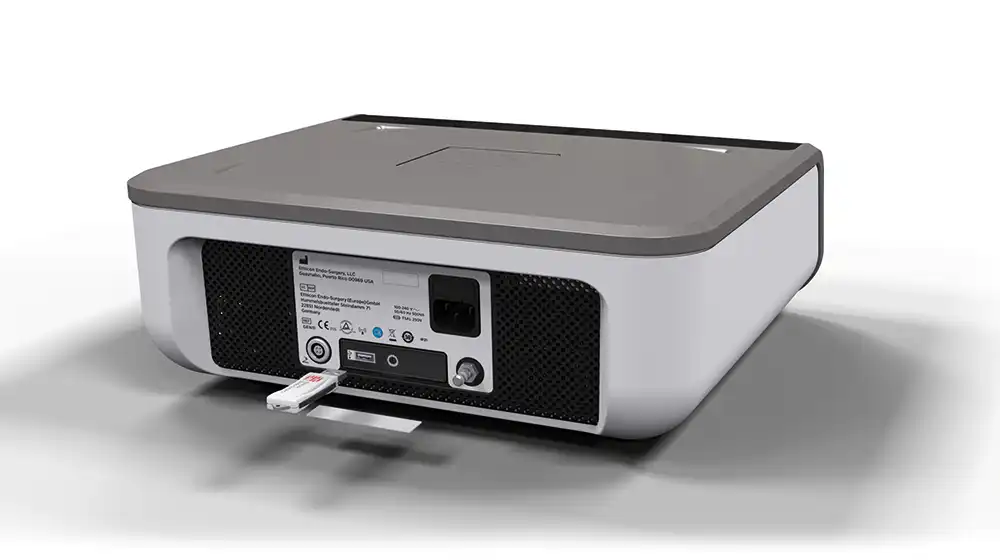

Lasting Support

Upgradeable software supports future Ethicon energy devices and limits the obsolescence of capital. Recommended maintenance, warranty information and technical support details available in our Biomed Technical Information Sheet.

Upgradeable software





Foot switch (FSW11)

The Johnson & Johnson Ultrasound Generator GEN11 is designed with an optional foot switch for the Ethicon Endo-Surgery generator. The left pedal activates low-power ENSEAL® devices or HARMONIC® devices. The right pedal activates the high-power HARMONIC® device. The wire can be wrapped around the foot switch.

FSW11脚踏开关

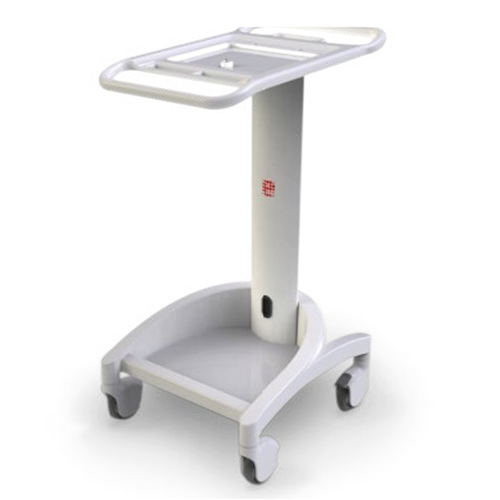

Cart (CRT11)
The cart is designed specifically for the Ethicon Endo-Surgery generator, ensuring stability and ease of use. Features include:

  • Bolts for attaching the Ethicon Endo-Surgery generator to the cart
  • Handle designed to aid cable management
  • Slot to manage footswitch cables
  • Locks rear wheels to provide stability

Cart



Adapter (EGA11/ HGA11)

The adapters HGA11 for HARMONIC handles and EGA11 for ENSEAL devices will be available for a while so that you can work with your current product inventory. For convenience, the adapter can be secured to a plate on the Ethicon Endo-Surgery generator located beneath the device container.

Adapter







Output verification key (GEN11VK)

The Output Verification Key is a tool used to verify the power output of the Ethicon Endo-Surgery generator. The output verification key is intended for use only by biomedical personnel trained in the operation of medical and electrical equipment. Output validation should be performed according to facility-specific guidelines.

GEN11VK

Technical Specifications

Main fuses T5AL 250 V (Time-delay, 5 Amp, glass body, 5x20mm package size, quantity: 2)
Degree of protection
against electric shock
Type CF applied part consisting of the HARMONIC® or ENSEAL® instruments
Class of protection against
electric shock

Class 1

Ingress protection
G11 enclosure
Ingress protection
G11 footswitch

IP21

IP68

Main input

100–240 V, 50/60 Hz, 500 VA

Output HARMONIC® Output: 150 VAC RMS maximum 35 watts continuous, 30–80 kHz (55.5 kHz unless
otherwise marked in instrument IFU)
ENSEAL® Output: Bipolar, no neutral electrode required, 100 VAC RMS maximum, 135 watts maximum,
300–490 kHZ (330 kHz unless otherwise marked in instrument IFU)
Ambient operating
conditions
Temperature: 15°C–27°C
Humidity: 30%–75% non-condensing
Atmospheric Pressure Range: 700 hPa–1060 hPa
Transport and storage
conditions
Temperature: -35°C–54°C
Humidity: 10%–95% non-condensing
Atmospheric Pressure Range: 700 hPa–1060 hPa
Weight Generator: 13 lbs (5.9 kg)
Cart: 37 lbs (16.8 kg)
Footswitch: 8 lbs (3.6 kg)
Overall dimensions Generator: 35.0cm x 35.5cm x 13.6cm
Cart: 18.88" (48.0cm) x 22.11" (56.2cm) x 37.53" (95.3cm)
Footswitch: 13.45" (34.2cm) x 7.50" (19.0cm) x 4.10" (10.4cm)
