Fujifilm EC-740T/M, L Slim Therapeutic Colonoscope

This slim colonoscope is equipped with Advanced Force Transmission, 210º up-angulation and a G7 grip that supports excellent manoeuvrability.

Phone:+86-21-54286005

Resources

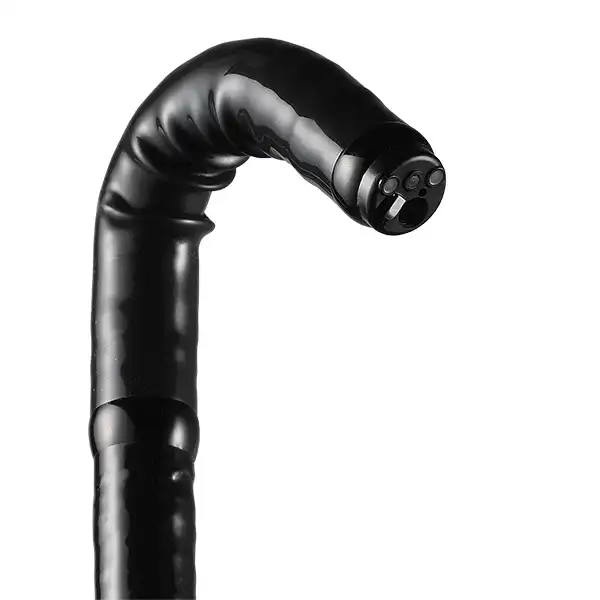

EC-740T/M, L Slim Therapeutic Colonoscope

This slim colonoscope is equipped with Advanced Force Transmission, 210º up-angulation and a G7 grip that supports excellent manoeuvrability. It is expected to be useful for more challenging anatomies and narrow GI anatomy, such as stenosis, severe inflammation, or anatomical adhesion. With the additional observation modes LCI intended to improved detection, and BLI, intended to characterise lesions, this is an excellent colonoscope for both observation and therapeutic procedures.

EC-740T/M, L

Field of view

140°

Viewing direction

0° (Forward)

Observation range

3~100 mm

Bending capability

UP: 210° / DOWN: 160° / RIGHT: 160° / LEFT: 160°

Working length

1,330 mm(M)/1,690 mm(L)

Total length

1,630 mm(M)/1,990 mm(L)

Distal end diameter

9.8 mm

Insertion tube diameter

10.7 mm

Minimum diameter of instrument channel

3.2 mm

Image size

Super image
