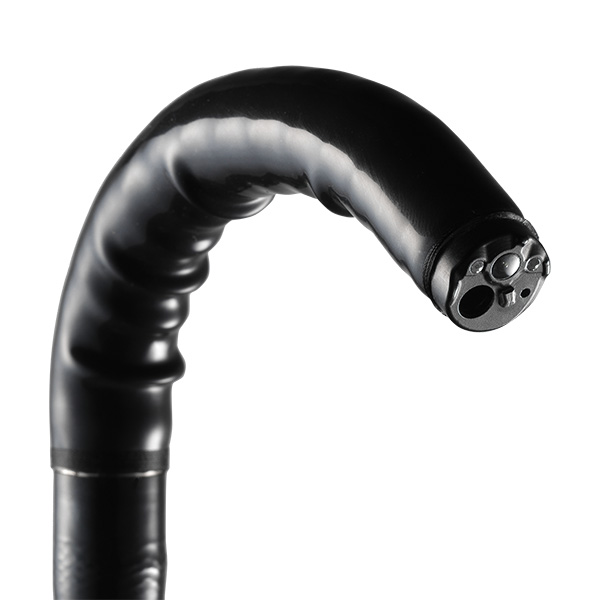

This routine colonoscope has a wide field of view of 170° as well as a large working channel diameter of 3.8 mm. In addition, it has a diameter of 12.8 mm and includes a water jet function and CMOS technology.
Phone：+86-21-54286005
This routine colonoscope has a wide field of view of 170° as well as a large working channel diameter of 3.8 mm. In addition, it has a diameter of 12.8 mm and includes a water jet function and CMOS technology.
.jpeg)
|
Field of view |
170° |
|
Viewing direction |
0° (Forward) |
|
Observation range |
2〜100 mm |
|
Bending capability |
UP: 180° / DOWN: 180° / RIGHT: 160° / LEFT: 160° |
|
Working length |
1,330 mm(M) / 1,520 mm(I) / 1,690 mm(L) |
|
Total length |
1,630 mm(M) / 1,820 mm(I) / 1,990 mm(L) |
|
Distal end diameter |
12.8 mm |
|
Insertion tube diameter |
12.8 mm |
|
Minimum instrument channel diameter |
3.8 mm |
|
Image size |
Super image |
