FujiFilm EC-600WM/WI/WL Standard Colonoscope

producing super-high definition image By adapting over megapixel CMOS image sensor, EC-600WM/Wi/WL endoscopes enable super-high definition image to be produced.And the leading-edge CMOS Technology realize less noise and brilliant image. Those features make advanced observation and diagnosis possible.

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

EC-600WM/WI/WL Standard Colonoscope

New horizons in diagnostic performances

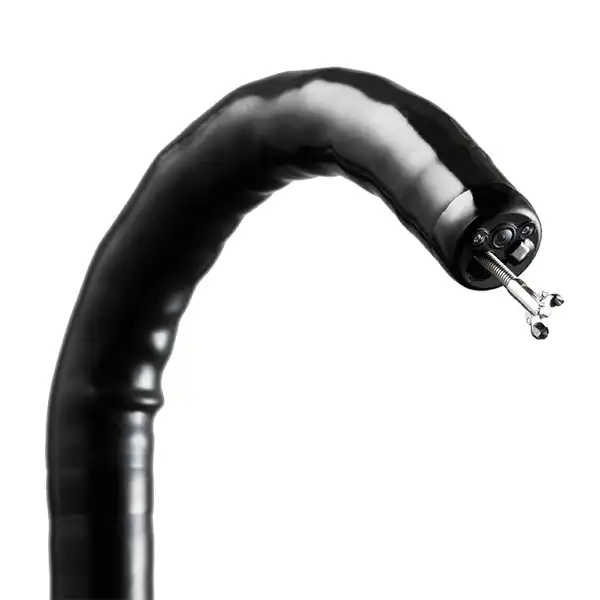

EC-600W

CMOS Technology

Over megapixel CMOS image sensor
producing super-high definition image By adapting over megapixel CMOS image sensor, EC-600WM/WI/WL endoscopes enable super-high definition image to be produced.And the leading-edge CMOS Technology realize less noise and brilliant image. Those features make advanced observation and diagnosis possible.

Megapixel 60P video realize
smooth and clear video ability CMOS Technology realize 60 frame progressive video even though over Megapixel. With the 60 frame progressive scanning method, it is also possible to produce high-definition and less blur still images.

EC-600WM/Wi/WL

Close Focus with CMOS Technology

Close Focus with CMOS Technology enhance image diagnosis
The newly designed high performance optical system enhances close focus observation capability up to 2 mm.
The focus at the edges of an image has been improved,minimizing distortion in observation of a lumen. Through a combination with the megapixel CMOS image sensor, high performance optical system assists various observations ranging from close-up to distant views.

Close Focus

EC-600WM/Wi/WL

FICE with CMOS Technology

CMOS Technology produces advanced FICE image
Through higher resolution and improved noise reduction, FICE images are more sharp and clear than ever.
It enables easier differentiation between lesion-affected and non-affected tissue.

FICE 8 Colon FICE 1 Colon

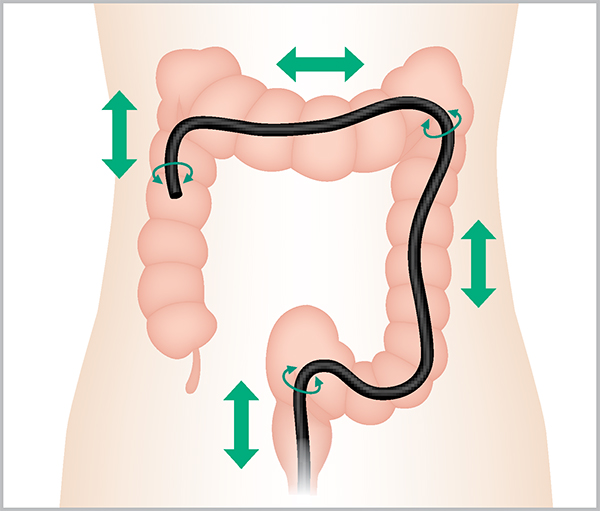

ColoAssist II

Newly developed gradual stiffness insertion portion for better insertion into the colon With the modified insertion tube, the flexibility of the insertion portion gradually increases toward the distal end and allows better insertion operability. Both force and torque transmission have been improved.
This feature makes smoother insertion into the colon possible. Its small diameter of 12.0 mm also aims to reduce patient's discomfort.

ColoAssist II

Water jet function

The gastroscope and colonoscope both feature the water jet function and helps both better observation and therapeutic procedure.

Water jet function

Viewing direction	0°(Forward)
Field of view	140°
Observation range	2-100mm
Distal end diameter	12.0mm
Insertion tube diameter	12.0mm
Minimum diameter of instrument channel	3.8mm
Bending capability	UP 180° / DOWN 180° RIGHT 160° / LEFT 160°
Working length	EC-600WM 1,330mm EC-600WI 1,520mm EC-600WL 1,690mm
Total length	EC-600WM 1,630mm EC-600WI 1,820mm EC-600WL 1,990mm
Water Jet	Available
