The new EN-580T is now added to Fujifilm's line-up of double-balloon endoscopes which has greatly contributed to accurate diagnosis and treatment for diseases of the small intestine. Featuring a large forceps channel of 3.2 mm in diameter, improved close focus capability and relocated balloon air feed inlet, it meets user's needs for more accurate and effi cient examinations and treatment.
Phone：+86-21-54286005
EN-580T_Brochure_EN

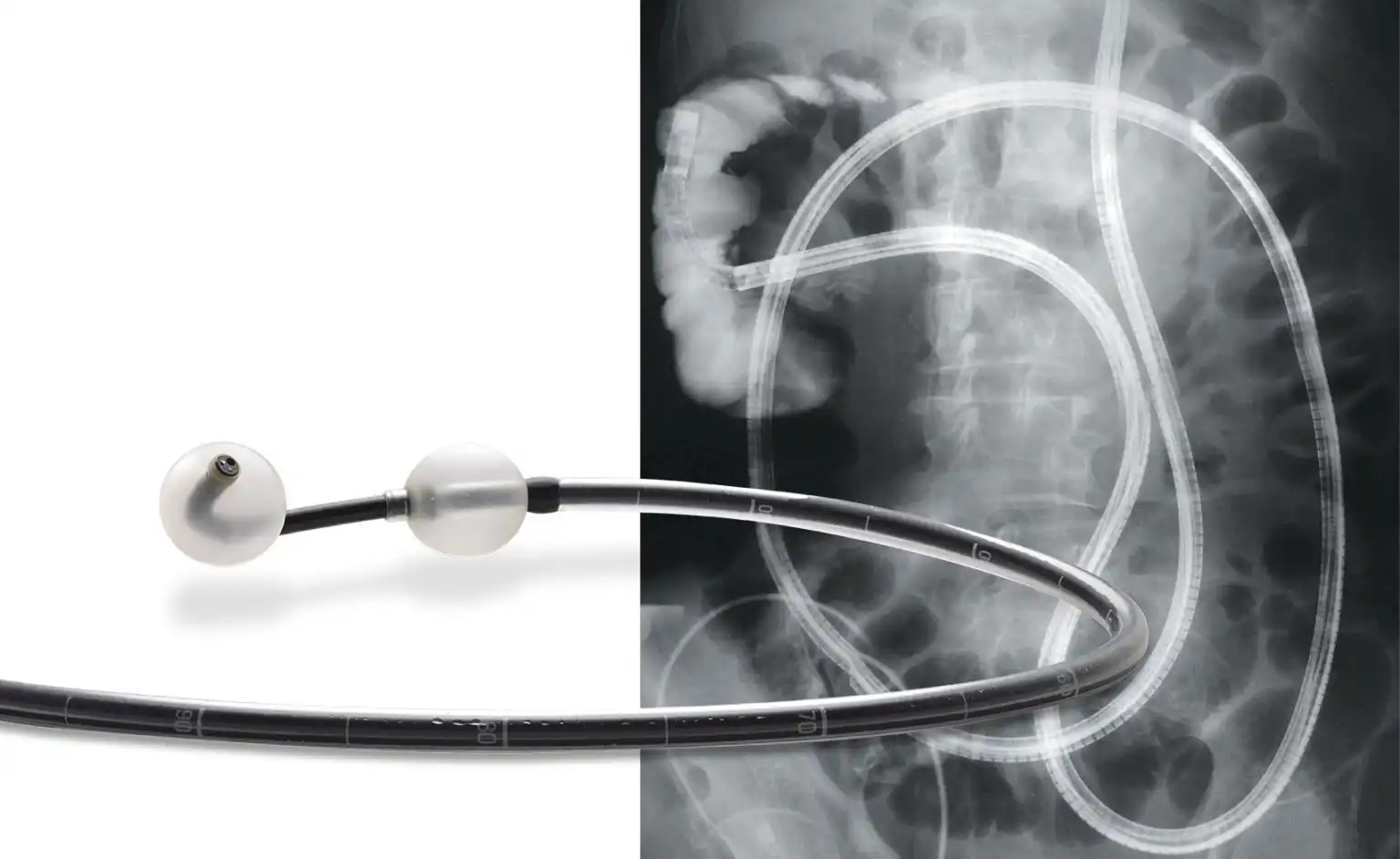

New therapeutic Double Balloon Endoscope with 3.2 mm diameter forceps channel – ideal for various procedures
The new EN-580T is now added to Fujifi lm’s line-up of double-balloon endoscopes which has greatly contributed to accurate diagnosis and treatment for diseases of the small intestine. Featuring a large forceps channel of 3.2 mm in diameter, improved close focus capability and relocated balloon air feed inlet, it meets user’s needs for more accurate and effi cient examinations and treatment.
Anterograde insertion Retrograde insertion
3.2 mm forceps channel
A large forceps channel of 3.2 mm in diameter for effi cient treatment
The 3.2 mm diameter forceps channel suits various procedures like hemostasis and balloon dilation, providing greater suction performance than that of conventional models. As it enables blood or mucus to be aspirated while a therapeutic device is inserted, quicker hemostasis is possible. The large forceps channel is also intended for easier insertion and removal of a balloon catheter before and after dilatation of structures.
580 Super CCD with Close Focus
Superior image quality in close focus for more detailed diagnosis
The new Super CCD ensures vivid and high quality images, while the newly designed close-focus optics enhances the possibility of obtaining more detailed images, thus allowing the compilation of a wide range of data necessary for diagnosis. Used in combination with FICE the EN-580T enables easier differentiation between lesion-affected and non-affected areas.
White light image of intestinal villi FICE image of intestinal villi

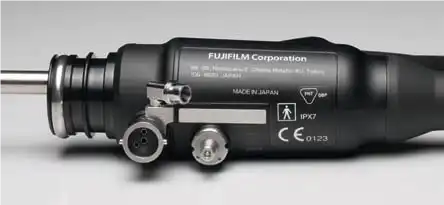

One-touch connector and relocated balloon air feed inlet
Newly designed one-touch connector and relocated balloon air feed inlet for better operability
The balloon air feed inlet has been relocated from the control portion to the connector portion,creating a better examination environment. Also,a one-touch type connector especially designed for the balloon air feed inlet on the endoscope is provided, making the preparation simpler.
EN-580T Double Balloon Enteroscope-Therapeutic Type
|
Field of view |
140° |
|
Observation range |
2-100mm |
|
Distal end diameter |
9.4 mm |
|
Insertion tube diameter |
9.3 mm |
|
Minimum diameter of instrument channel |
3.2 mm |
|
Bending capability |
UP 180° / DOWN 180° |
|
Working length |
2,000 mm |
|
Total length |
2,300 mm |
Balloon Controller
PB-20
|
Power |
35 mm |
|
Maximum flow rateof pump |
170 ml ± 50 ml /10 sec |
|
Dimensions |
350(W)x130(H)x420(D)mm |
|
Weight |
10 kg (Main unit), 0.4 kg (Remote switch) |
|
Balloon air outlets |
2 points (for endoscopes;for overtube) |
