FUJIFILM ED-580XT Duodenoscope

With improved wire locking G-Lock and greater elevation force. The ED-580XT has the G7 control portion which has a rounded surface design to fit in the hand. Its layout makes suitable operation possible.

Phone：+86-21-54286005

Resources

ED-580XT_Brochure_EN

Overview Specifications Dimensions

ED-580XT Duodenoscope

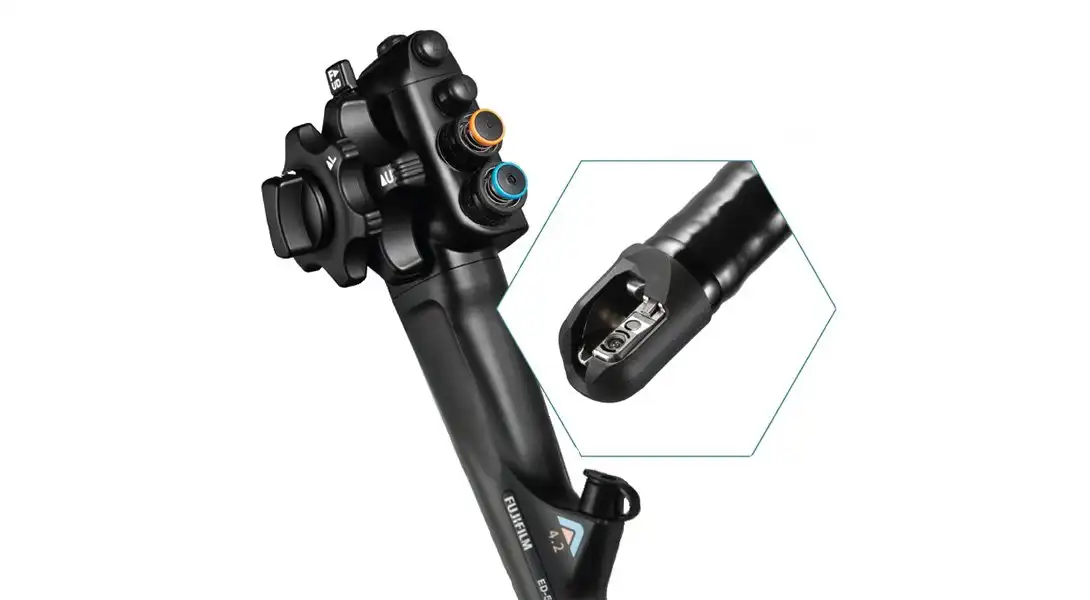

ED-580XT G7 control

Improved treatment capability

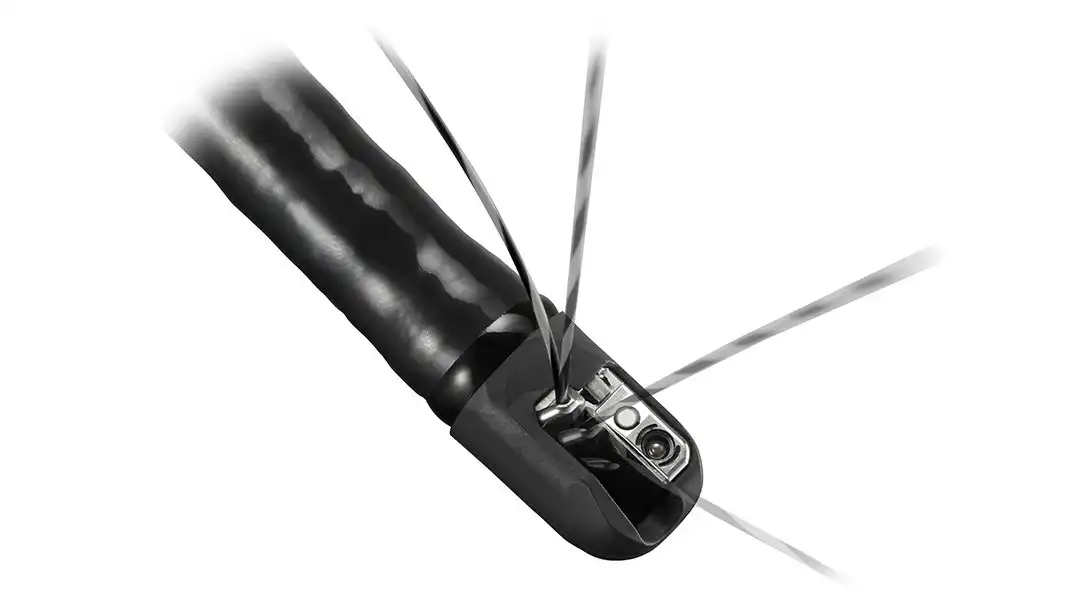

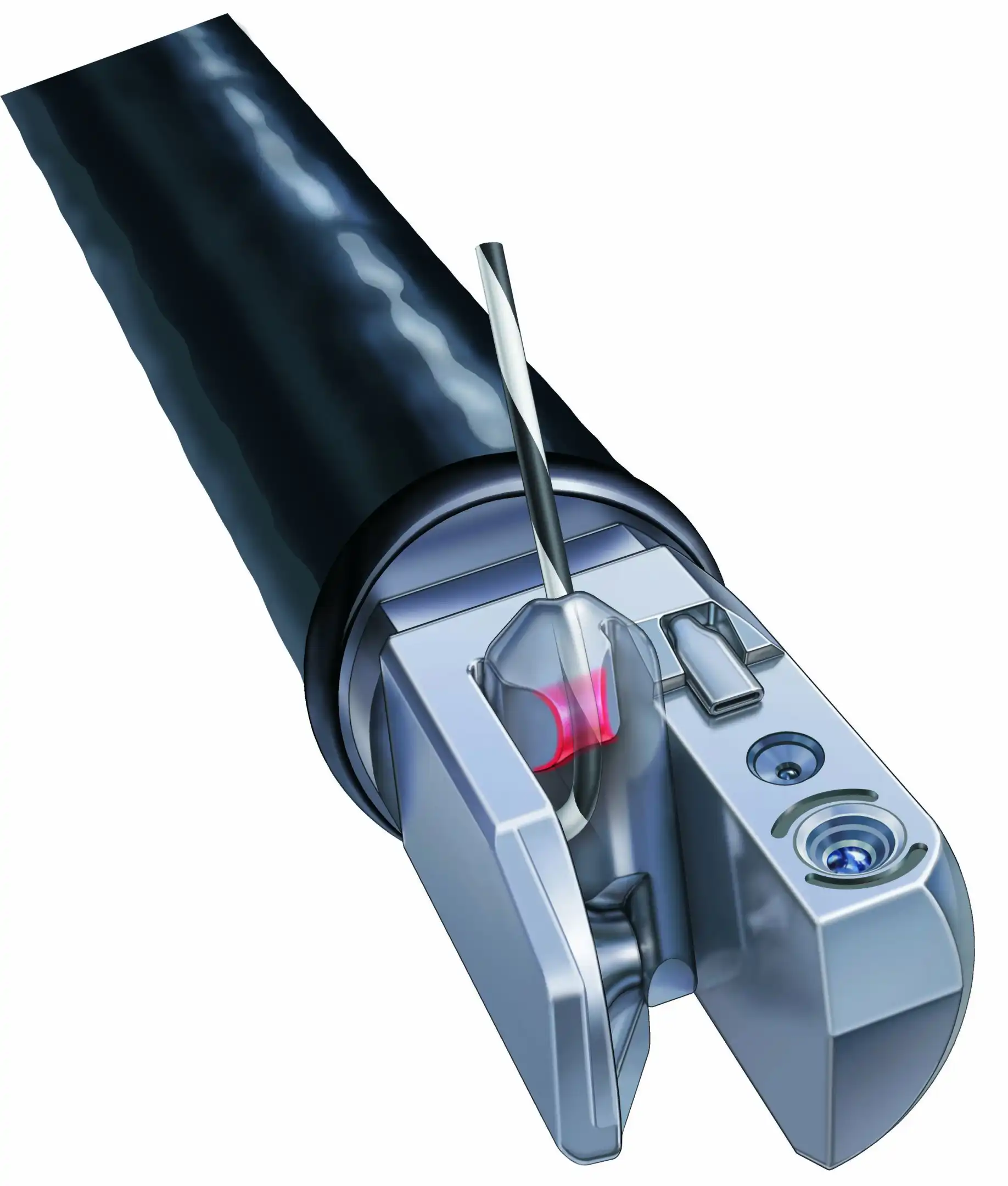

Incorporated into the distal tip of the ED-580XT, the G-Lock contains the forceps elevator and the contact section, enabling the guidewire to be simply and securely fixed into position by using the forceps elevator. In addition, the specially designed round-shaped forceps elevator reduces the risk of guidewire damage. The inner tube of the instrument channels uses an improved material to enable a device to be inserted smoothly, supporting rapid device exchange.

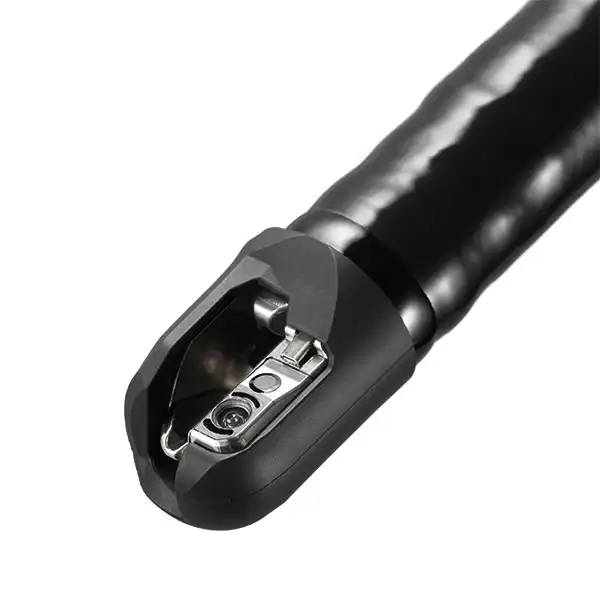

ED-580XT

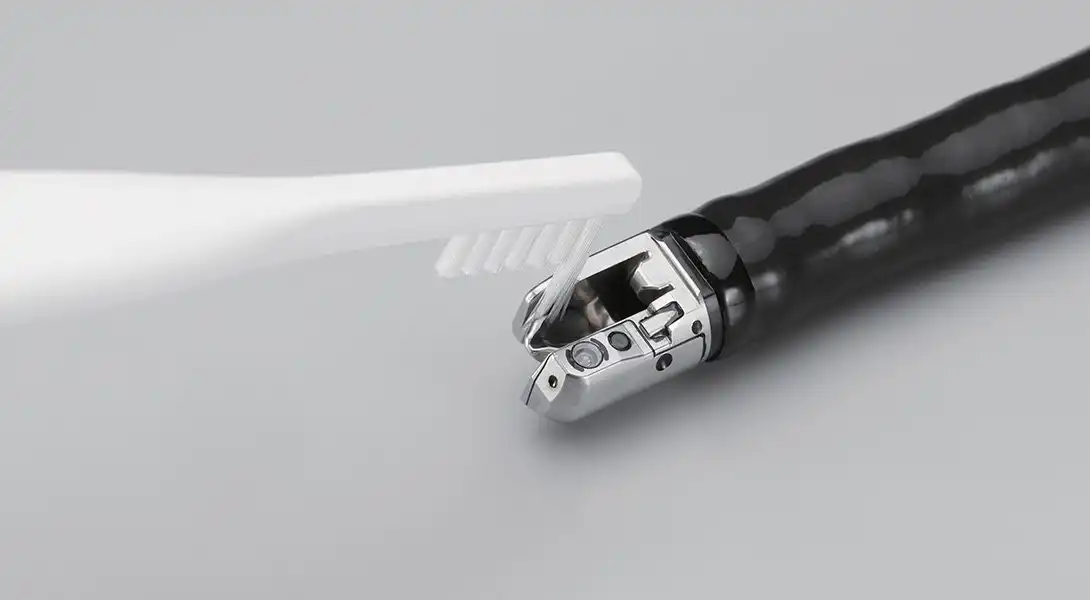

Improved access for cleaning
The ED-580XT Duodenoscope features a removable single use distal end cap for easy access during cleaning, and a sealed elevator mechanism to help prevent bioburden build-up on and around the elevator wire.

Improved access for cleaning

Advanced visualization for precision cannulation
From the visual orientation and field of view to the elevator movement, the ED-580XT Duodenoscope provides true precision and control during cannulation. Designed to work in harmony with the endoscopist.

Viewing direction	ED-580XT 95° (retro-viewing 5°)
Field of view	100°
Observation range	4-60mm
Bending capability	UP 120° / Down 90° / Left 90° / Right 110°
Working length	1250mm
Total length	1550mm
Distal end diameter	13.1mm
Insertion tube diameter	11.3mm
Minimum diameter of instrument channel	4.2mm
