Dual focus, a unique OLYMPUS optical innovation, allows the user to select from two focus settings. With the simple push of a scope button, the desired depth of field for observation can be optimized to either the near field or normal field.
Phone：+86-21-54286005

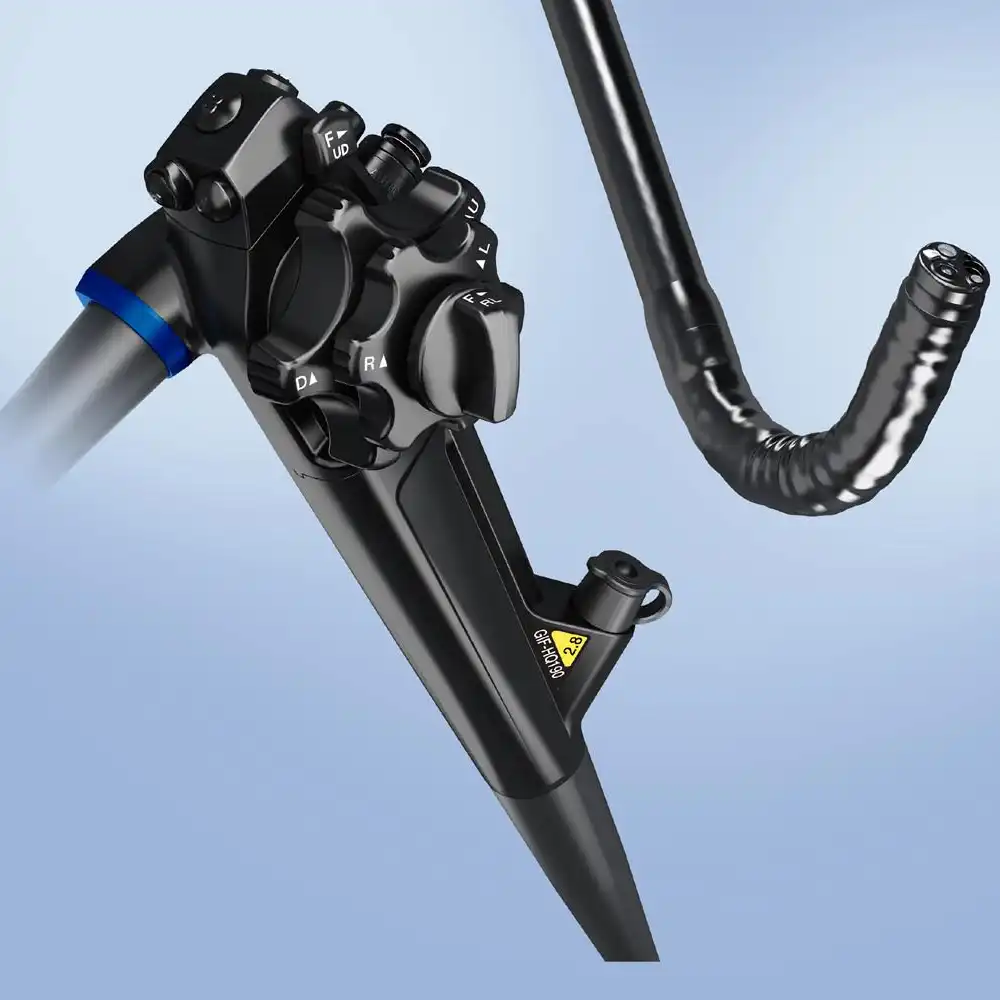

GIF-HQ190_Brochure_EN
Amazing image quality for upper GI endoscopy
Dual Focus
Dual focus, a unique OLYMPUS optical innovation, allows the user to select from two focus settings. With the simple push of a scope button, the desired depth of field for observation can be optimized to either the near field or normal field.
Normal focus mode Near focus mode
Enhanced Image Quality
A new level of resolving power is achieved thanks to a new optical system. Significantly less halation and noise is visible on screen. And the pre-freeze function automatically selects the sharpest still images.
NBI (Narrow Band Imaging)
NBI in EVIS EXERA III 190 Series scopes provides twice the viewable distance of EVIS EXERA II 180 Series scopes and offers much greater contrast between blood vessels and mucosa. The greatly improved performance of NBI opens up exciting new clinical applications and reinforces NBI’s position as the standard of care for GI endoscopy
White Light NBI
Water Jet
EVIS EXERA III 190 Series scopes’ forward water jet function is standard on all routine gastroscopes. This technology improves procedures and treatment.
Waterproof One-touch Connector
A new connector design minimizes the effort required for setup prior to and in between cases. In addition, it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.
| Model |
GIF-HQ190 |
|
| Optical System | Field of view |
Normal 140ºNear 140º |
| Direction of view | Forward viewing | |
| Depth of field | Normal 5-100 mm Near 2-6 mm |
|
| Insertion Section | Distal end outer diameter |
9.9mm |
| Insertion tube outer diameter |
9.9mm |
|
| Working length |
1030mm |
|
| Instrument Channel | Channel inner diameter |
2.8mm |
| Minimum visible distance | 3.0 mm from the distal end | |
| Bending Section | Angulation range | Up 210º Down 90º Right 100º Left 100º |
| Total Length |
1350mm |
|
| Compatible EVIS EXERA System |
Video System Center OLYMPUS CV-190 Xenon Light Source OLYMPUS CLV-190 |
|
