Olympus GIF-H190 Video Gastroscope

HDTV image quality delivers high-defi nition observation capabilities, even in a new, slimmer scope design.

Phone：+86-21-54286005

Resources

GIF-H190_Brochure_EN

Overview Specifications Dimensions

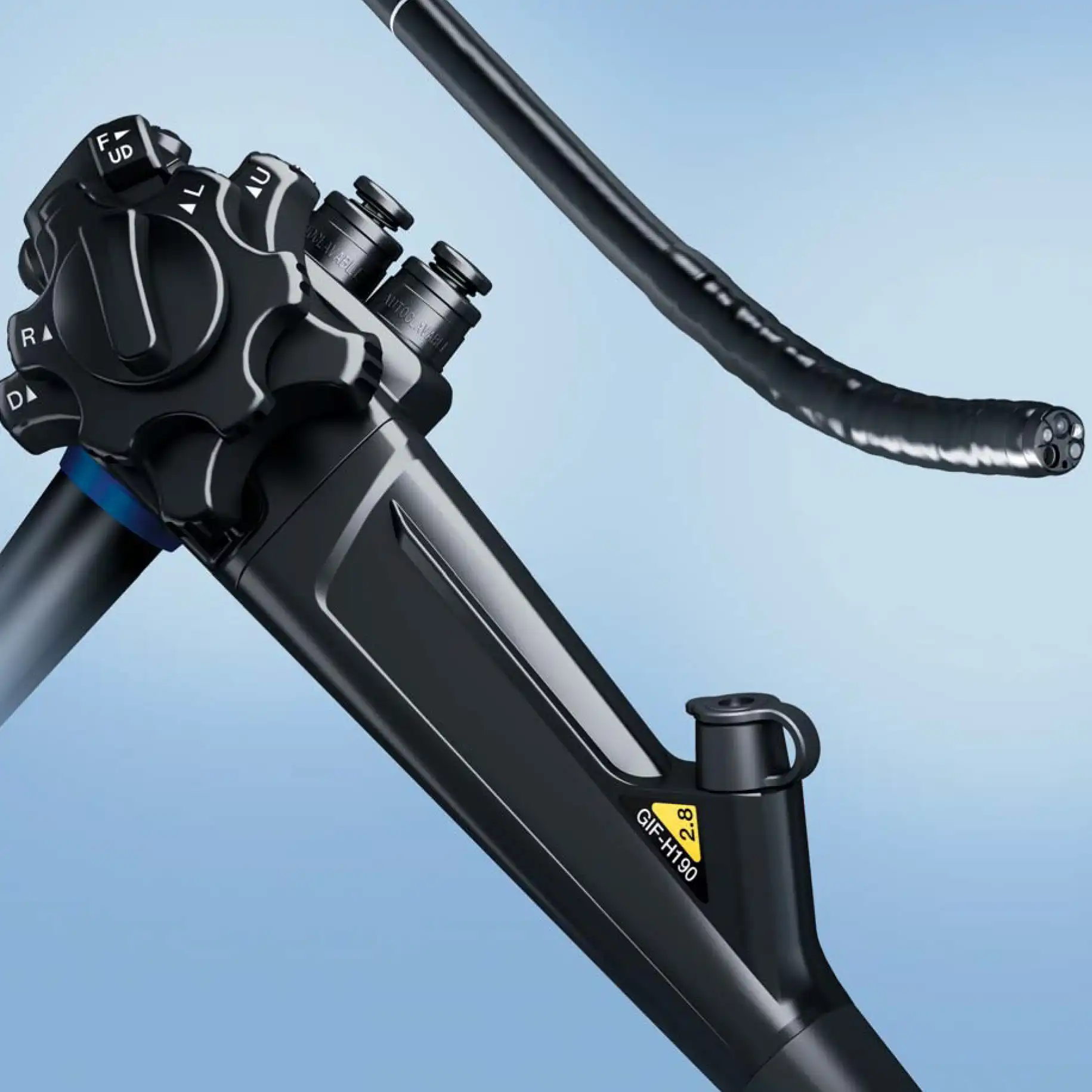

GIF-H190 EVIS EXERA III Videogastroscope

Signifi cantly slimmer design with amazing HDTV clarity

Main Features

HDTV image quality delivers high-defi nition observation capabilities, even in a new, slimmer scope design.

HDTV

NBI (Narrow Band Imaging)
NBI in EVIS EXERA III 190 Series scopes provides twice the viewable distance of EVIS EXERA II 180 Series scopes and offers much greater contrast between blood vessels and mucosa. The greatly improved performance of NBI opens up exciting new clinical applications and reinforces NBI’s position as the standard of care for GI endoscopy.

NBI

Water Jet
EVIS EXERA III 190 Series scopes’ forward water jet function is standard on all routine gastroscopes. This technology improves procedures and treatment.

Water-Jet

Waterproof One-touch Connector
A new connector design minimizes the effort required for setup prior to and in between cases. In addition, it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.

One-touch Connector

Model		GIF-H190
Optical System	Field of view	140°
	Direction of view	Forward viewing
	Depth of fi eld	2-100 mm
Insertion Section	Distal end outer diameter	9.2mm
	Insertion tube outer diameter	9.2
	Working length	1030mm
Instrument Channel	Channel inner diameter	2.8mm
Instrument Channel	Minimum visible distance	3.0 mm from the distal end
Bending Section	Angulation range	Up 210º Down 90º Right 100º Left 100º
Total Length		1350mm
Compatible EVIS EXERA System		Video System Center OLYMPUS CV-190 Xenon Light Source OLYMPUS CLV-190
