The 5.4 mm outer diameter of the distal end eases insertion.The shape of the scope tip is carefully formed for smooth removal, which further reduces patient discomfort.
Phone：+86-21-54286005

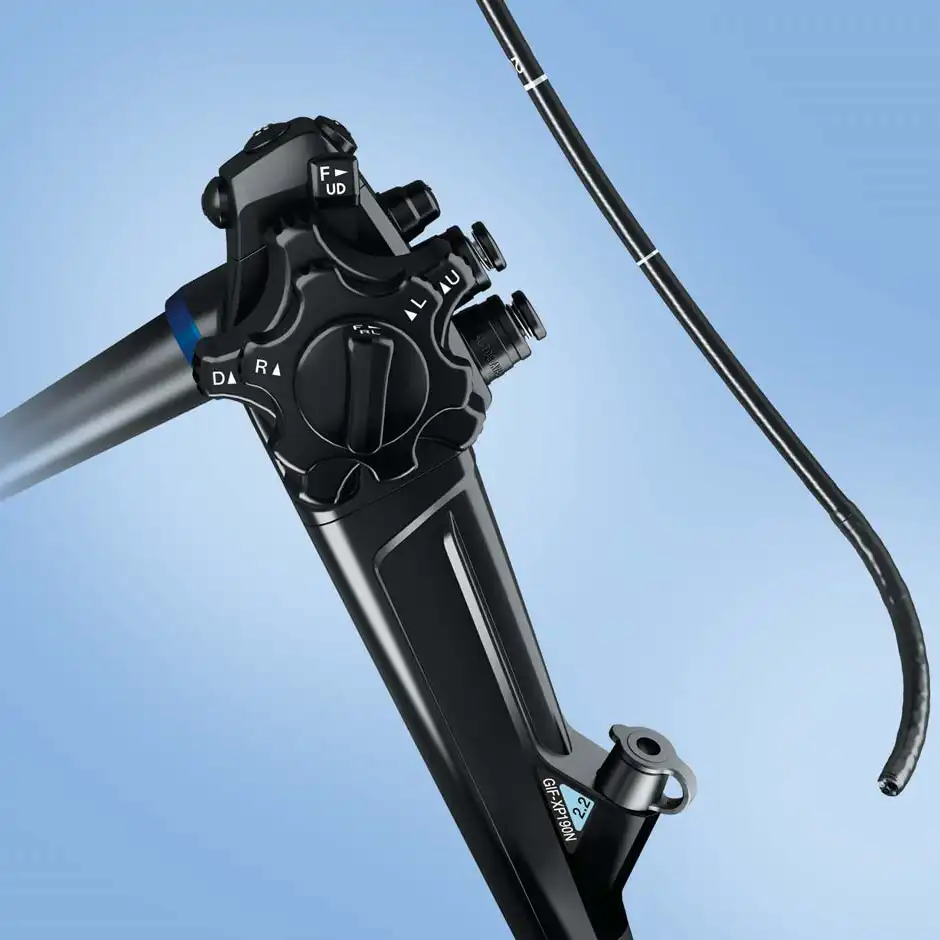

GIF-XP190N_Brochure_EN
Ultra-slim design with electrosurgery compatibility and outstanding image quality
Ultra-slim Design
The 5.4 mm outer diameter of the distal end eases insertion.The shape of the scope tip is carefully formed for smooth removal, which further reduces patient discomfort.
Advanced Image Clarity
This scope delivers superior image quality, compared to conventional models. Its two light guides help to achieve ample brightness for precise diagnosis. The two guides also reduce shadows during the use of endotherapy devices.
White Light NBI
Advanced Suction Capability
The increase in channel size to 2.2 mm increases suction volume compared to conventional scopes with a 2.0 mm channel.
Wide Viewing Angle
The viewing angle of this ultra-slim scope has been increased to 140 degrees, matching the wide fi eld of vision of larger gastroscopes even in restricted spaces.
Waterproof One-touch Connector
A new connector design minimizes the effort required for setup prior to and in between cases. In addition, it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.
| Model |
GIF-XP190N |
|
| Optical System | Field of view |
140° |
| Direction of view | Forward viewing | |
| Depth of fi eld |
3-100mm |
|
| Insertion Section | Distal end outer diameter |
5.4mm |
| Insertion tube outer diameter |
5.8mm |
|
| Working length |
1100mm |
|
| Instrument Channel | Channel inner diameter |
2.2mm |
| Minimum visible distance | 3.0 mm from the distal end | |
| Bending Section | Angulation range | Up 210º Down 90º Right 100º Left 100º |
| Total Length |
1420mm |
|
| Compatible EVIS EXERA System |
Video System Center OLYMPUS CV-190 Xenon Light Source OLYMPUS CLV-190 |
|
