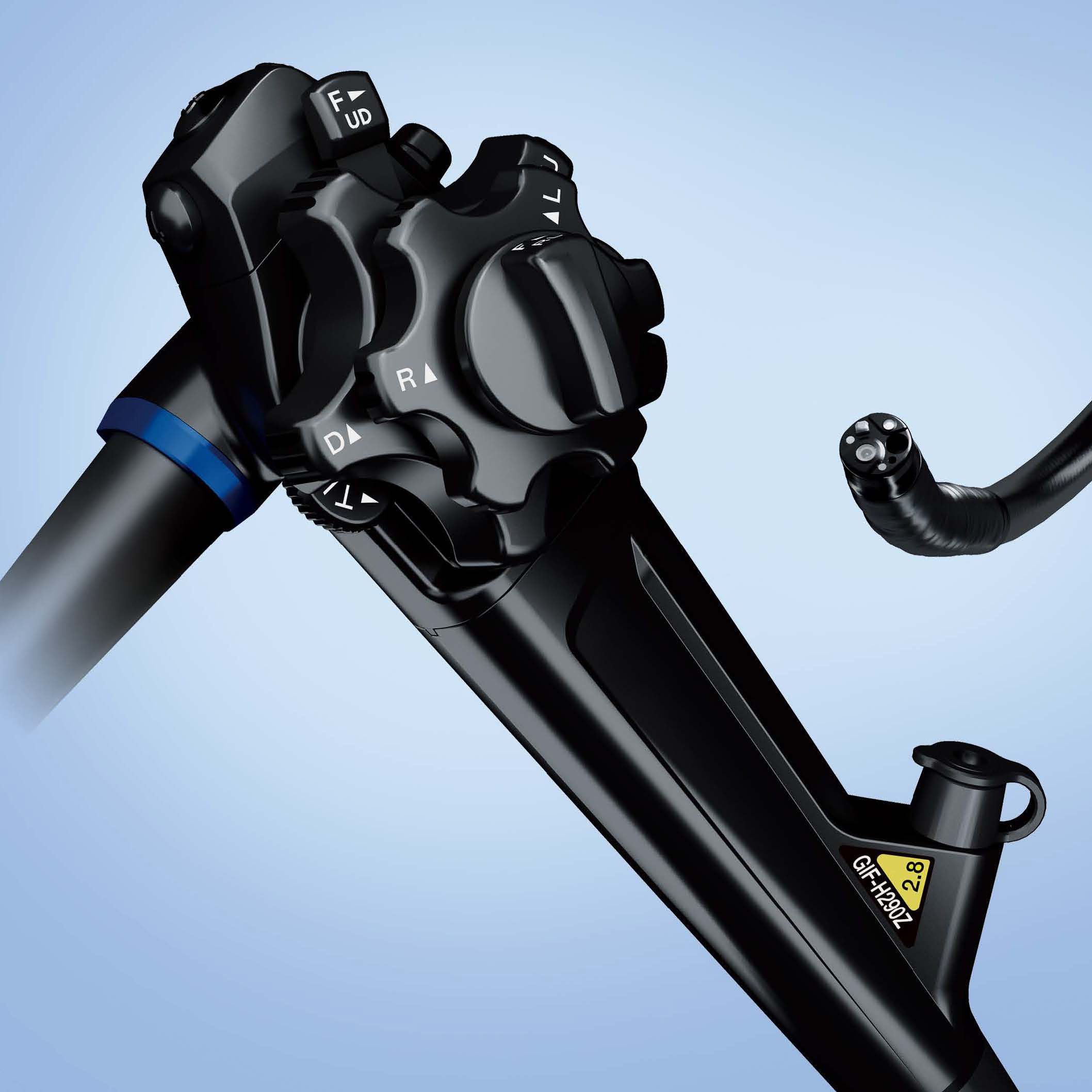

Olympus GIF-H290Z Diagnostic Video Gastroscope

This scope magnifies images by 85x, with its HDTV image quality delivering close views of the mucosal surface easily. In combination with the brighter NBI (Narrow Band Imaging),mucosal tissue and capillary networks are enhanced, further supporting detailed observation.

Phone：+86-21-54286005

Resources

GIF-H290Z_Brochure_EN

Overview Specifications Dimensions

EVIS LUCERA ELITE GIF-H290Z Diagnostic Videogastroscope-Optical Magnification Type

Slim scope and improved operability with optical magnification

Main Features

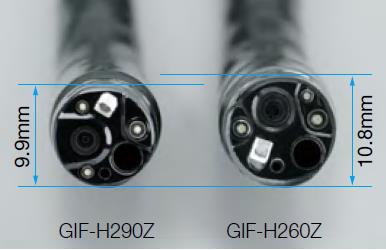

Slim Optical Magnification Scope
While adopting an optical magnification function, the GIF-H290Z achieves 9.9-mm distal end outer diameter,which is 0.9 mm slimmer than the previous GIF-H260Z^*1 scope. This helps to support smoother insertion.

Slim Optical Magnification Scope

Optical 85x Magnification
This scope magnifies images by 85x^*2, with its HDTV image quality delivering close views of the mucosal surface easily. In combination with the brighter NBI (Narrow Band Imaging),mucosal tissue and capillary networks are enhanced, further supporting detailed observation.

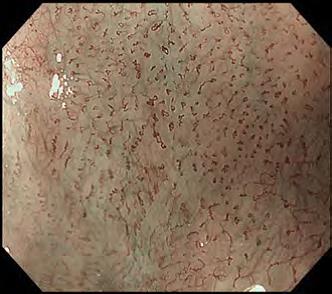

White Light Optical 85x magnification with NBI

Water Jet
A forward water jet helps to keep the mucosa clear during observation and treatment in the upper GI tract.

Water Jet

Waterproof One-touch Connector
The connector design minimizes the effort required for setup prior to and in between cases. In addition, it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.

Waterproof One-touch Connector

*1 EVIS LUCERA GASTROINTESTINAL VIDEOSCOPE OLYMPUS GIF TYPE H260Z
*2 When using HIGH DEFINITION LCD MONITOR OEV262H

Model	GIF-H290Z
Optical System	Field of view	Wide: 140˚/Tele: 95˚
	Direction of view	Forward viewing
	Depth of field	Wide: 7 to 100 mm/ Tele: 1.5 to 3 mm
Insertion Section	Distal end outer diameter	9.9mm
	Insertion tube outer diameter	9.6mm
	Working length	1030mm
Instrument Channel	Channel inner diameter	2.8mm
Instrument Channel	Minimum visible distance	3.0 mm from the distal end
Bending Section	Angulation range	Up 210º/Down 90º/ Right 100º/Left 100º
Total Length		1350mm
Compatible System	EVIS LUCERA ELITE VIDEO SYSTEM CENTER OLYMPUS CV-290 EVIS LUCERA ELITE XENON LIGHT SOURCE OLYMPUS CLV-290SL, CLV-290
