Olympus CF-H190L/I Video Colonoscope

The CF-H190 features HDTV. Its close-up capability makes maximum use of a wide 170° angle of view and high-defi nition NBI images to support detailed observation. What’s more, the distal end diameter is just as slim as the previous model.

Phone：+86-21-54286005

Resources

CF-H190L/I_Brochure_EN

Overview Specifications Dimensions

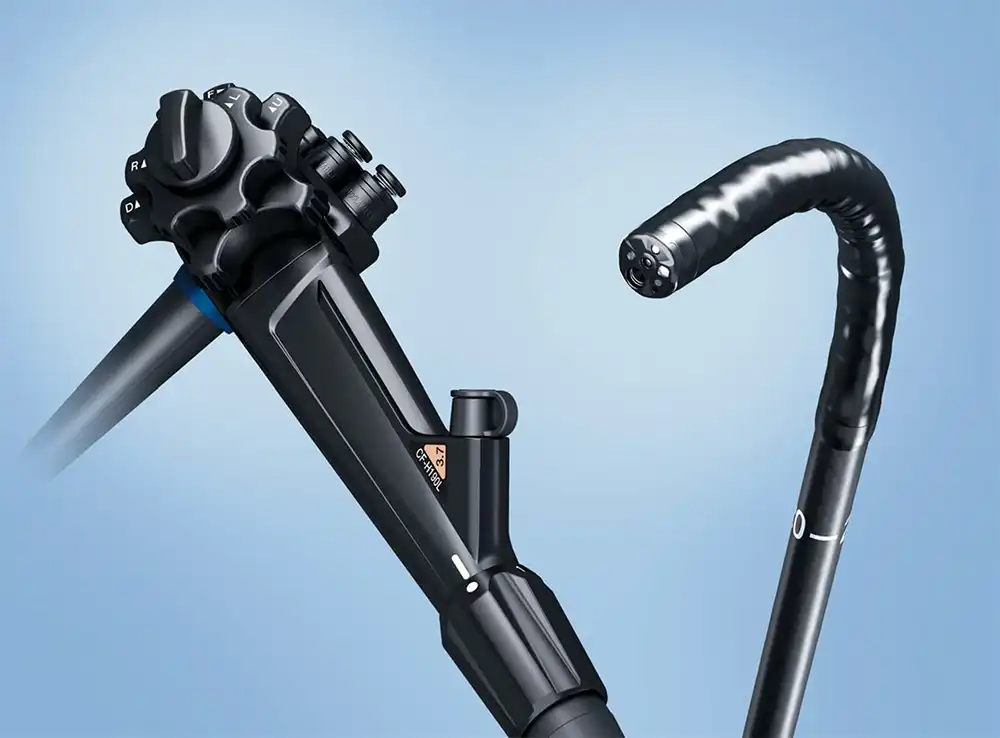

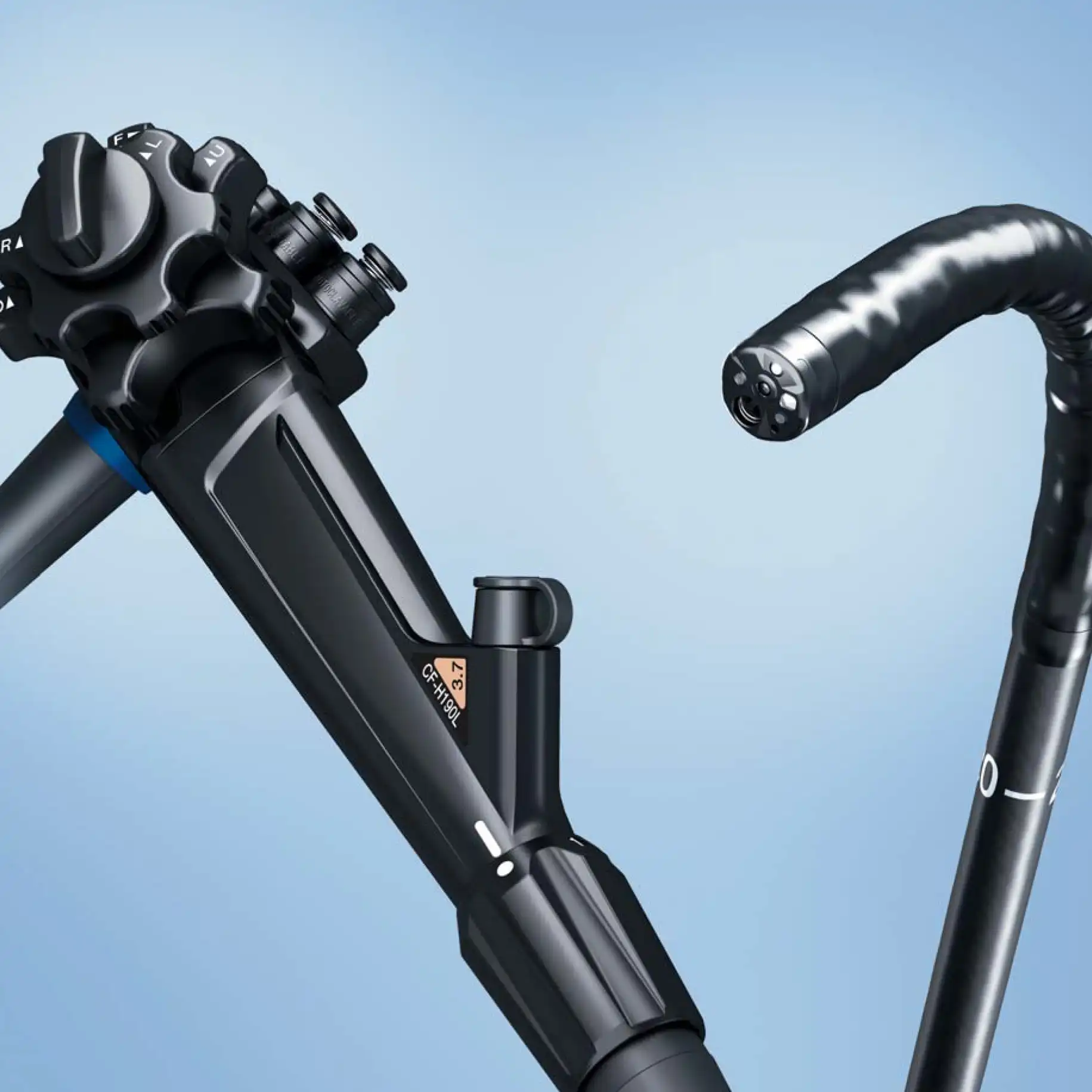

EVIS EXERA III CF-H190L/I Video Colonoscope

CF-H190L/I

Main Features

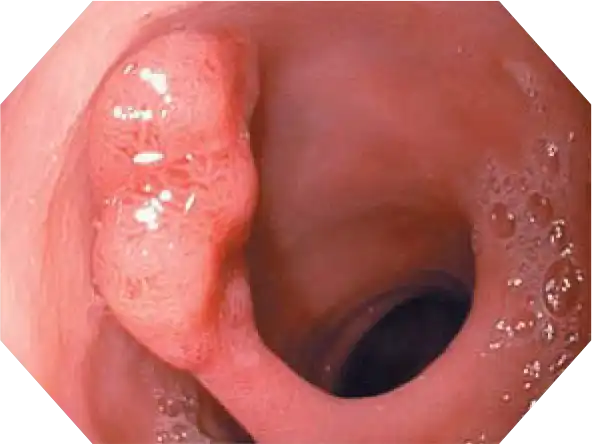

HDTV Image Quality
The CF-H190 features HDTV. Its close-up capability makes maximum use of a wide 170° angle of view and high-defi nition NBI images to support detailed observation. What’s more, the distal end diameter is just as slim as the previous model.

HDTV Image Quality

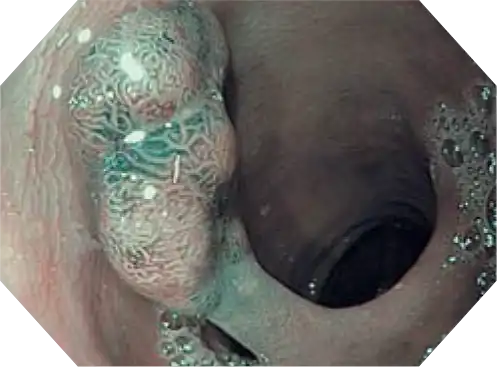

NBI (Narrow Band Imaging)

NBI in EVIS EXERA III 190 Series scopes provides twice the viewable distance of EVIS EXERAII 180 Series scopes and offers much greater contrast between blood vessels and mucosa. The greatly improved performance of NBI opens up exciting new clinical applications and reinforces NBI’s position as the standard of care for GI endoscopy.

NBI

RIT (Responsive Insertion Technology)
RIT combines three proprietary insertion tube technologies:HFT (High Force Transmission), PB (Passive Bending) and variable stiffness. These technologies are designed to facilitate complete colonoscopies by improving scope handling,insertability and ergonomics. PB helps EVIS EXERA III 190 Series scopes move through acute bends in the colon. HFT provides improved operator control for both pushing and twisting maneuvers. Variable stiffness allows the physician to adjust the rigidity of OLYMPUS scopes as needed, by simply turning an adjustment ring on the scope control section.

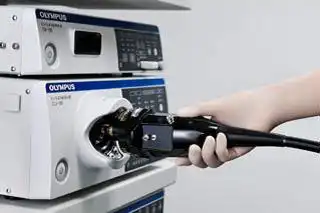

Waterproof One-touch Connector
A new connector design minimizes the effort required for setup prior to and in between cases. In addition, it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.

Waterproof One-touch Connector

Model	CF-H190L/I
Optical System	Field of view	170º
	Direction of view	Forward viewing
	Depth of field	2-100 mm
Insertion Section	Distal end outer diameter	13.2mm
	Insertion tube outer diameter	12.8mm
	Working length	L: 1680 mm I: 1330 mm
Instrument Channel	Channel inner diameter	3.7mm
Instrument Channel	Minimum visible distance	3.0 mm from the distal end
Bending Section	Angulation range	Up 180º Down 180º Right 160º Left 160º
Total Length		L: 2005 mm I: 1655 mm
Compatible EVIS EXERA System		Video System Center OLYMPUS CV-190 Xenon Light Source OLYMPUS CLV-190
