Olympus OTV-S300 Video System Center

The VISERA ELITE II video system center combines the LED light source and the processor in one box. It defines a new means of simplicity in the OR. One single cable for 3D observation and an intuitive touch panel for control, with no interruption of the procedure.

Phone：+86-21-54286005

Resources

OTV-S300_Brochure_EN

Overview Specifications Dimensions

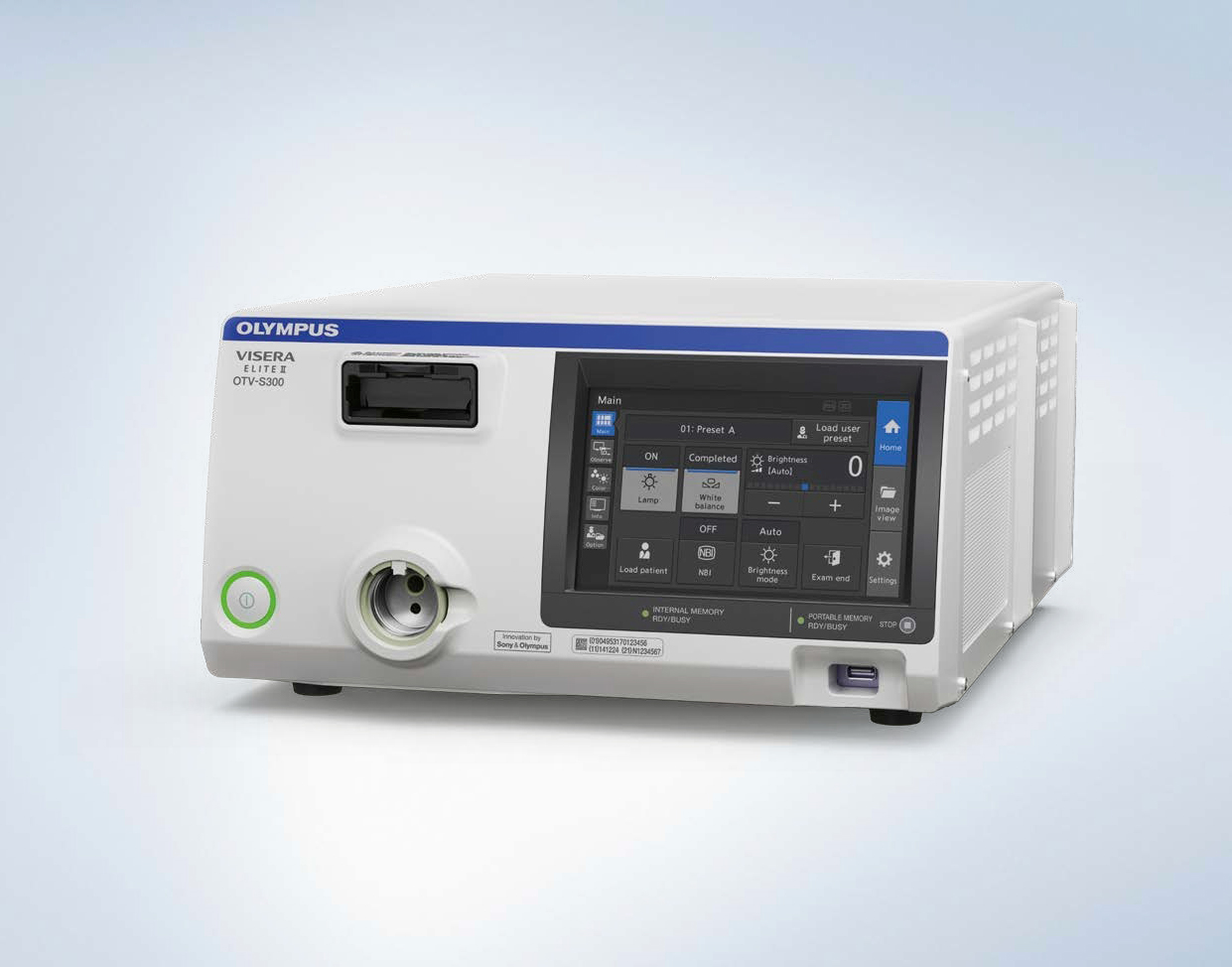

Olympus VISERA ELITE II OTV-S300 video system center

With NBI and IR observation in 2D and 3D Processor

All-in-One 2D/3D Processor and Light Source

Capable of both 2D and 3D observation
Compact system for simplified work flow

LCD Touch Panel

Intuitive handling and setup
Presets allow easy preparation and maintenance

LED Light Source

Reduction in running costs thanks to the long lifetime of the LEDs
Excellent natural color reproduction with the combination of an enhanced imaging process

Special Light Observation

NBI and two modes of IR observation

OTV-S300

Power Supply	Rated voltage	110–240 V AC; within ±10%
	Rated frequency	50/60 Hz; within ±1 Hz
	Rated input	400 VA
Size	Dimensions (maximum)	383 (W) × 199 (H) × 506 (D) mm
	Weight	19.3 kg
Observation	Analog signal output	VBS composite and Y/C; simultaneous outputs possible
	2D digital signal output	3G-SDI (SMPTE424M), HD-SDI (SMPTE292M), DVI (WUXGA,1080 pixels, or SXGA can be selected)
	3D digital signal output	3G-SDI Level B (SMPTE424M), DVI-D (WUXGA or 1080 pixels can be selected, and SIDE BY SIDE or LINE BY LINE can be selected)
	Record output signal	Recording format of the video signal output to the video recorder can be switched.
		Video signal	Select from “3G-SDI” or “HD-SDI”
		HD-SDI recording format	Select from “Same as monitor output”, “Always 2D”, and “Always 3D”
		3G-SDI recording format	Select from “Always 3D” and “Same as monitor output”
	Electronic zoom	The image enlargement level can be selected
		2D	3 modes (1.0×, 1.2×, 1.5×)
		3D	2 modes (1.0×, 1.2×)
	Optical-digital observation	The optical-digital observation can be performed. The endoscope compatible with the optical-digital observation is required.
		NBI observation	This observation mode uses narrow-band light
		IR observation	This observation mode uses infrared light
Documentation	Remote control	The following ancillary equipment can be controlled (specified models only): Portable memory Video recorder Video printer Image filing system
	Recording format and number of recorded images in internal memory	TIFF: no compression	Approx. 120 images
		JPEG (1/5): Approx. 1/5 compression	Approx. 636 images
		JPEG (1/10): Approx. 1/10 compression	Approx. 1108 images
		These are the numbers of the recorded images when both HDTV and SDTV images are recorded. These numbers vary depending on the images
Illumination	Examination lamp	LED
	Cooling	Forced-air cooling
	Providing maximum light intensity	Less than 5.64W (approximately same as Olympus light source that is mounted xenon short-arc lamp 300 W)
	Observation mode	WLI or NBI observation
		IR observation (when connected to CLV-S200-IR)
Automatic Brightness Adjustment	Automatic brightness adjustment method	LED drive current control
	Automatic exposure	17 steps
	Brightness mode	Auto
		Manual
Classification(Medical Electrical Equipment)	Type of protection against electric shock	Class I
	Degree of protection against electric shock of applied part	Depends on applied part. Also refer to applied part (camera head or videoscope).
	Degree of protection against explosion	The video system center should be kept away from flammable gases
