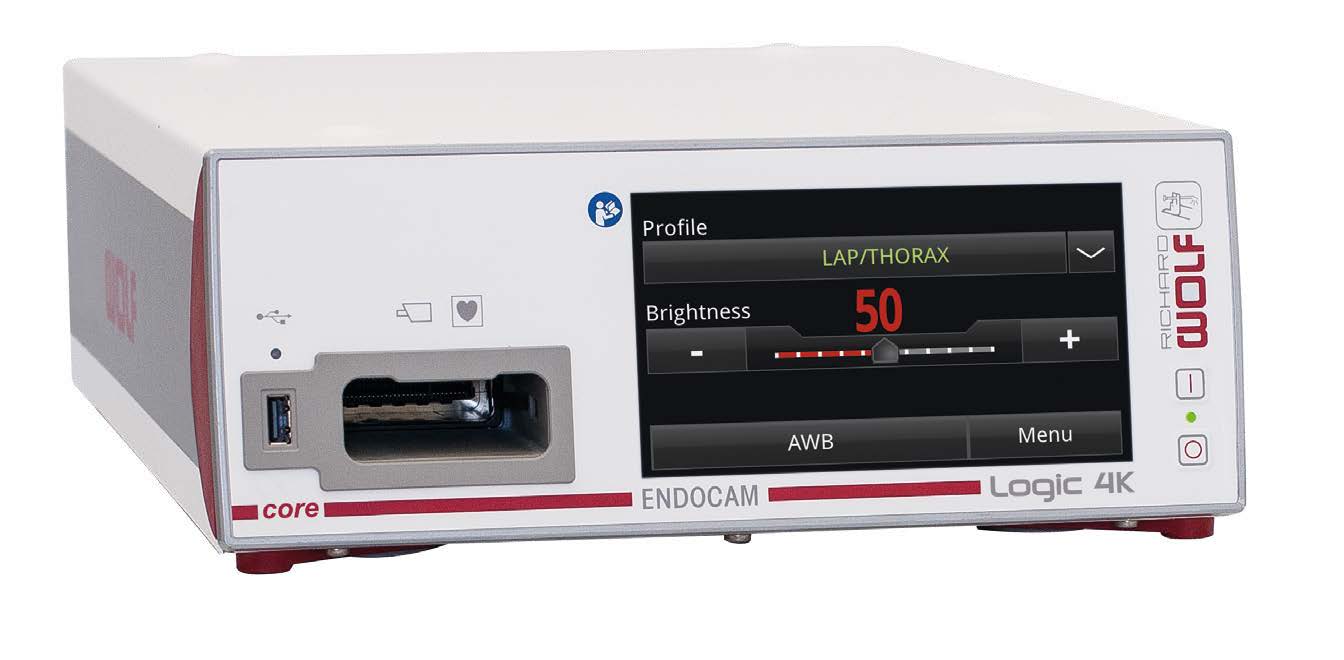

R. Wolf 5525301 ENDOCAM logic 4K Camera controller

ENDOCAM logic 4K Camera controller 5525301

Phone：+86-21-54286005

Resources

ENDOCAM logic 4K Camera controller_Brochure_EN

Overview Specifications Dimensions

ENDOCAM logic 4K

Camera controller

5525301

4K resolution with either
3840 x 2160 pixels or 4096 x 2160 pixels
Continuous processing of captured 4K imaging data with
4K resolution
Optimally matched system consisting of telescopes, lenses, camera head, camera controller, light source, light cables and monitors
All available light sources and applied parts of the ENDOCAM Logic HD are compatible with the ENDOCAM Logic 4K Controller and can continue to be used
USB port on camera controller for directly saving HD images and HD videos to USB storage media
Including "Special Imaging Modes" (SIM) for enhanced tissue differentiation
Extremely easy to use thanks to pre-programming of clinically-devised presets for various disciplines, effortless saving of personal settings
Patient data can be entered via a USB keyboard
Direct printing possible
Future-proof investment, updates can be imported at any time via the USB port
Central component of the core nova OP Integration
Dialog function:
1.Control of connected, dialog-capable ENDOLIGHT light source for optimum illumination with maximum protection for the endoscope
2.Monitor display of major parameters for further

ENDOCAM Logic 4K camera controller
complete ............................................................................................. 55253011
Comprising:
1x ENDOCAM Logic 4K camera controller ............................. 5525301
1x hand-held remote control ...................................................... 5525401
1x USB flash memory 32GB ......................................................... 72321829
1x HDMI/HDMI cable, lockable, 3.0 m .................................... 103847
1x power cable ................................................................................ 2440.03

Camera controller	5525301
Device properties
Type of controls	Touchscreen
Max. video signal resolution	4096 x 2160 pixels
White balance, color temperature range	2300 K to 7000 K
Noise level	34 dB to 48 dB max.
Digital zoom	1.5x max.
Individually configurable profiles	at least 5 profiles
Brightness control	Automatic shutter control + automatic gain control
Image format of saved pictures / videos	JPEG, TIFF (max. 1920 x 1200) / MPEG4 (max. 1920 x 1080/60P)
Operating conditions	+10°C to +40°C, 30% to 75% rel. humidity, atmospheric pressure 700 hPa to 1060 hPa
Operating mode	Continuous operation
Equipment
IP rating	IP20
Cooling method	Controlled fan
Power supply
Mains + frequency	100-240 VAC, 50/60 Hz
Power consumption	120 VA
Current rating max.	1.2 A
Regulatory standards
Safety	US/ CA: UL 2601-1 / CSA C22.2 NO.601.1, EU: EN 60601
EMC	EN 60601-1-2 / IEC 601-1-2
Medical device class	Class 1
Classification of applied part	CF
Interfaces
Video outputs	2x HDMI 4K, 2x HDMI HD, 2x 3G-HD-SDI
PiP input	1x 3G-HD-SDI
Remote output	2 x 3.5 mm jack, stereo
USB port (on front panel, for external storage media)	USB 2.0 (FAT32/NTFS formatting)
Resolution (HDMI output)	Adjustable in the user menu
	1280 x 1024/60P (5:4) 1920 x 1080/60P (16:9) 1920 x 1200/60P (16:10)		Only for HDMI 4K: 4K 3840 x 2160/60P (16:9) 4K 4096 x 2160/60P (17:9)
Resolution (3G-HD-SDI output)	Adjustable in the user menu
	1280 x 720/50P (16:9)	1920 x 1080/50I (16:9)	1920 x 1080/50P (16:9)
	1280 x 720/50P (16:9)	1920 x 1080/50I (16:9)	1920 x 1080/60P (16:9)
Resolution of picture-in-picture input (3G-SDI)	1280 x 720/50P (16:9)	720 x 486/60I (16:9)	1920 x 1080/50P (16:9)	1920 x 1080/50I (16:9)
	1280 x 720/60P (16:9)	720 x 576/50I (16:9)	1920 x 1080/60P (16:9)	1920 x 1080/60I (16:9)
Dimensions and weights
Weight	6.2 kg
Dimensions (W x H x D)	300 x 120 x 416 mm
